RADWAG AS series User Manual

- 53 -

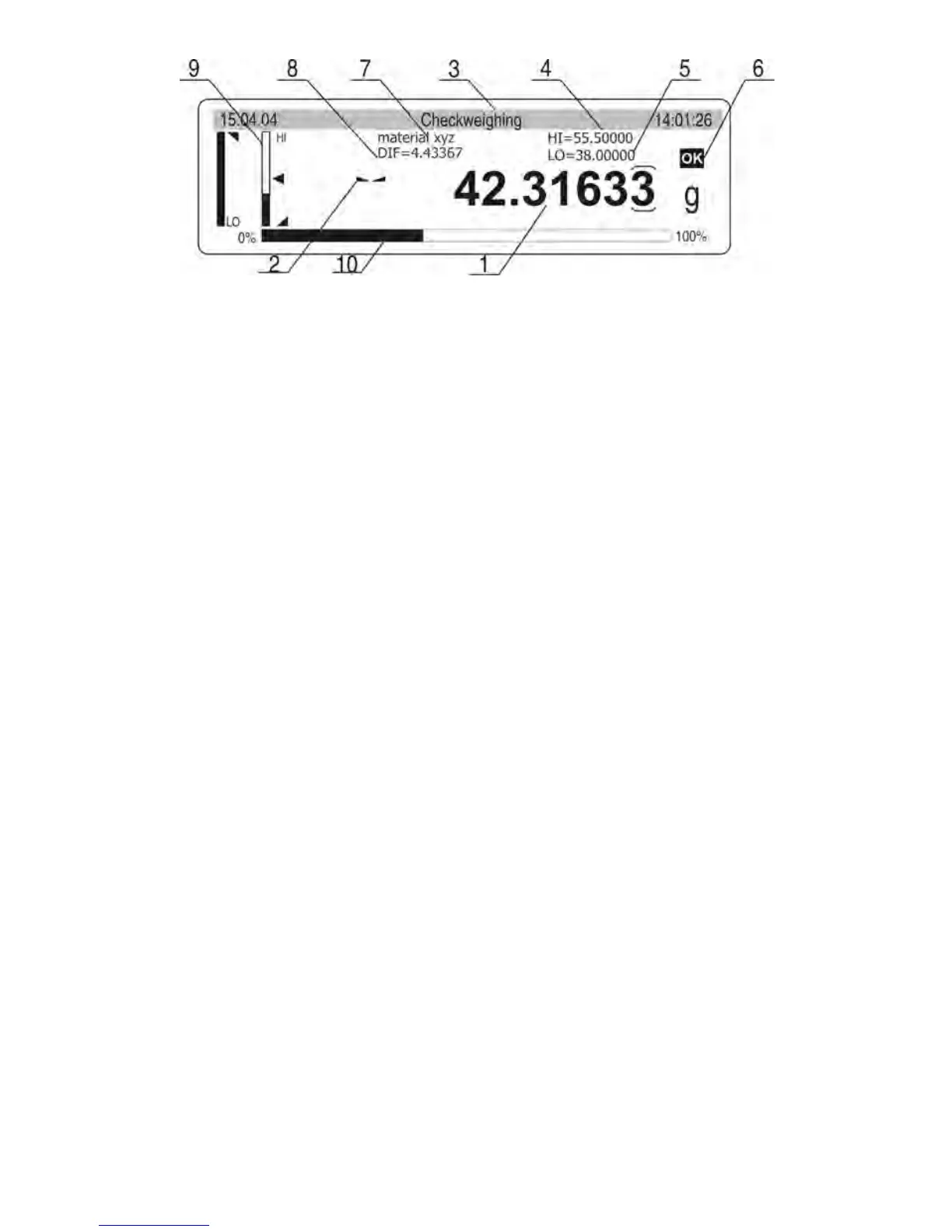

Fig. 40. Checkweighing – display content
1 – measurement result
2 – pictogram of stable measurement result
3 – working mode name
4 – the value of HI threshold (limit)
5 – the value of LO threshold (limit)
6 – a pictogram indicating the weighing range of currently weighed sample
(LO – OK.- HI)
7 – name of a product saved in the database of thresholds
8 – difference between the measurement result and the center of set tolerance field
9 – a pictogram indicating the current “place” of weighed sample in relation to set
checkweighing thresholds (limits)
10 – a bargraph indicating the range of applied measuring range of a balance.
Selecting other product from the database of thresholds (limits)
− While in checkweighing mode press SETUP key
− A message box is opened on the display. Go to the database of thresholds (limits)
and select another record from the database or set other HI and LO thresholds
values if the database is disabled)

RADWAG AS series Specifications

General

Display	LCD with backlight
Maximum Capacity	Varies by model
Readability	Varies by model
Pan Size	Varies by model
Calibration	Internal or external, depending on model
Stabilization Time	≤ 3 seconds
Interface	RS232, USB
Repeatability (Standard deviation)	Varies by model
Linearity	Varies by model
Net Weight	Varies by model
Protection Class	IP 43
