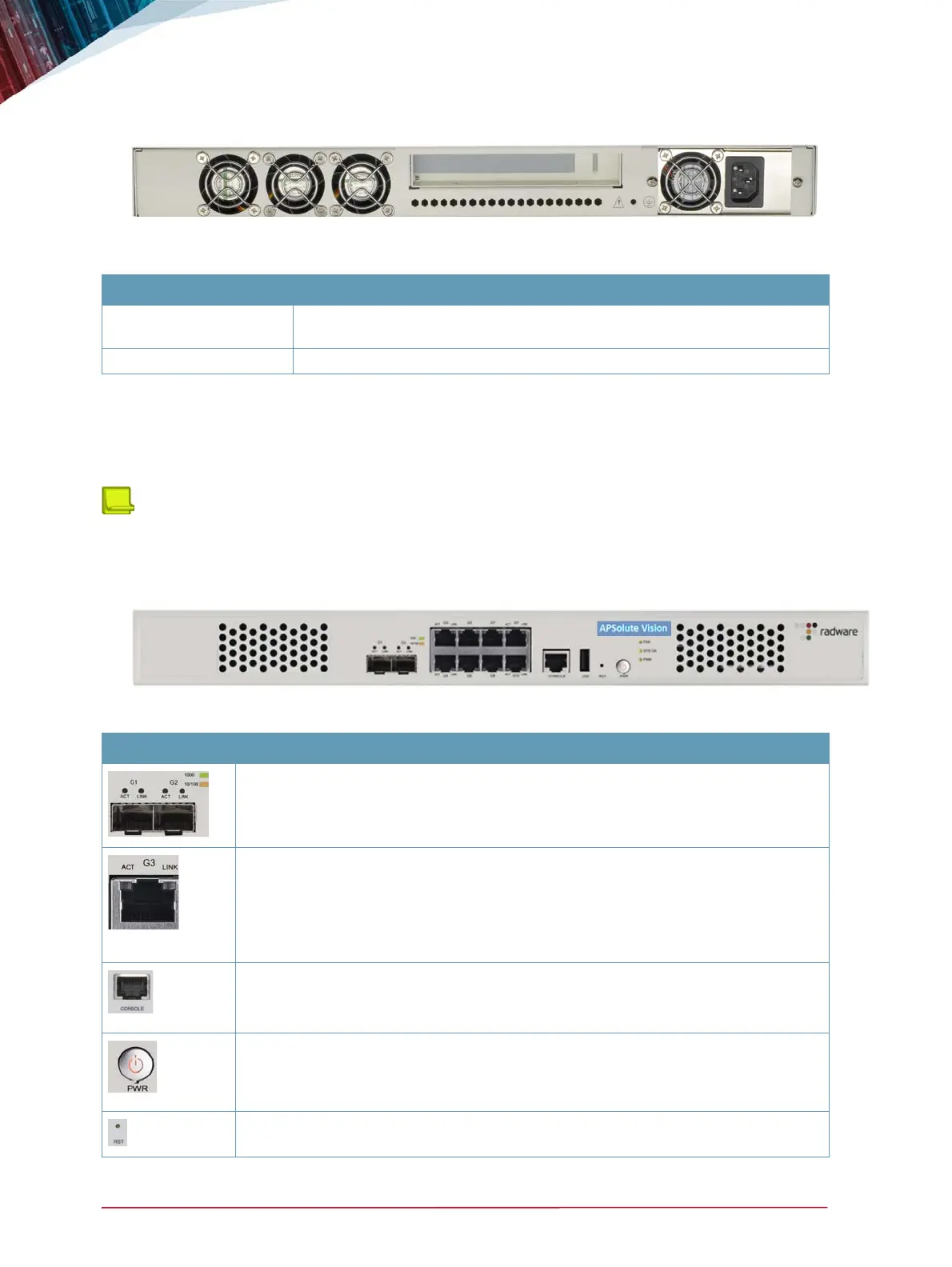

Figure 20: APSolute Vision ODS-VL Platform Back Panel
The APSolute Vision Server ODS-VL2 Physical Platform
This section describes the APSolute Vision server ODS-VL2 physical platform.
Note: For more information on the APSolute Vision platform and the APSolute Vision server and
client software, see the APSolute Vision User Guide.
Figure 21: APSolute Vision ODS-VL2 Platform Front Panel
Table 2: APSolute Vision ODS-VL Platform Back Panel
Feature Description
Ground screws Screws to ground the platform chassis to the rack. 1U units have one
ground screw. Typically, 2U units have two ground screws.
Power supply socket The socket to which the power cable is connected.
Table 3: APSolute Vision ODS-VL2 Platform Front Panel
Feature Label/Description
Ports G1 and G2—not in use
Eight 1 GbE RJ-45 ports (only G3, G5, and G7 are used) for in-band
management and APSolute Vision client.
LEDs:
• ACT—Flashing indicates activity.
• LINK—Green indicates 1000 Mbit/s. Yellow indicates 10 or 100 Mbit/s.
Serial RJ-45 port for out-of-band management.
Note: Radware supplies a RJ–45 to DE-9 adapter cable to connect the console
port of the platform to a console PC.
Power button. Turns power on and off. Pressing the button for 1 to 4 seconds
causes a graceful shutdown of the system, thus preserving system integrity.
Pressing the button for more than four (4) seconds causes the hardware to
power down.
Reset button. Resets the platform.
