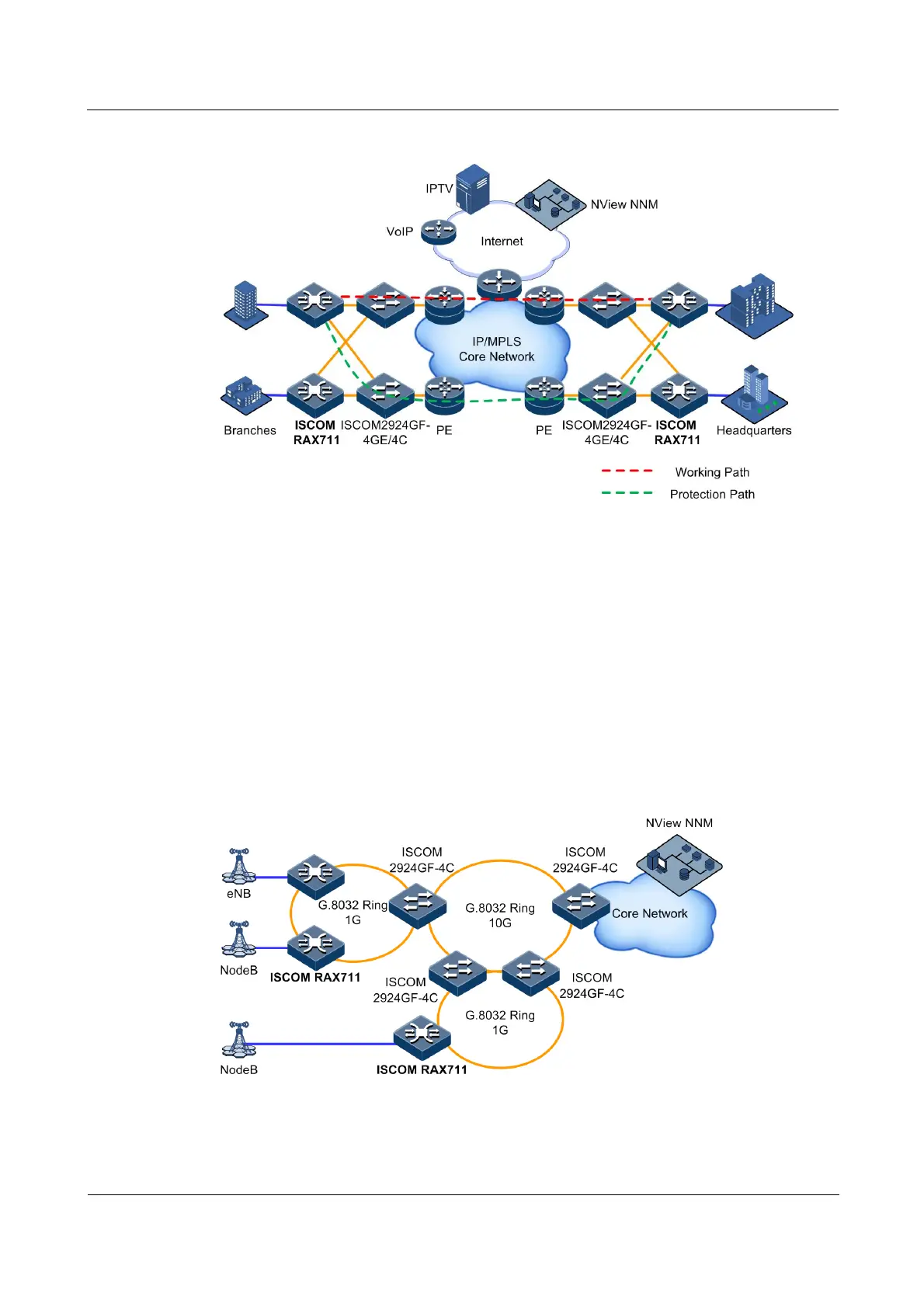

Figure 2-2 End-to-end ELPS networking
2.3 Typical ERPS networking
As shown in Figure 2-3, in MAN access application, as a remote device, the ISCOM RAX711
can network with the ISCOM2924GF-4GE/4C.
This application has the following features:

As the aggregation device, two or more ISCOM2924GF-4GE/4C devices can form a
G.8032 ring network. The APS time of the ring network is less than 50ms.

The ISCOM RAX711 and the ISCOM2924GF-4GE/4C can form a G.8032 ring network.
This guarantees reliable access for downstream users.
Figure 2-3 Ring network protection application
