Raisecom ISCOM RAX711 - Leds; Figure 3-4 DC Power Interface; Table 3-10 Parameters of AC Power Module; Table 3-11 Parameters of the DC Power Interface

Raisecom
ISCOM RAX711 (B)Product Description
Raisecom Technology Co., Ltd.
15
Table 3-10 lists parameters of the AC power module.
Table 3-10 Parameters of AC power module
Power module
Value
AC power
module
Rated input voltage
110/220 VAC
Voltage range
100–240 VAC
Frequency
50/60 Hz
Rated input current
0.44/0.22 A
Maximum input current
1 A
DC power interface
Figure 3-4 shows the DC power interface.

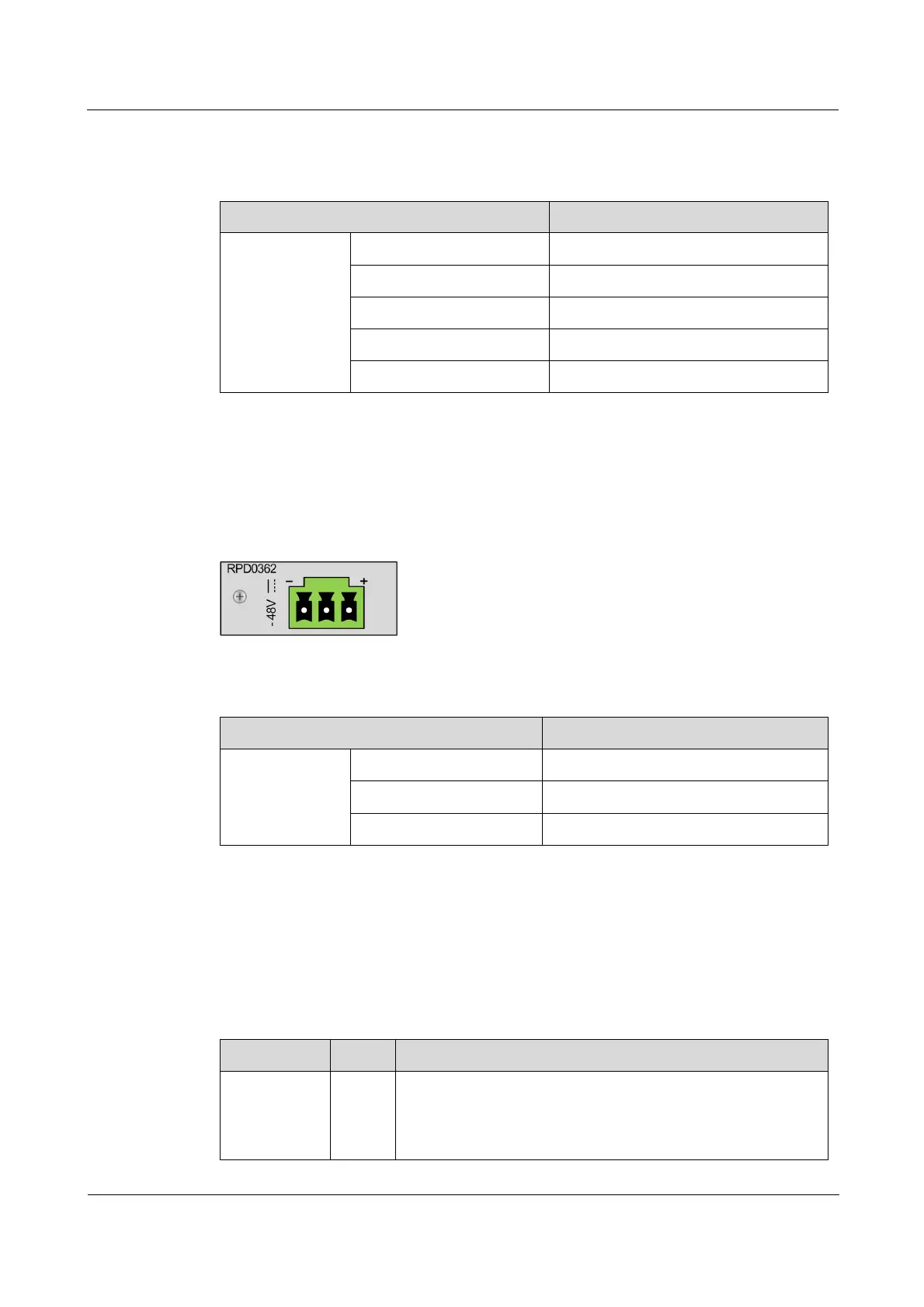

Figure 3-4 DC power interface
Table 3-11 lists parameters of the DC power interface.
Table 3-11 Parameters of the DC power interface
Power module
Value
DC power
module
Rated input voltage
-48 VDC
Voltage range
-36 to -72 VDC
Maximum input current
2 A
3.3 LEDs
Table 3-12 lists LEDs on the ISCOM RAX711.
Table 3-12 LEDs
LED
Status
Description
LNK/ACT
(0/1–1/4)
Green
Link working LED

Green: the link is properly connected.

Blinking green: the link is receiving or sending data.

Off: the link is disconnected or improperly connected.
