3 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
21
7
SNMP interface and Console interface
8
RPS, PWR, SYS, and SNMP LEDs
ISCOM2624G-4C-AC

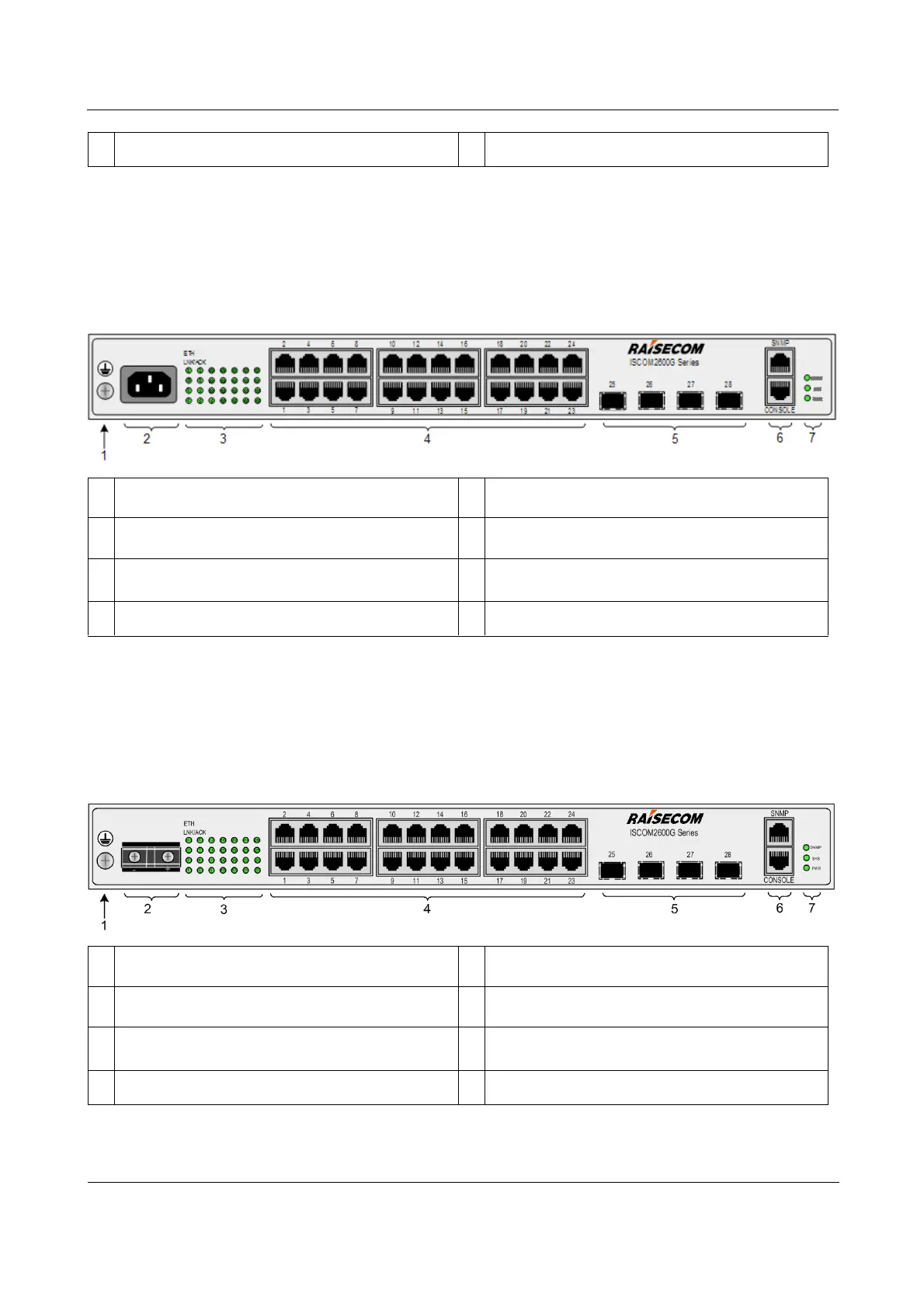

Figure 3-10 shows the front panel of the ISCOM2624G-4C-AC.
Figure 3-10 Front panel of the ISCOM2624G-4C-AC
1
Ground terminal
2
Power interface
3
Service interfaces (1–28) LEDs
4
Service downlink interfaces (1–24)
5
Service uplink interfaces (25–28)
6
SNMP interface and Console interface
7
PWR, SYS, and SNMP LEDs
ISCOM2624G-4C-DC
Figure 3-11 shows the front panel of the ISCOM2624G-4C-DC.
Figure 3-11 Front panel of the ISCOM2624G-4C-DC
1
Ground terminal
2
Power interface
3
Service interfaces (1–28) LEDs
4
Service downlink interfaces (1–24)
5
Service uplink interfaces (25–28)
6
SNMP interface and Console interface
7
PWR, SYS, and SNMP LEDs
