Inner diameter of
soldering lug
2
Inner diameter of
sheath
3
Thickness of soldering terminal
Technical specifications
Table 6-5 lists technical specifications of the ground cable.
Table 6-5 Technical specifications of ground cable
Parameter
Description
Model (recommended)
PIL-ground cable-Φ4-1m.
Conducting wire
Yellow/Green multi-strand copper-core conducting wire
(1.25 mm
2
)
Model
Protective ground round pressed terminal (M4)
Cross-sectional area of
the conducting wire
16–15AWG (1.2–1.5 mm
2
)
Length
1 m
The ground cable cannot be longer than 30 m and should be as short as possible;
otherwise, a ground bar should be used.
6.1.4 DC power cable
Introduction
The DC power cable transmits -48 VDC power to the power interface on the ISCOM2600G
series switch, and supplies power for the whole device.
Appearance
A DC power cable is composed of DC connectors and conducting wire, as shown in Figure 6-
8.

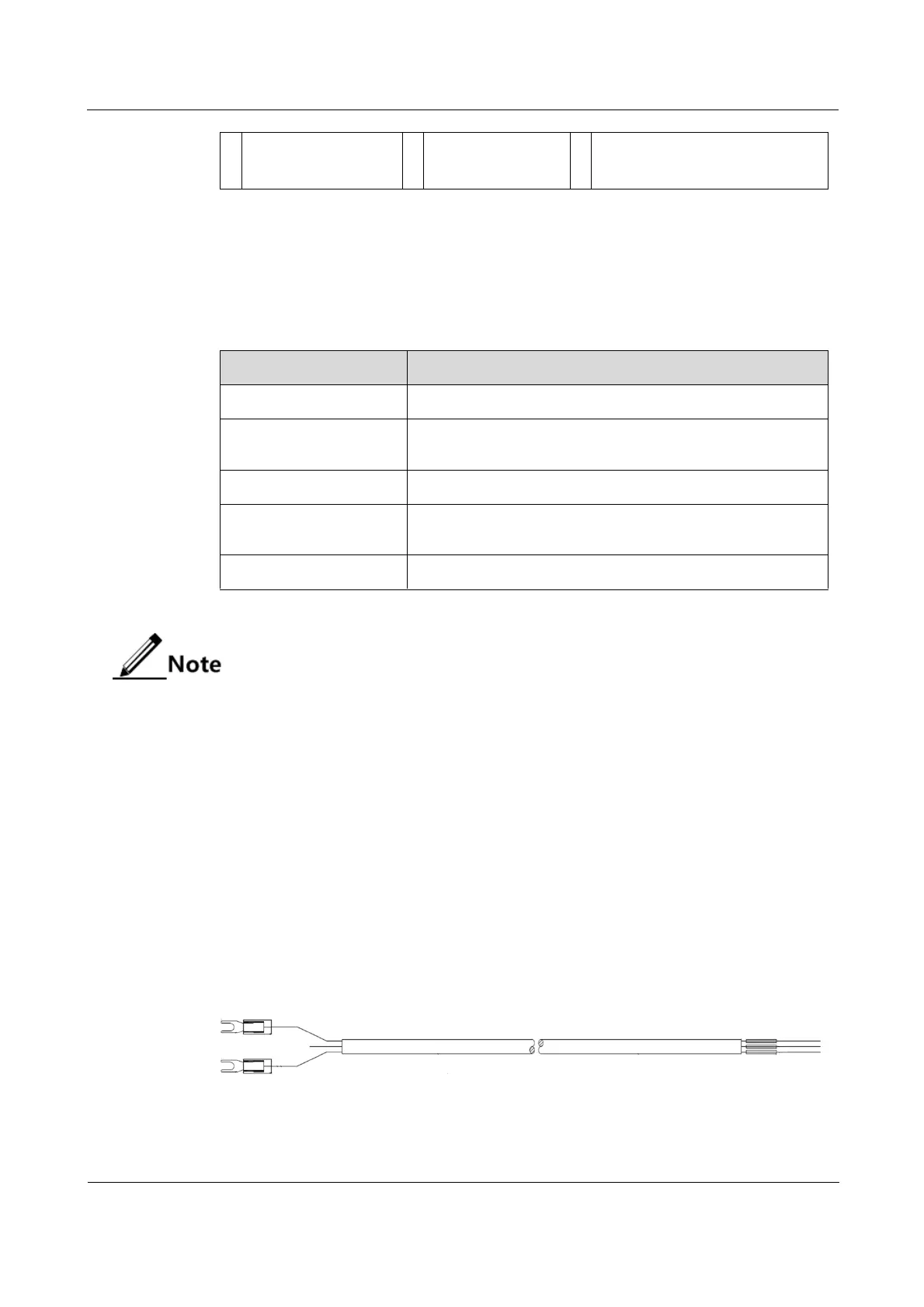

Figure 6-8 DC power cable
Technical specifications
Table 6-6 lists technical specifications of the DC power cable.
