Raisecom
ISCOM2600G (A) Series Product Description
3 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
38

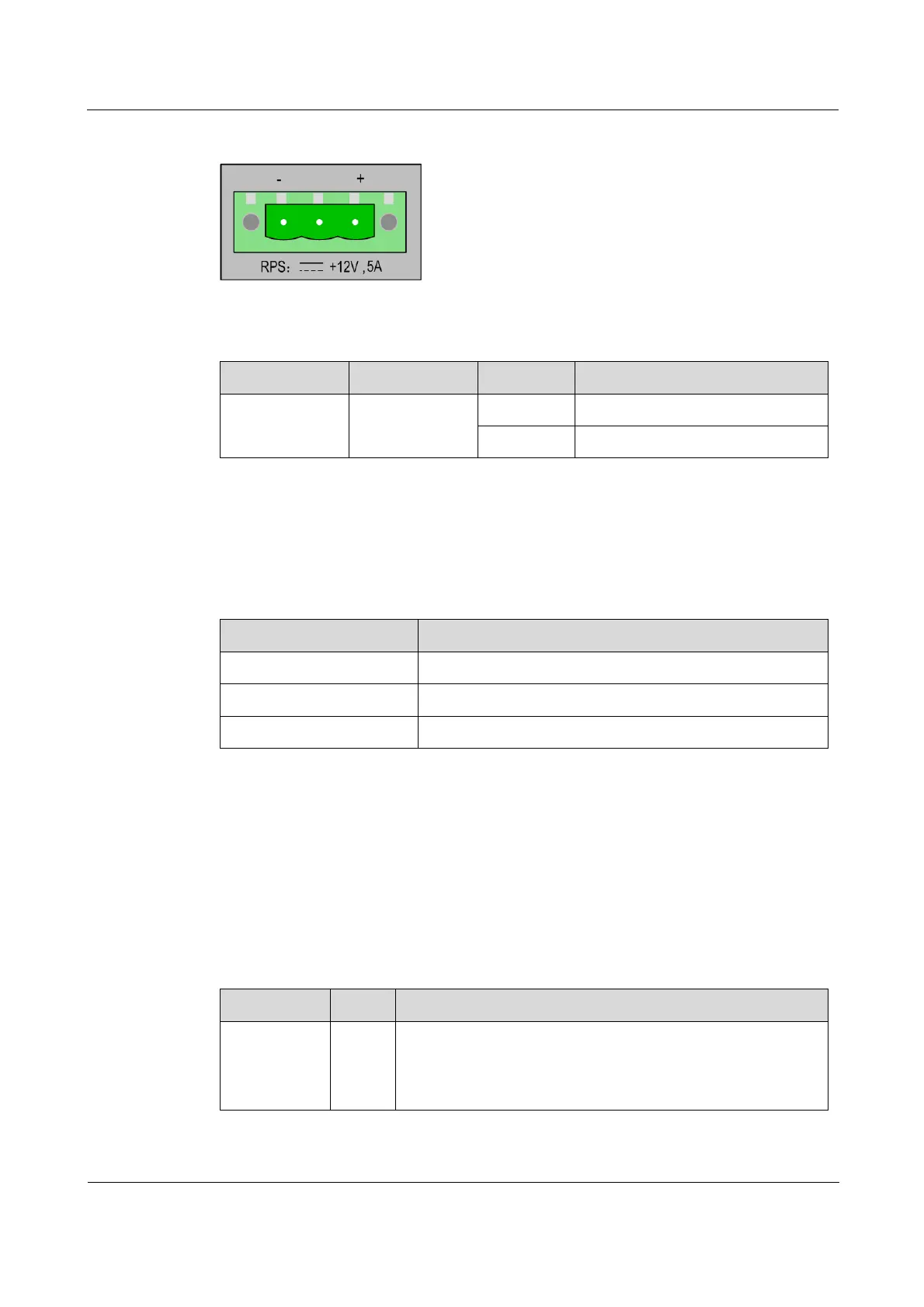

Figure 3-37 ISCOM2648G-4GE-RPS-AC power interface
Table 3-12 lists details about the RPS power interface.
Table 3-12 Details about the RPS power interface
Interface
Type
Print
Usage
RPS power
interface
3-pin Phoenix
connector
-
GND power input terminal
+
+12V power input terminal
Specifications
Table 3-13 lists parameters of the RPS power interface.
Table 3-13 Parameters of the RPS power interface
Parameter
Description
Connector type
3-pin Phoenix connector (with spaces of 5.08 mm)
Rated voltage
12 VDC
Voltage range
11.6412.36 VDC
3.4 LEDs
3.4.1 ISCOM2608G-2GE
Table 3-14 lists LEDs on the ISCOM2608G-2GE.
Table 3-14 LEDs on ISCOM2608G-2GE
LED
Status
Description
LNK/ACT
18
Green
Ethernet interface working status LED
Green: the interface is properly connected.
Blinking green: the interface is receiving or sending data.
Off: the interface is disconnected or improperly connected.
