ISCOM6820-GP (A) Installation Guide
2 Preparing for installation
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
9

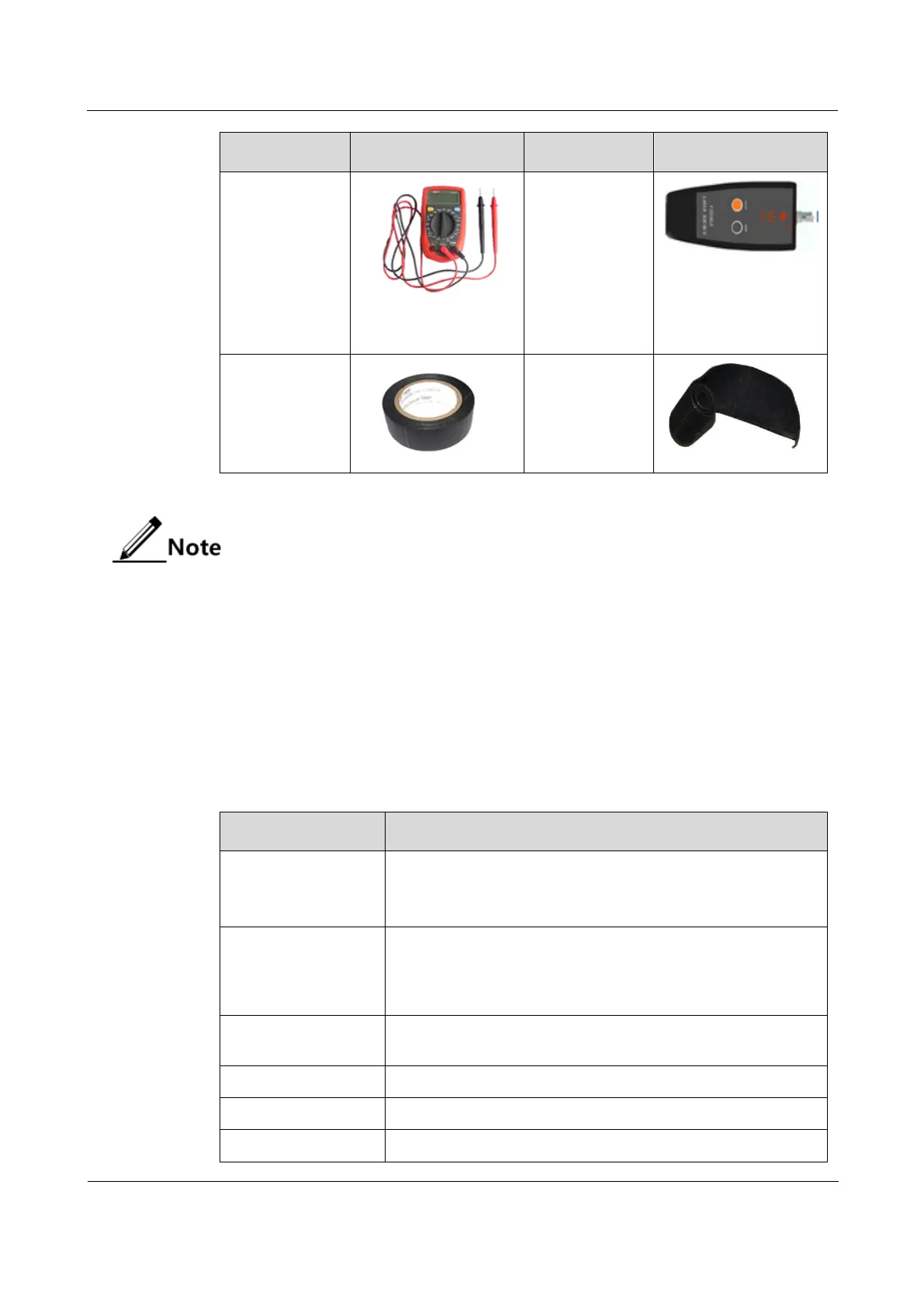

Name
Name
Multi-meter:
used to test the
chassis
insulation, cable
connectivity and
equipment
electrical
performance
indicator.
VFL: used to
locate fiber
faults and
identifying fibers
Insulation Tape:
used to bind the
cable connectors
for insulation
Hook-and-loop
strap: used to
bind tail fibers
The ISCOM6820-GP is not delivered with instruments and tools. Therefore, you
should prepare instruments and tools by yourself.
2.2 Checking installation conditions
2.2.1 Installation environment
The equipment installation should meet the working environment shown in Table 2-2.
Table 2-2 Working environment parameters
Item
Requirements
Physical address

Far from pollution source, dust, harmful gas, and explosives

Far from transformer substation, industrial boiler, heating
boiler, wireless interference sources, and high-intensity
magnetic field environment
Construction
The equipment room should be at least 3m high and has the
bearing capacity of 600 kg/m
2
. It also requires good grounding
conditions. You have to ensure that the device is well grounded
after installation.
Insurance
The power supply in the equipment room must be equipped with
fuses.
Working temperature
-5–60°C
Working humidity
10%–90% RH (non-condensing)
Working air pressure
70–106 kPa
