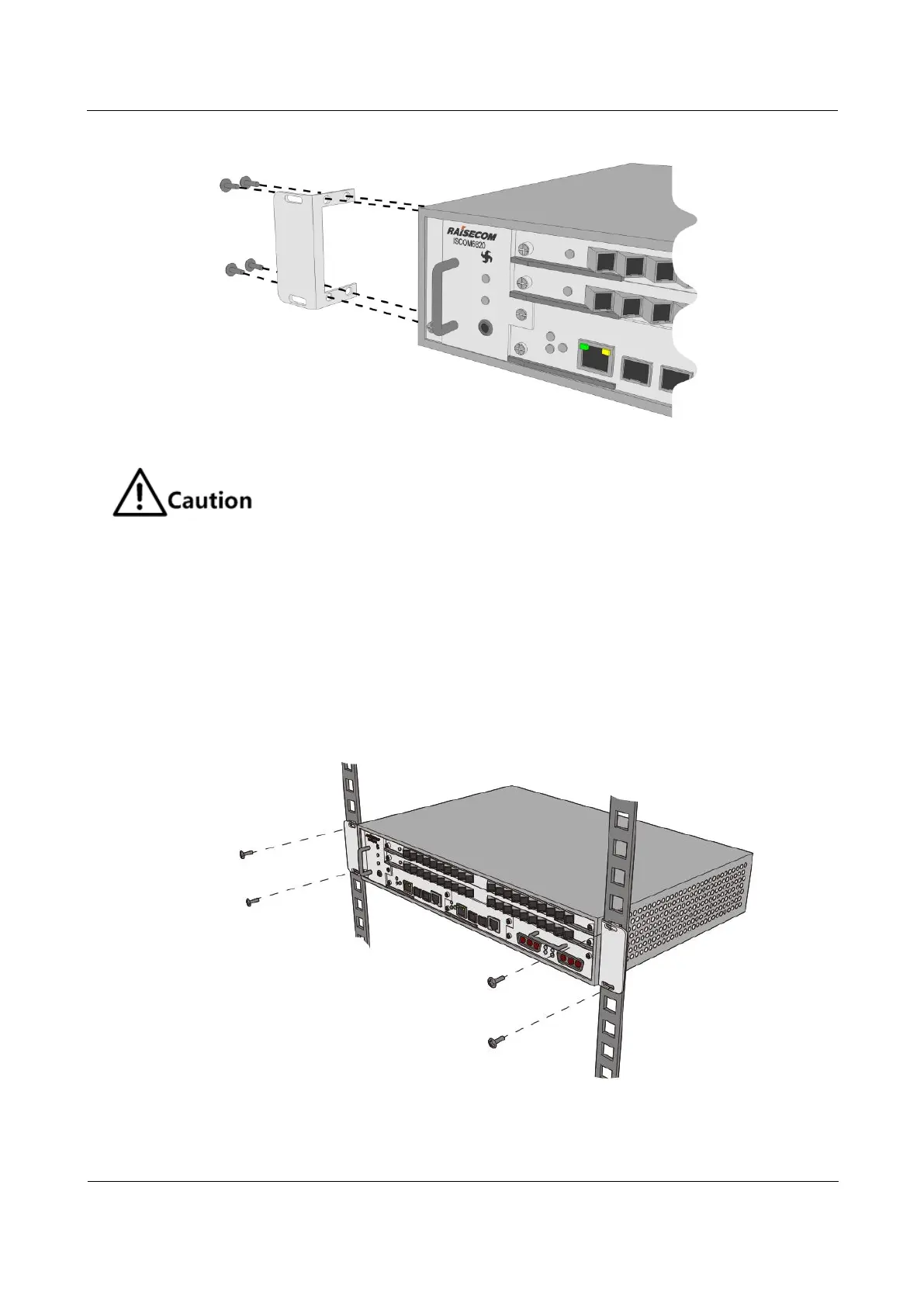

Figure 3-4 Installing standard brackets on the left side of the chassis
Step 3 Uplift the chassis with your hands and move it to the front of the cabinet slowly and stably.
Hold both sides of the chassis or the bottom edge of the chassis when lifting up the
chassis; do not hold the handles of the components (such as power module and fan
module) installed in the chassis. The handles of those components are not designed
to support the weight of the entire chassis.
Step 4 Lift the chassis slightly above the guide rail and put it to the guide rail.
Step 5 Slide the chassis into the cabinet slowly until the brackets fit snugly to the post of the cabinet.
Step 6 Fix the chassis to the cabinet with screws, as shown in Figure 3-5.
Figure 3-5 Installing chassis in cabinet
