8 Installation reference
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
38
8 Installation reference
This chapter introduces the installation reference of the ISCOM6820-GP device.

Tail fiber binding tape

Cable label specifications

Introduction and usage of ribbon
8.1 Tail fiber binding tape
8.1.1 Structure of tail fiber binding tape
The width of tail fiber binding tape is 12.7mm, and the two sides of the binding tape is hook
surface (transparent polypropylene) and rough surface (black nylon) respectively, which
achieves the locking function through coordination. The appearance of tail fiber binding tape
is shown in Figure 8-1.

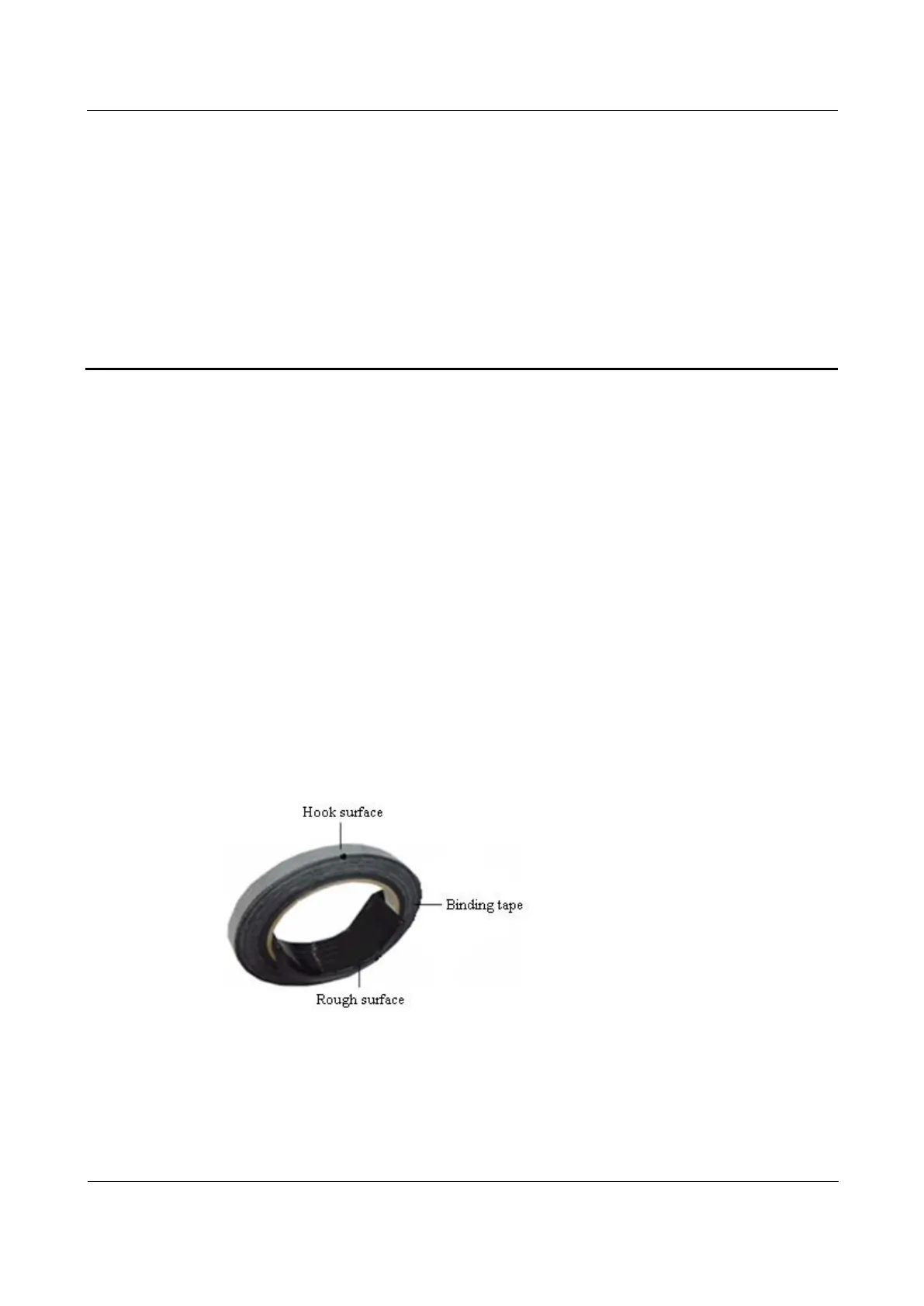

Figure 8-1 Tail fiber binding tape
8.1.2 Clipping of tail fiber binding tape
Bind the tail fiber according to the following steps:
Step 1 Install the binding tape to the plastic axis on the cutter, as shown in Figure 8-2.
