8 Installation reference
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
45
Lable content
Meaning
Example
Y-Board/Slot No.
Ordered from left right, top bottom, numbered from 1
For example: 01 indicates Card 1.
Z: Optical interface No.
Ordered from top bottom, left right, with two numbers
For example: 01 indicates the first optical interface.
R: Optical Rx interface
T: Optical Tx interface
N/A

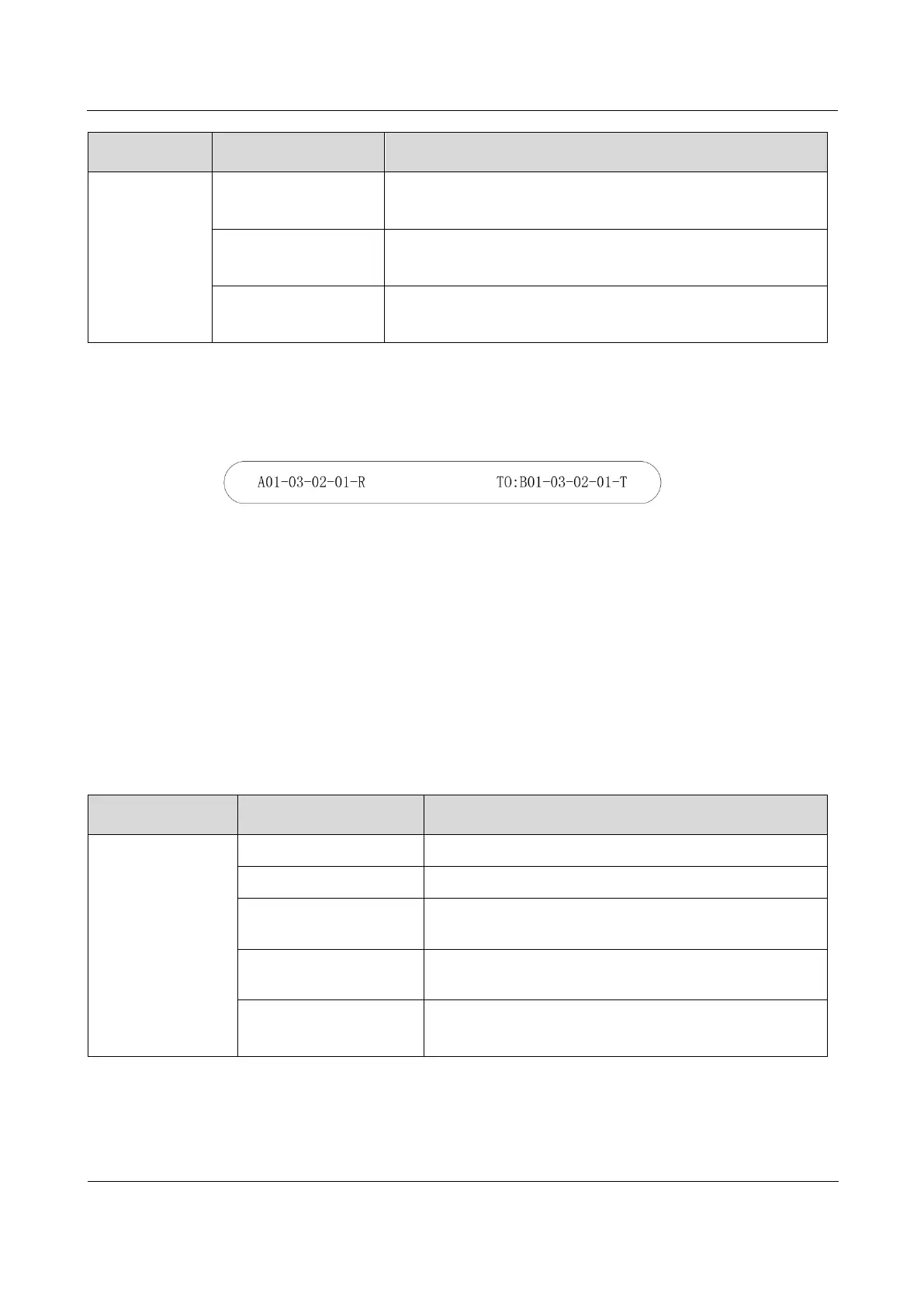

Figure 8-11 shows the fiber label between devices.
Figure 8-11 Fiber label between devices
The meaning of labels:

A01-03-02-01-R: indicates that the local end of the fiber is connected to the 01 optical
Rx interface in Card 02, Chassis 3 of the Cabinet in Column 01, and Row A in the
equipment room.

B01-03-02-01-T: indicates that the other end of the fiber is connected to the 01 optical
Tx interface in Card 02, Chassis 3 of the Cabinet in Column 01, and Row B in the
equipment room.
Fiber label from device to ODF
Table 8-4 lists the meaning the fiber labels from the device to ODF.
Table 8-4 The meaning of fiber labels from device to ODF
Lable content
Meaning
Example
MN-X-Y-Z-R/T
MN: Rack No.
Example: A01
Z: Chassis No.
Ordered from bottom top with two numbers, such as 01
Y: Physical board No.
Ordered from left right, top bottom with two numbers,
such as 01
Z: Optical interface No.
Ordered from top bottom, left right with two numbers,
such as 01
R: Optical Rx interface
T: Optical Tx interface
N/A
