398 SERVICING AND MAINTENANCE
Internal Power Distribution Center
The Power Distribution Center is located under the
driver’s side instrument panel. This center
contains cartridge fuses, micro fuses, relays, and
circuit breakers.

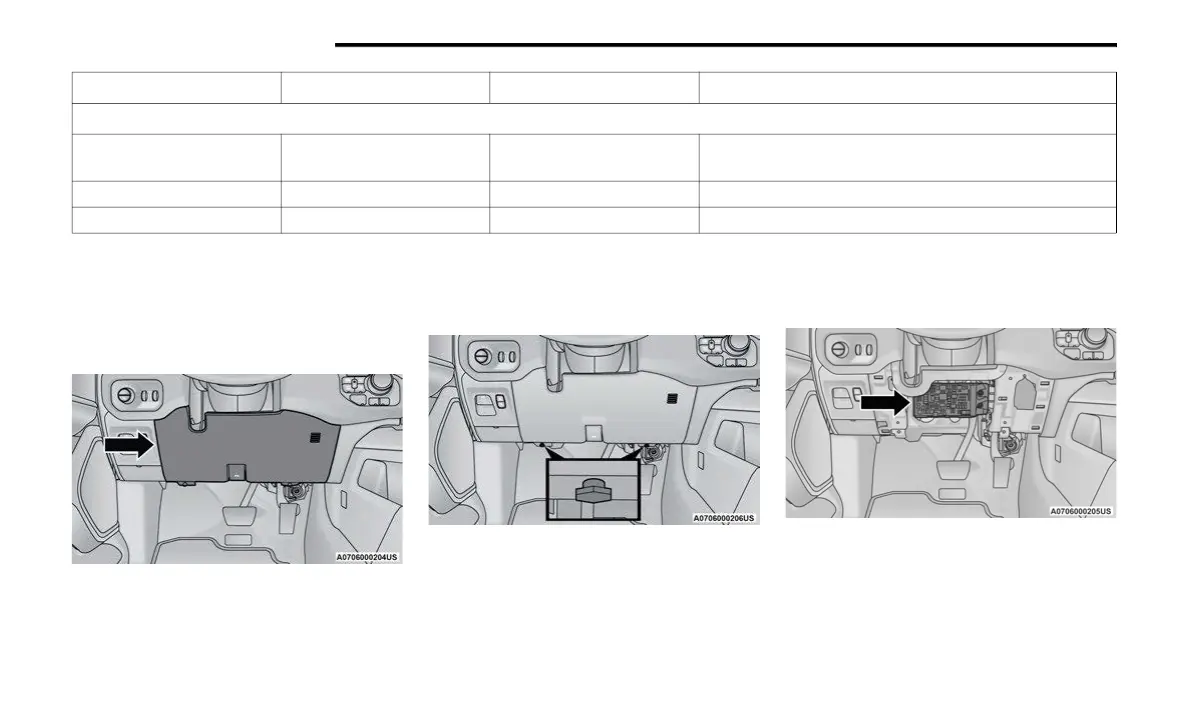

Fuse Cover Panel
See below steps for accessing fuses:
1. L
ocate and remove the two screws from the
lower portion of the fuse panel cover.
Fuse Panel Screws Location
2. A
fter removing the screws, gently pull both the
l
e
f
t and right side of the fuse panel cover to
release the fastener clips.
Interior Fuse Box Location
3. Reverse the procedure to reinstall the fuse
pan
el cover.
F62
60 Amp Blue
40 Amp Green
– Glow Plug (DSL) / LTR Coolant Pump (TRX)
F63 20 Amp Blue – NOx Sensor
F64 – 10 Amp Red PM Sensor *
Cavity Cartridge Fuse Micro Fuse Description
* If Equipped
