Preparing for Use

R&S

TSMA6

14Getting Started 4900.8040.02 ─ 07

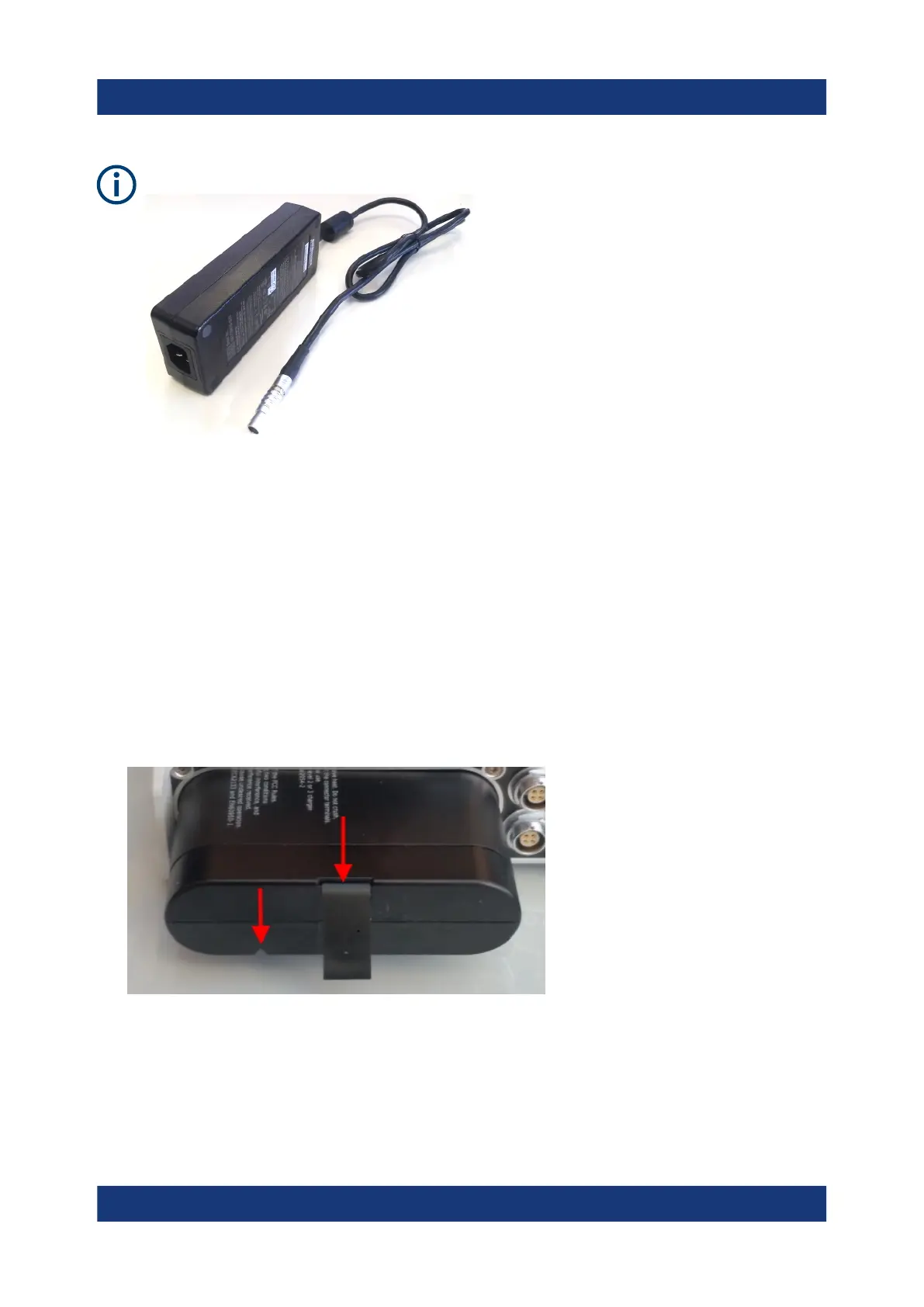

Use only the R&S TSMA6-Z1, R&S No. 4901.0550.02 as power supply.

Figure 4-2: R&S

TSMA6-Z1 Power Supply

4.3.3 Connecting the R&S TSMA6-BP Battery Pack Unit

Alternatively, it is possible to power the R&S TSMA6 via the R&S TSMA6-BP Bat-

tery Pack Unit.

To use the R&S TSMA6 with the battery pack, the following steps must be per-

formed.

1. Insert the batteries into the R&S TSMA6-BP.

Figure 4-3: Battery orientation

Note: The R&S TSMA6 may be used only with closed battery cover.

2. Remove the cover cap from the docking connector of the R&S TSMA6.

Connecting Power Supply
