LUBRICATION
Read the safety instructions
Before starting the engine for the first time lubricate all
points . For recommended lubricants see page 14.
ENGINE
Daily (every 8 working hours)
Check level of oil in sump.

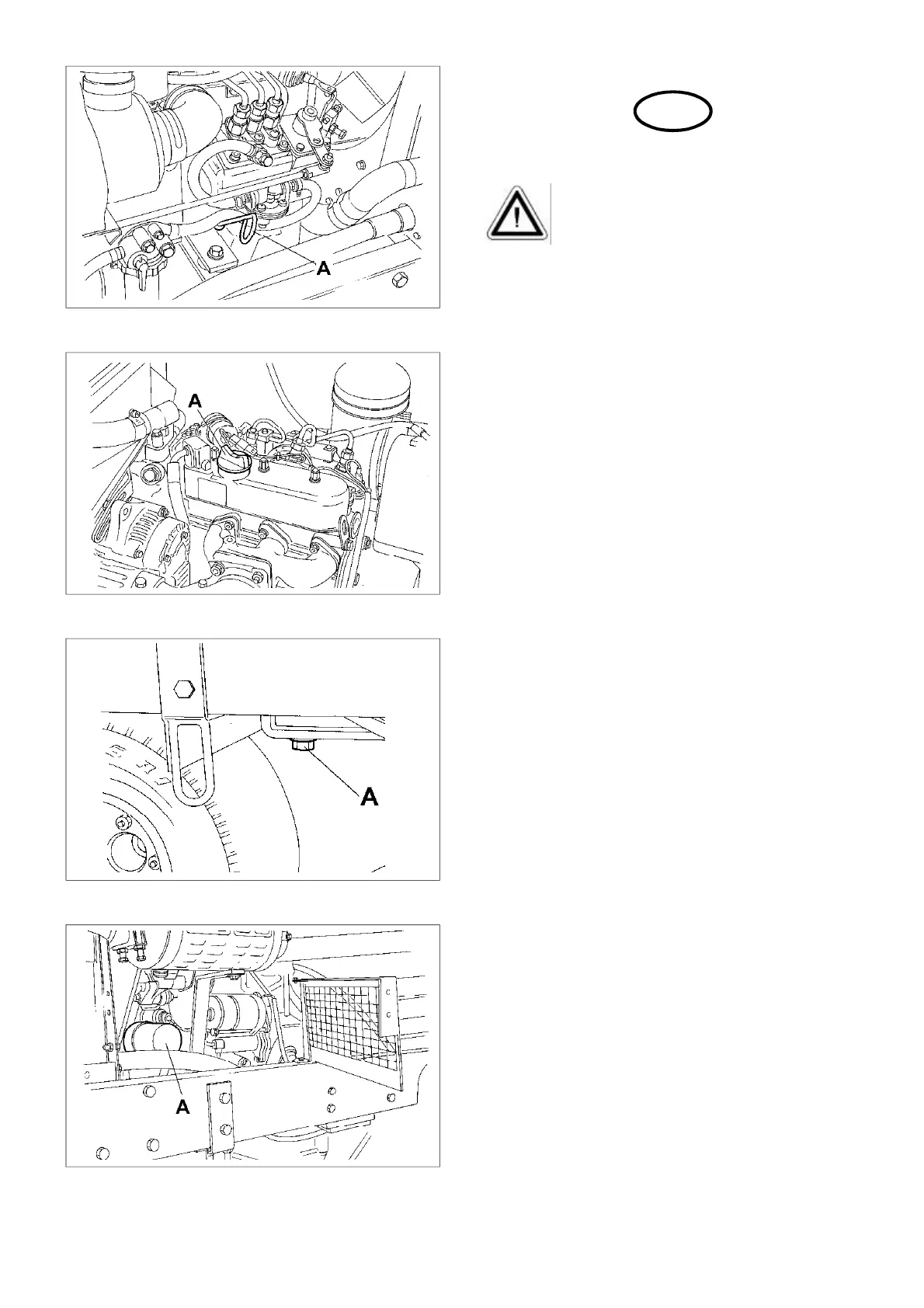

Remove dipstick (A Fig.24) and check that the oil is up
to the correct level indicated. If necessary top up with
fresh oil through the filler (A Fig.25) on top of the
rocker box.
NOTE: Ensure the machine is on level ground when
checking the oil level.
After first 50 working hours
Change engine oil.
(a) After first warming up the engine remove the
drain plug (A Fig.26) and drain all the oil from
the crankcase sump.
(b) Clean plug and replace.
(c) Remove the filler cap (A Fig.25) and refill with
fresh oil up to the maximum level on the
dipstick (A Fig.24).Capacity 3.2 litres
(5.6 Imp.pints) (6.7 US pints)
(d) Replace filler cap securely.
Every 75 working hours
Change engine oil, as quoted under first 50 working
hours.
Every 200 working hours
Change oil filter cartridge
(a) Remove cartridge (A Fig.27) from engine by
unscrewing and discard.
(b) Clean area on crankcase.
(c) Apply a thin film of oil to the gasket and screw in
the new cartridge by hand, securely.
(d) After replacing the new cartridge the engine oil
level will drop, run the engine for a short period
and after ensuring that no leaks appear, top up
with fresh oil to the level indicated on the
dipstick.
