REMOVAL OF CUTTING UNIT HYDRAULIC MOTOR

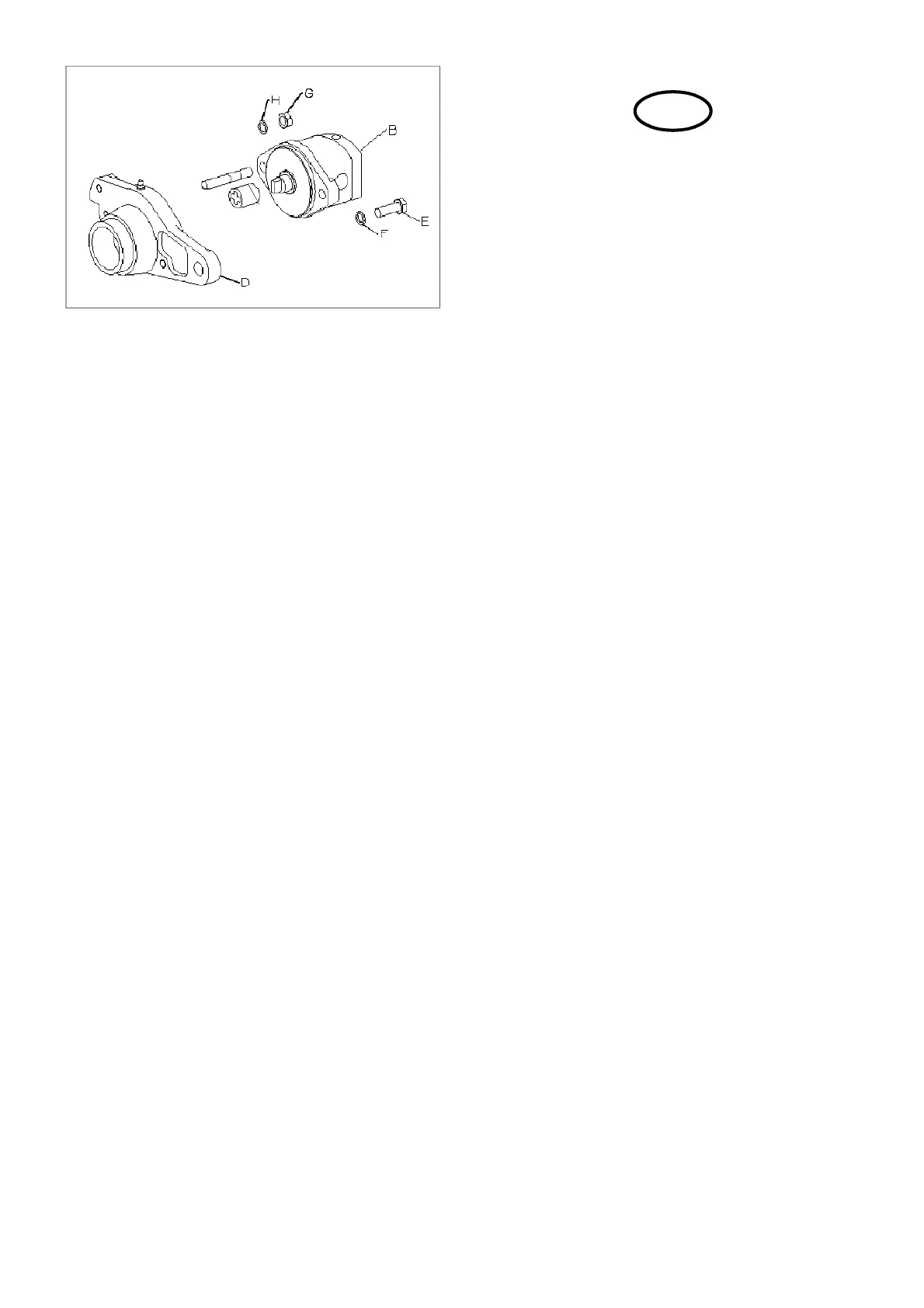

(Fig.41)
To remove the hydraulic motor remove the screw (E) &
nut (G) on the mounting stud holding the motor (B) to the
drive housing (D). Carefully withdraw the motor together
with the drive coupling (A).
NOTE: When dismantling it is important not to
contaminate the drive coupling (A) or the drive tangs of
the hydraulic motor (B) and cutting cylinder shaft. If for
any reason they should become contaminated, they
should be cleaned by degreasing and then lubricated
using an anti-scuffing paste before reassembling.
