Rational VarioCooking Center 112 User Manual

Feature of the VarioCooking Center
®
Fixed connection with odour lock is permissible;
thanks to a ventilated drain line which is integrated
in our units
A connection set for the drain is available (Water
supply and drain).
Set ref. (Unit without hot water option) 87.00.174
Set ref. (Unit whit hot water option) 87.00.545
Attention!
• Discharging of the pan can be done with hot
water.
• Drain pipe must be capable of withstanding
steam,temperature - don't use hoses.
• Drain water temperature < 100°C
Requirements
• Welding of drain pipe to the units drain is not per-
missible.
• Drain pipe must be equipped with a odour lock.
• The unit drain is ventilated. This consist of a square
pipe coming out of the unit. It is forbidden to obstruct
it, to cover it or to change his square shape.
• Drain pipe must have the same diameter as the out-
put pipe of the unit, no reduction in diameter should
be inserted.
• The drain pipe must have a constant slope of at least
3%

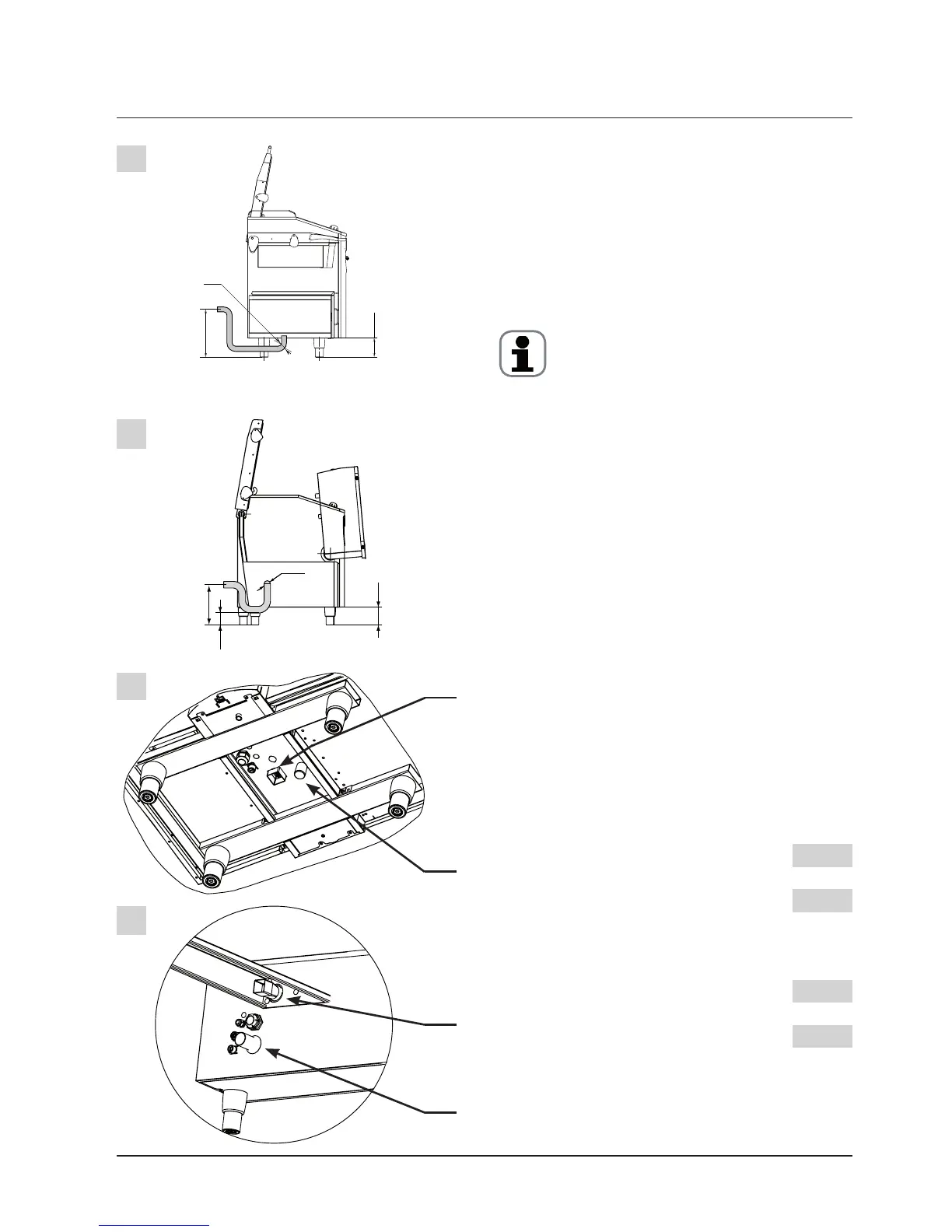

Models 112
The drain pipe with ID 40 mm is located on the
bottom side of the center support Pict. 3
The maximum height of the wall inlet is 380 mm
(15"). (Midle of the pipe) Pict. 1
Models 211/311
The drain pipe with ID 50 mm is located on the
inner side of the right unit support. Pict. 4
The maximum height of the wall inlet is 200 mm
(7 3/4"). (Middle of the pipe) Pict. 2
(1) Drain ventilation
(2) Drain connection
Drain connection
- 21 -
v08
200 mm Max
(7
3/4
")
150 - 170 Max 5
3/4
"
- 6
11/16
"
Ø50 mm
(2")
50 mm Min
(2")
2
2
1
1
1
2
3
4
380 mm Max (15")
150 - 170 Max
5
3/4
"
- 6
11/16
"
Ø40 mm
(1
1/2
")
