Assembling the AccuFlow™ System

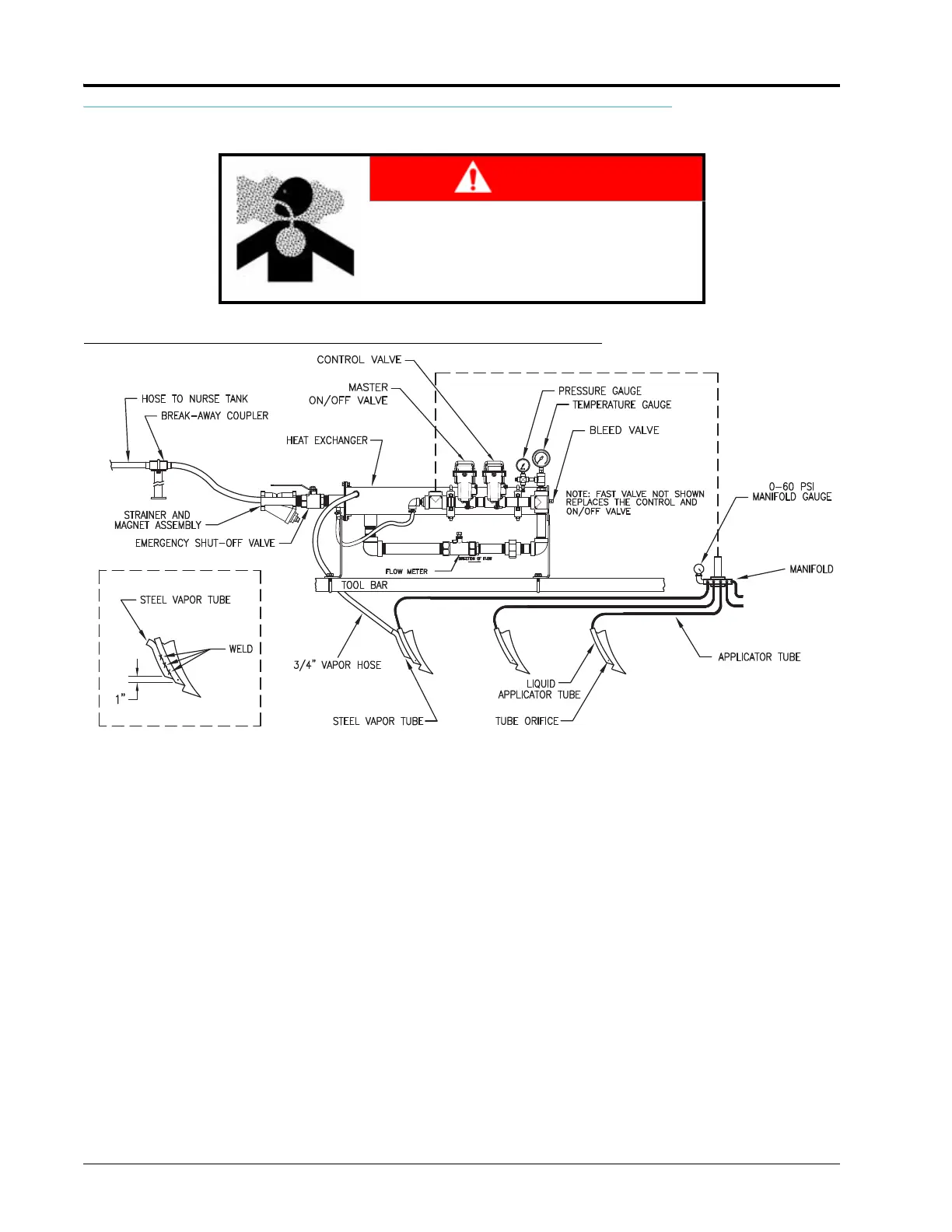

FIGURE 1. Typical AccuFlow System (Single Section, Two Valves)
Note: AccuFlow systems with a fast control valve (P/N 063-0173-204) will only have a single control
valve in place of the control valve and master on/off Valve as shown in the diagram above.
DANGER
Anhydrous ammonia in vapor form can cause
serious injury or death. Pipe joints must be
properly sealed with RectorSeal™, or an
equivalent thread sealant, to prevent leaks.
