Manual No. 016-0171-496 Rev. C 41
AccuFlow HP™ Installation
AccuFlow™ Multi-Section Control
Note:
Adding a flow divider will decrease the pressure of anhydrous ammonia for application. Size the
flow divider for minimal pressure drop to avoid reducing system capacity. Consult the
manufacturer or dealer for specifications and sizing information.
The following diagrams illustrate the required plumbing for a multi-section control system.

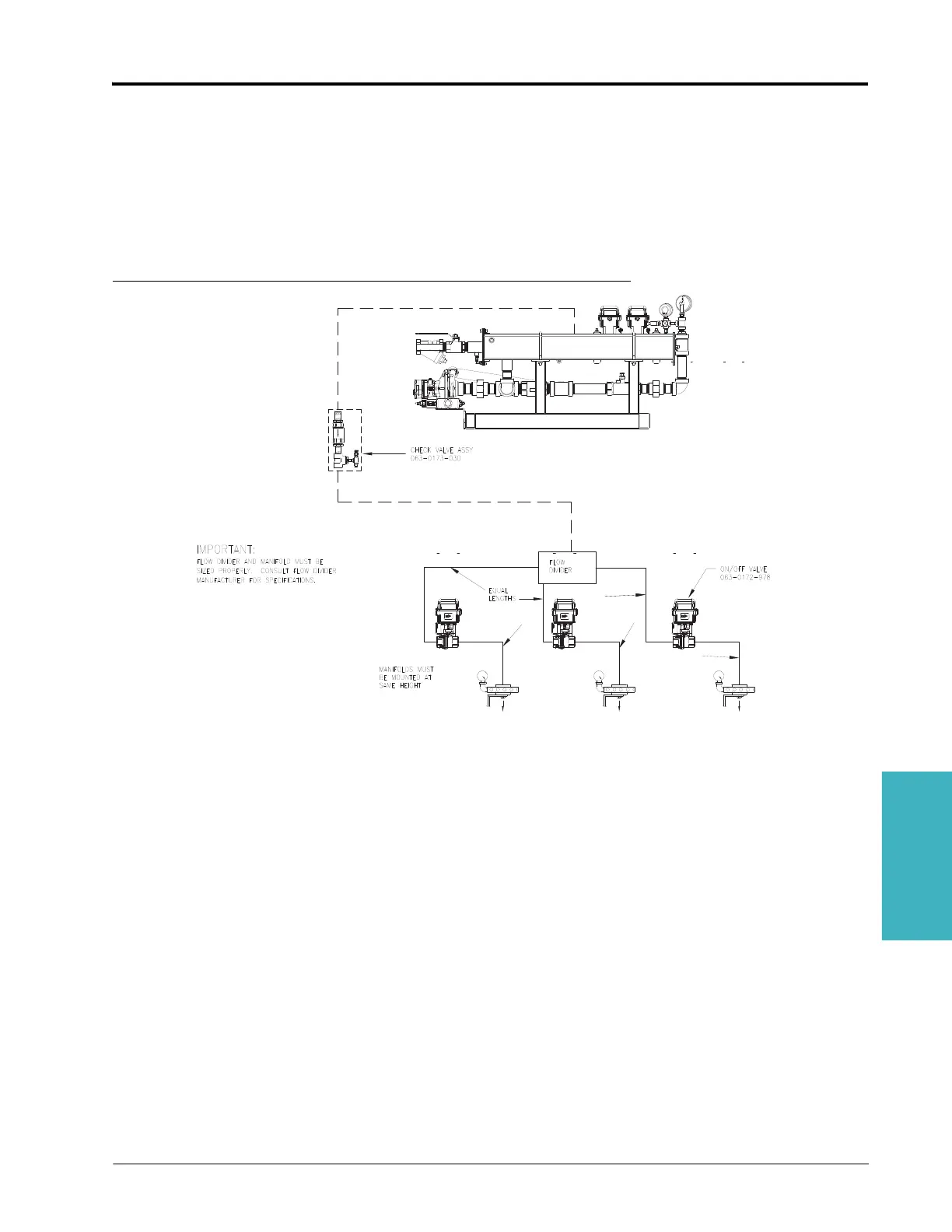

FIGURE 10. Multi-Section Tool Bar with Two Valve System
Note: Contact a local NH
3
dealer for proper orifice diameter, flow dividers, and manifold selections for
the specific application. The fast valve system will not have an on/off valve within the AccuFlow
HP assembly.
Adding a flow divider will decrease the pressure of anhydrous ammonia for application. Size the
flow divider for minimal pressure drop to avoid reducing system capacity. Consult the
manufacturer or dealer for specifications and sizing information.
