Chapter 5
40 AccuFlow™ and AccuFlow HP™ Installation & Operation Manual
Mounting the Manifold
The following figure illustrates the various methods of connecting the existing NH
3
manifold(s) (manifold not
included with AccuFlow system). When installing a manifold, Raven recommends the following:
• Attach a 0-60 PSI gauge in one outlet of each NH
3
manifold connected to the AccuFlow system.
• Verify that all manifold(s) hose barbs are the same orifice diameter.
• Verify all hoses from the flow divider are the same length.
• Verify all hoses to the manifolds are the same length.

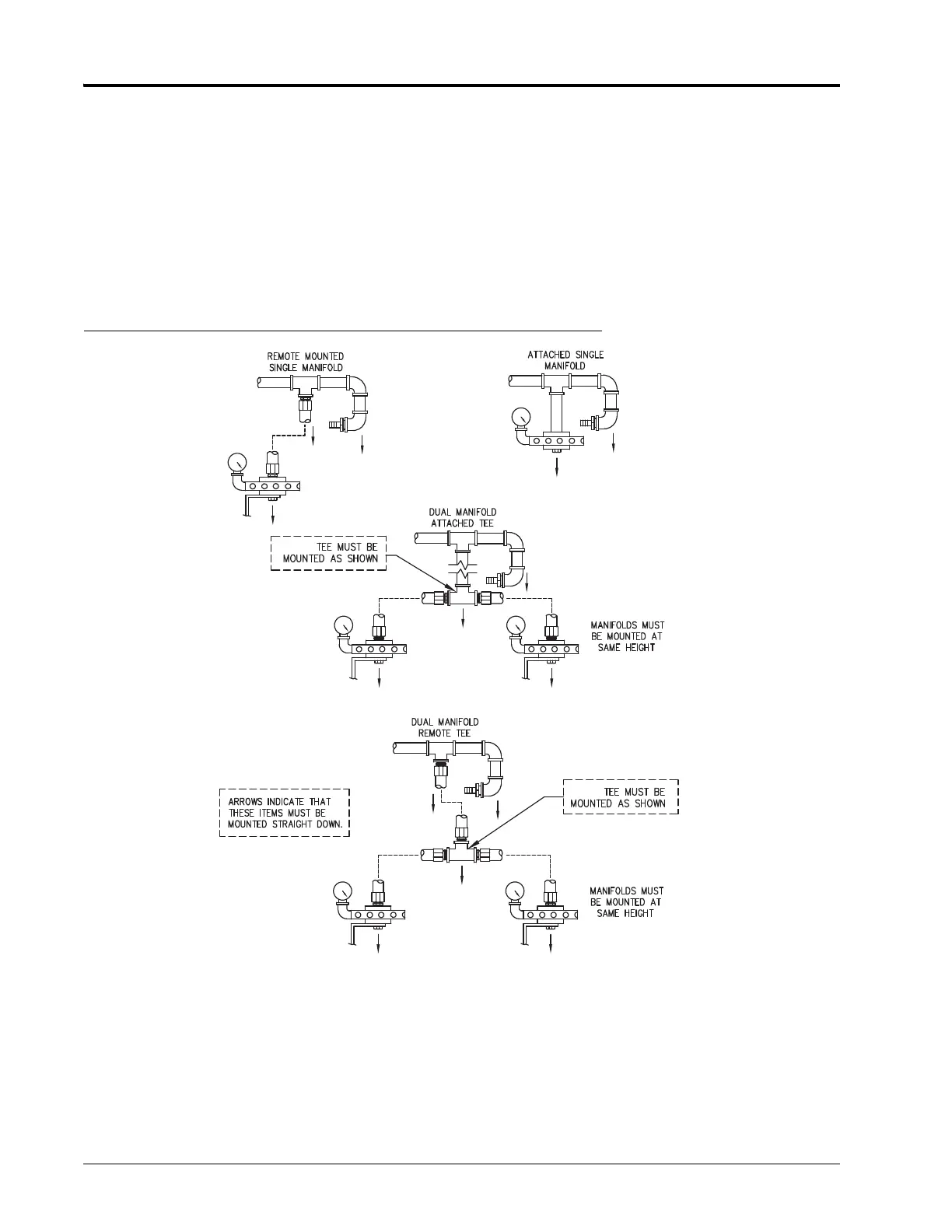

FIGURE 9. Manifold Mounting Examples (Single Section Tool Bar)
Note: If more than two manifolds will be used with the AccuFlow™ system, a flow divider manifold will be
required. Follow the manifold manufacturer instructions for proper orientation and installation.
