24

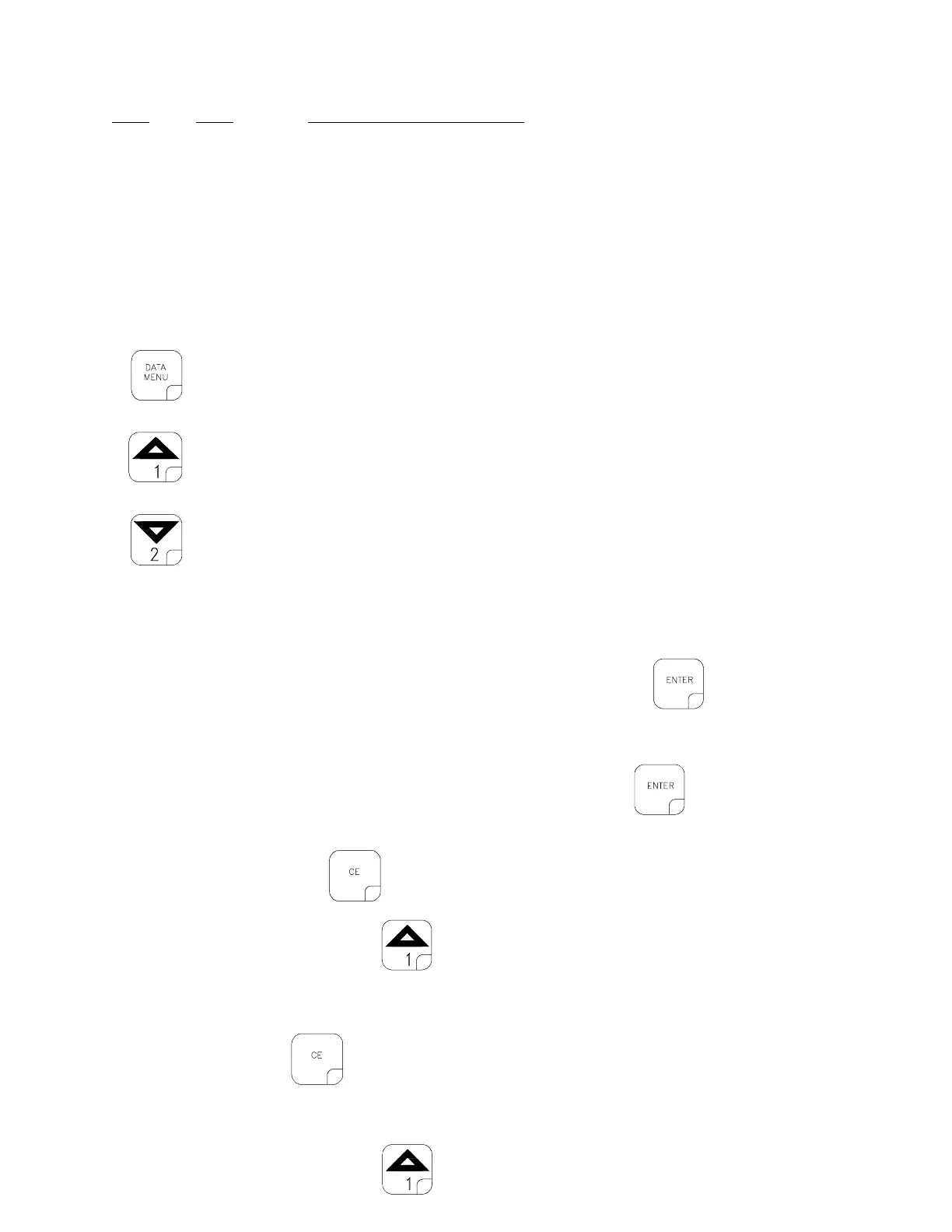

1) Definition of Data Menu Key:
Depressing this key displays selected Data Menu features in RATE display.
EXAMPLE: RATE display will display options by name and DATA will display
default setting.
Depressing this key after selecting DATA MENU toggles up through desired
features.
EXAMPLE: "Prn" "bEGn, "ALrn""on", "diSP""on", etc....
Depressing this key after selecting DATA MENU toggles down through desired
features.
EXAMPLE: "Prn" "bEGn, "DLoG""oFF", "UniT""FT", etc....
2) CONSOLE DATA PRINTOUT
A) RATE display will show "Prn". DATA display will show "bEGn" (Print Field
Begin).
1) To Print Field Begin, depress key labelled
B) RATE display will now show "Prn" and DATA display will show "End" (Print
Field End).
1) To Print Field End, depress key labelled
2) While "End" is displayed, if Field Begin is required, depress key
labelled
to toggle DATA display to "BEGn".
C) Momentarily depress
to advance to AUDIBLE ALARM ON/OFF.
3) AUDIBLE ALARM ON/OFF
A) RATE display will show "ALrn". DATA display will show "on".
B) Depressing
momentarily changes the DATA display between "on" and
"off". A value of "on" means the audible alarms are enabled; a value of
"off" means the audible alarms are disabled.
C) Momentarily depress
to advance to DISPLAY SMOOTHING ON/OFF.
DISPLAY
RATE DATA FEATURE and DESCRIPTION
UniT FT DATA LOGGER TRIGGER UNITS
Used in data logging mode. The trigger unit is selectable
between feet [meters] or seconds (Serial interface console
only).
dLoG oFF DATA LOGGER ON/OFF
Turns data logger ON or OFF (Serial interface console only).
