Raycus RFL-C20000M-CE - Control Interface Definition; Safety XP2 Interface

20
Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C20000M-CE
The standard length of RFL- C20000M-CE provided by Raycus is 15 meters.
4.4. Control interface definition
This type of laser does not provide a control signal line, only a control signal connector. The
appearance of the joint is shown in Figure 14.
HARDWIRING
XP1
Security
interface
Analog
interface
Serial
interface
Communication
Interface XP5

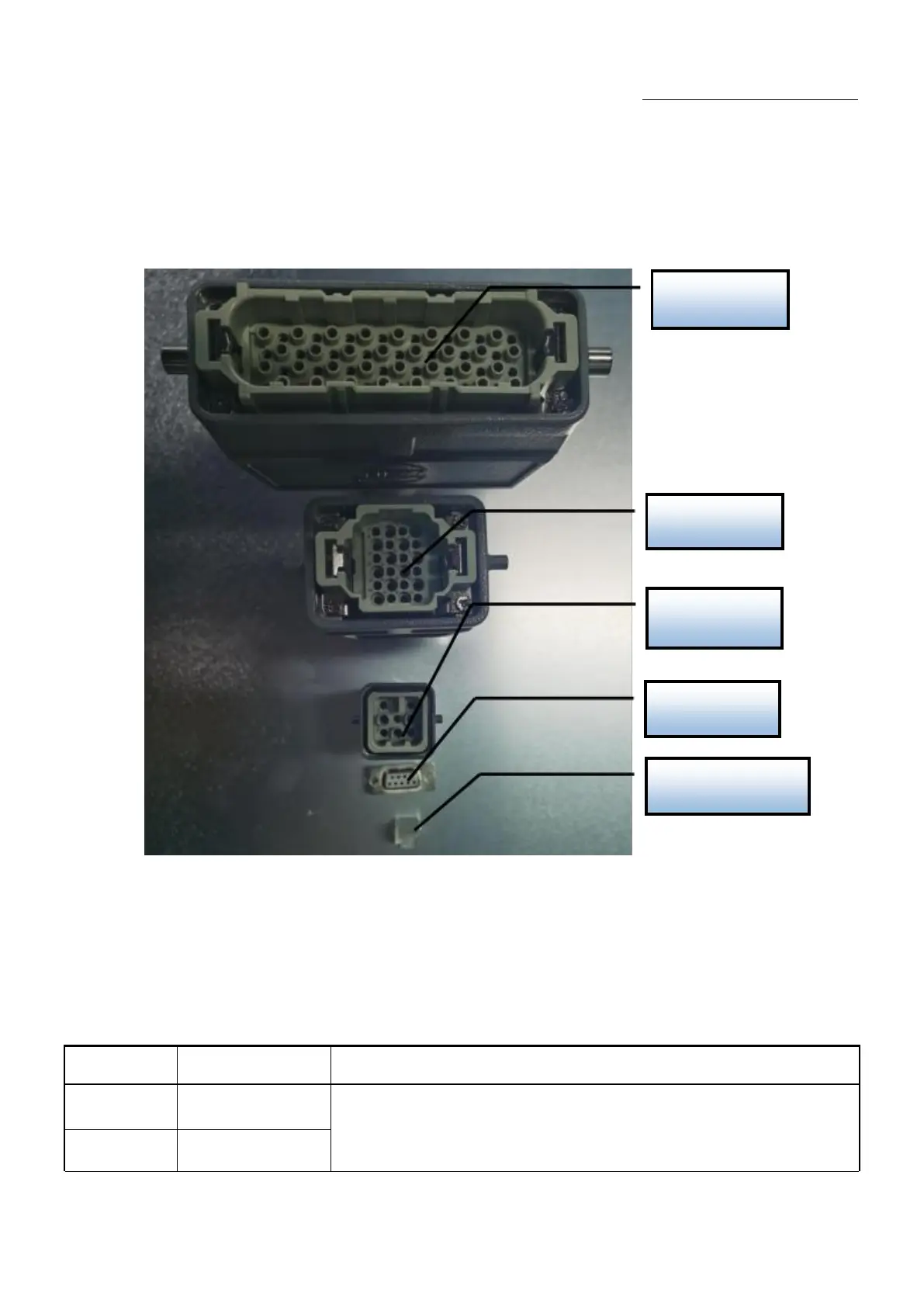

Figure 14 Control signal line
4.4.1 Safety XP2 Interface
24-pin safety interface, with remote control system power-on, remote main power power-on and
active and passive output of some lasers. The detailed interface definition is shown in Table 6.
Table 6XP2 security interface definition
Pin number
type
description
1
MOD+
Output control, differential voltage input signal;
laser ON: 4~30V;laser OFF: -3~2V;
Maximum modulation frequency: 5kHz.
2
MOD-
