User Guide of RFL-C20000M-CE

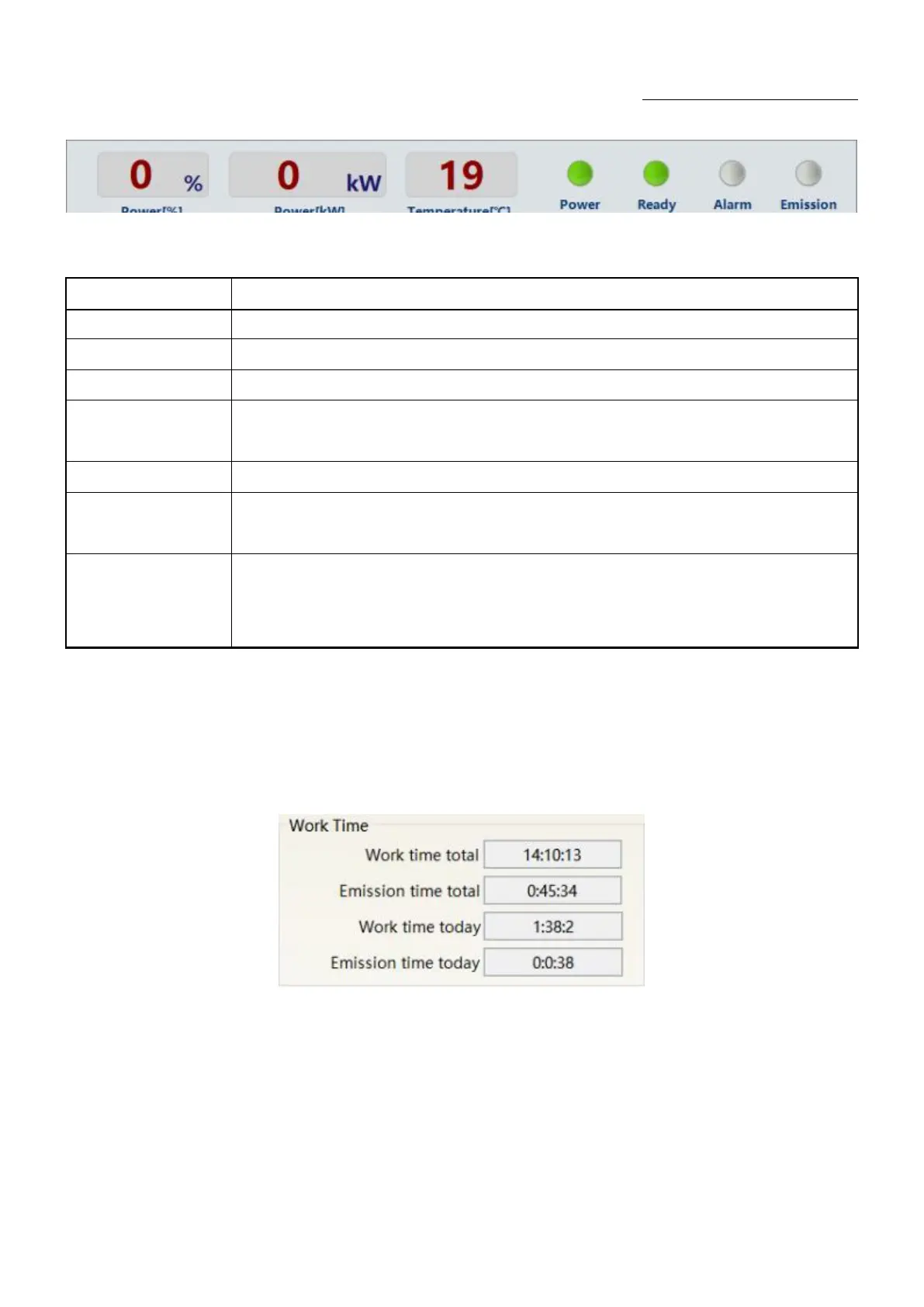

Figure 30A diagram of the laser's main display area
Table 13The laser main display content and meaning
Display
Meaning
Output power
current setting percentage of power in realtime
Output power
Average laser output power in realtime（W）
Laser temperature
Water cooling temperature in realtime(℃)
Power light
Status of main power supply:green-main power supply is on,
gray-main power supply is off
Ready light
Indicates readyness of current laser:green-laser is ready,gray-laser is not ready
Alarm light
indicates alarm status of current laser:yellow- laser is abnormal,
gray-laser is normal
Emission light
indicates the working model of the current laser：
red-laser is in working model
gray-laser is not in output model
8.3.1 Laser’s cumulative operating time display area
The laser‟s cumulative operating time display is shown in Figure 31. The cumulative start-up time,
cumulative laser output time, today's power-on time and today's lighting time can be displayed in hours,
minutes and seconds respectively.
Figure 31Laser cumulative operating time display interface
8.3.2 Laserworkingstatusdisplayarea
The laser working status display area is as Figure 32, Table 14.
