20 ST7001+ Autopilot Control Unit - Owners Handbook
3 Advanced Operation

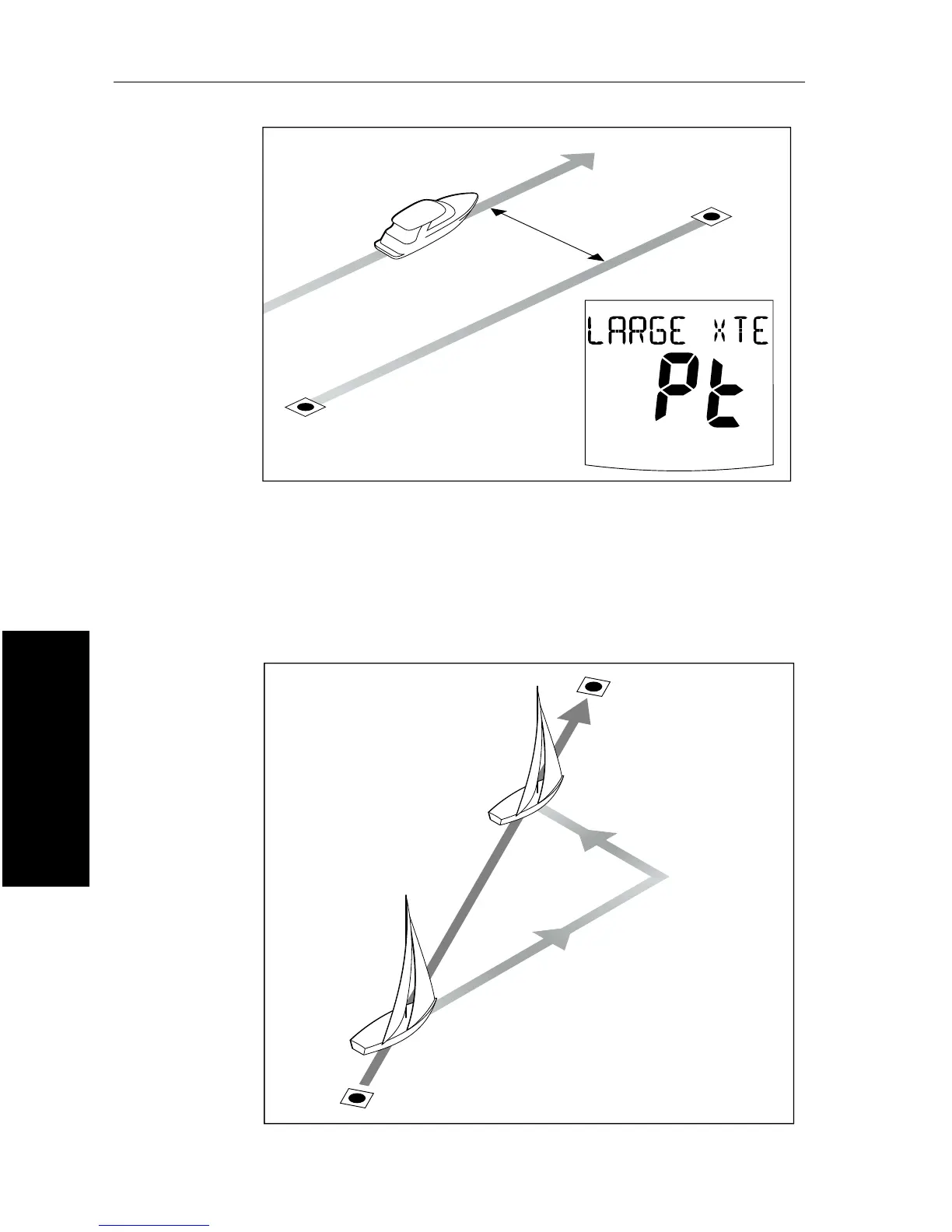

Tidal stream compensation
Under most conditions, the autopilot will hold the selected track to
within ±0.05 nm (300 ft) or better. The autopilot takes account of the
boats speed when computing course changes to ensure optimum
performance over a wide range of boat speeds.
Waypoint 1
Waypoint 2
Cross track error (XTE)
more than 0.3 nm
D4231-2P
Planned route
Actual route
D3261-2
Waypoint 2
Waypoint 1
Tidal component
Boat's speed through water
Boat's speed over ground
