Chapter 2: Installation 11
2.6 Mounting the RayData
The RayData is waterproof and provided with a sun cover. It is
designed for above or below deck installation. You should mount it
where it is:
• Easily read by the helmsman
• Protected against physical damage
• At least 9in (230mm) from a compass
• At least 3ft (1m) from radio receiving equipment
• Accessible from behind for ease of installation and cable running
Although the RayData is designed to meet the CFR46 waterproofing
standard, it is advisable to mount it, whenever possible, so that it is not
exposed to the direct effects of salt spray or the hot sun.
The RayData can be mounted in two ways:
• On a panel (tabletop or console)
• Attached to a bulkhead or suspended overhead, using the optional
trunnion mounting kit

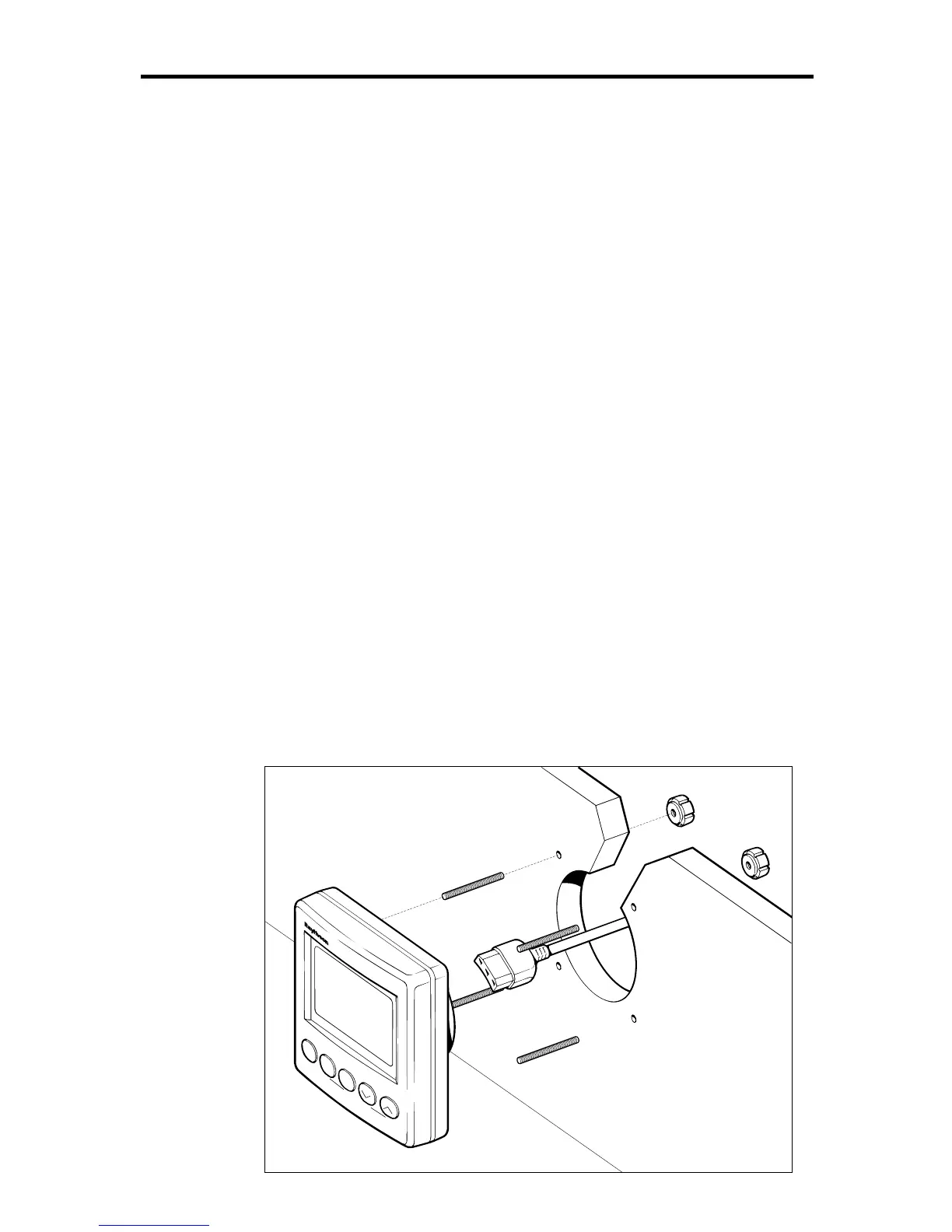

Panel Mounting
To mount the RayData on a tabletop or console:
1. Select a clear location at least 4.75in (120mm) square, that
conforms to the recommendations listed above.
D3065-1
SPEED
RAYDATA
DEPTH
NAV
MOB
LOCK
POWER
