CHIRPSonaroverview

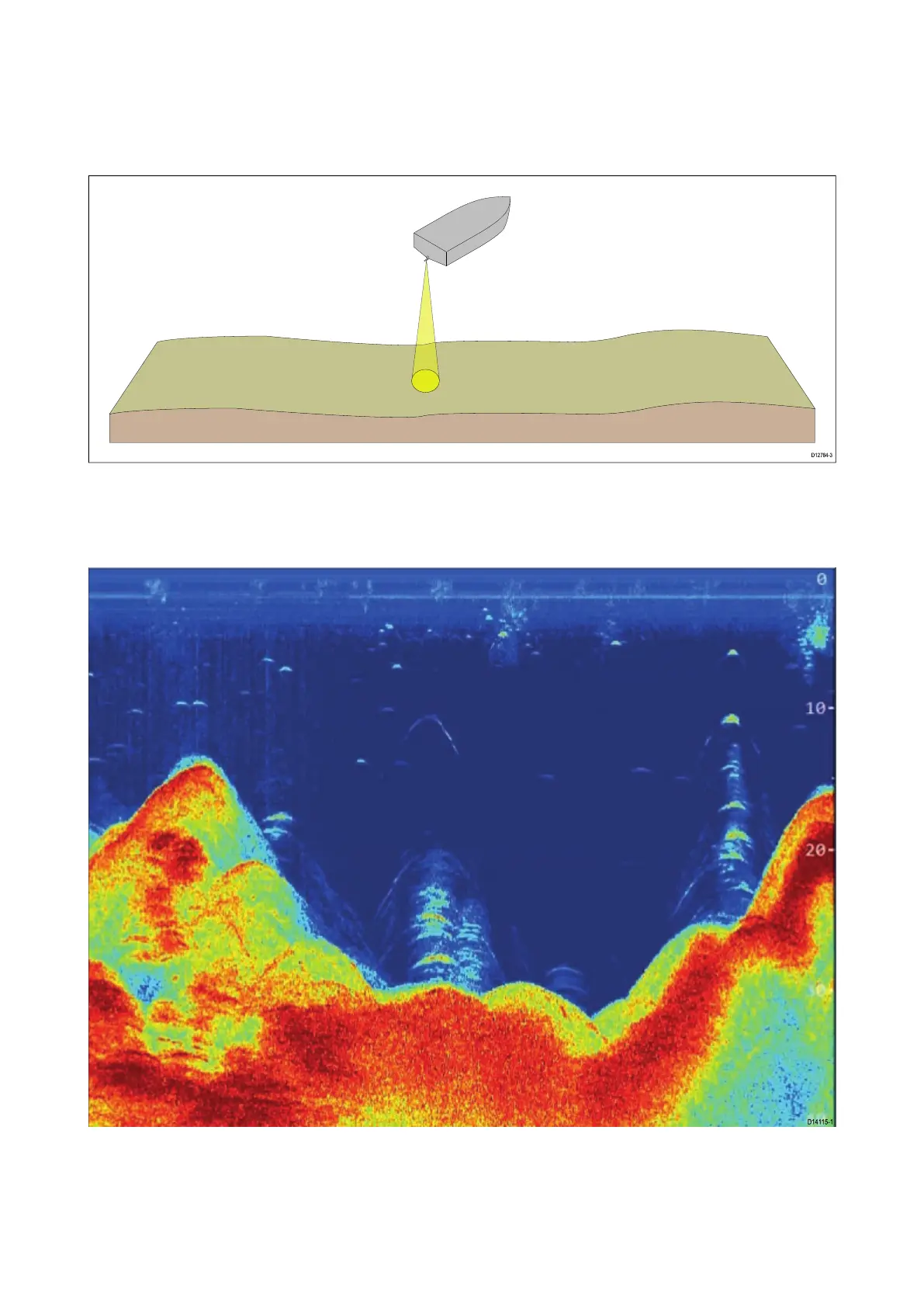

CHIRPsonarproducesaconicalshapedbeam,thecoverageoftheconicalbeamisthewatercolumn
directlybeneaththevessel
Conicalbeam
Sonariseffectiveatarangeofspeeds.IndeeperwaterstheCHIRPbandwidthisautomatically
optimizedtoimprovebottomlockandthedetectionofmovingobjects(e .g.fish)inthewiderwater
column.
CHIRPsonarscreenexample
