16 SmartPilot X-Series Commissioning & Setup Guide
10. The seatrial is now complete. Hold down
standby
for 2 seconds to exit Seatrial
calibration and save the settings.
Commissioning complete
If you have successfully completed the dockside preparation and seatrial calibration,
the SPX system is now commissioned and ready for use.
After you have used your SPX system, you may decide to change the value of some
parameters to improve pilot performance with your boat. If you feel this is necessary,
use the appropriate procedures under
Manual setup
, below.
1.3 Manual set-up
Requirement
Checking SPX system operation
Before manually adjusting any settings, familiarize yourself with basic SPX system
operation, as follows:
1. Steer onto a compass heading and hold the course steady at a normal cruising
speed. If necessary, steer the boat manually for a short time to check how the boat
steers.
2. Press
auto
to lock onto the current heading. The SPX system should hold the
locked heading in calm sea conditions.
3. Use
-1
,
+1
,
-10
and
+10
and observe how the SPX system alters the course to port
and starboard.
4. Press standby to return to manual steering.
2 sec
D10546-1

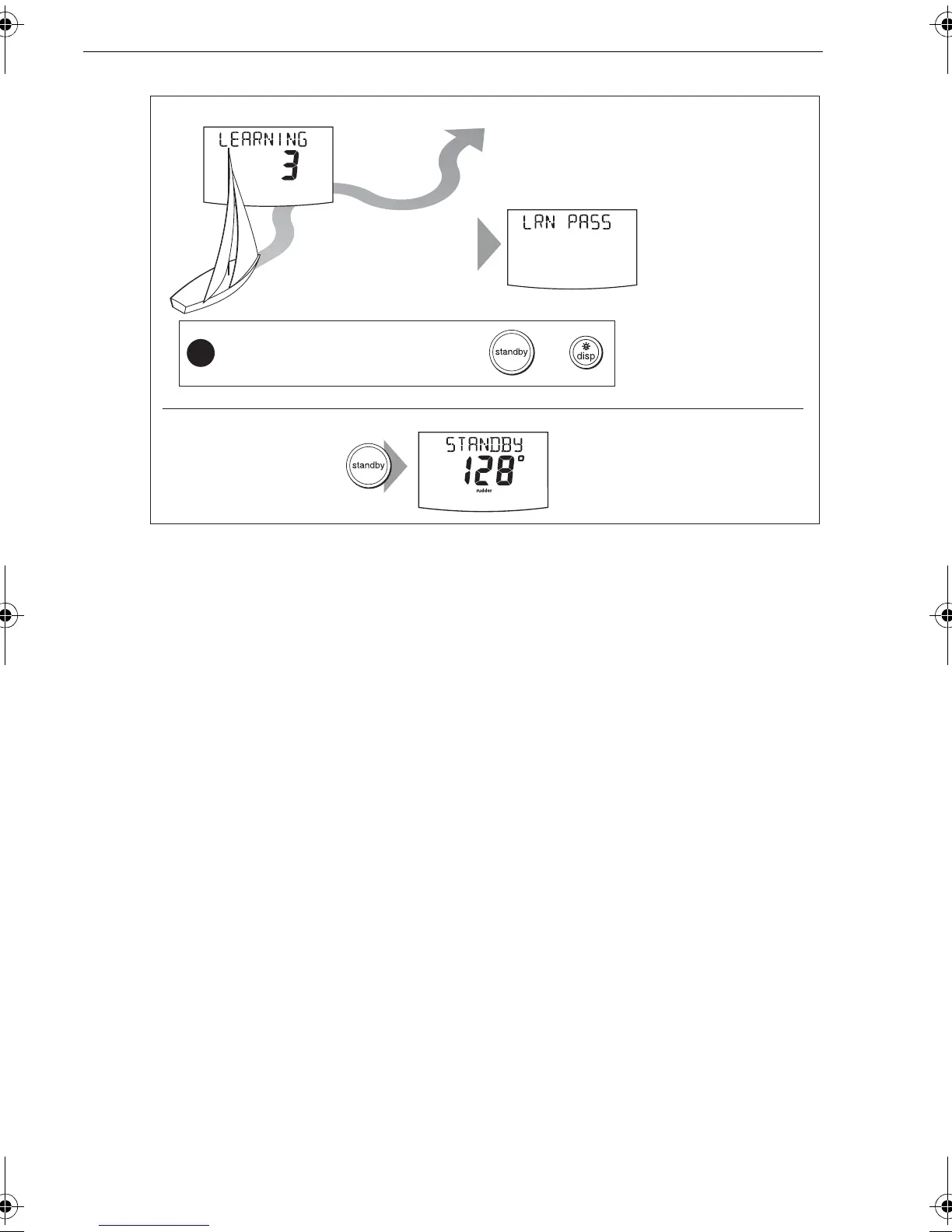

AutoLearn successful
If you need to cancel the AutoLearn, press or
Note: If you see a
LRN FAIL message,
press disp to return to
the AUTOLEARN screen
then repeat from Step 2
After
7 to 27
steps
!
Boat completes AutoLearn
Save new settings
To:
• save AutoLearn calibration settings
• return to STANDBY mode
