Chapter 2: SPX system settings 23
2.2 Display calibration
Display calibration provides settings to adjust the information displayed on the Pilot
Controller.
RUDD BAR screen
This screen gives you access to the other Display calibration screens.
HDG screen
You can choose whether to use magnetic or true heading data values. The options
are:
•
HDG MAG
- Magnetic heading. If you select this, the screen will indicate
MAG
for
heading values, during normal operation.
•
HDG TRUE
- True heading. If you select this the screen will indicate
TRUE
for
heading values, during normal operation.
Data pages
The Pilot Controller has fifteen user-configurable data pages. Each data page can be
configured to display SeaTalk/NMEA data, which can be viewed during normal
operation.
D10602-1
or
or
To adjust values
2 seconds
(save changes)
Data pages
Press disp
for next page

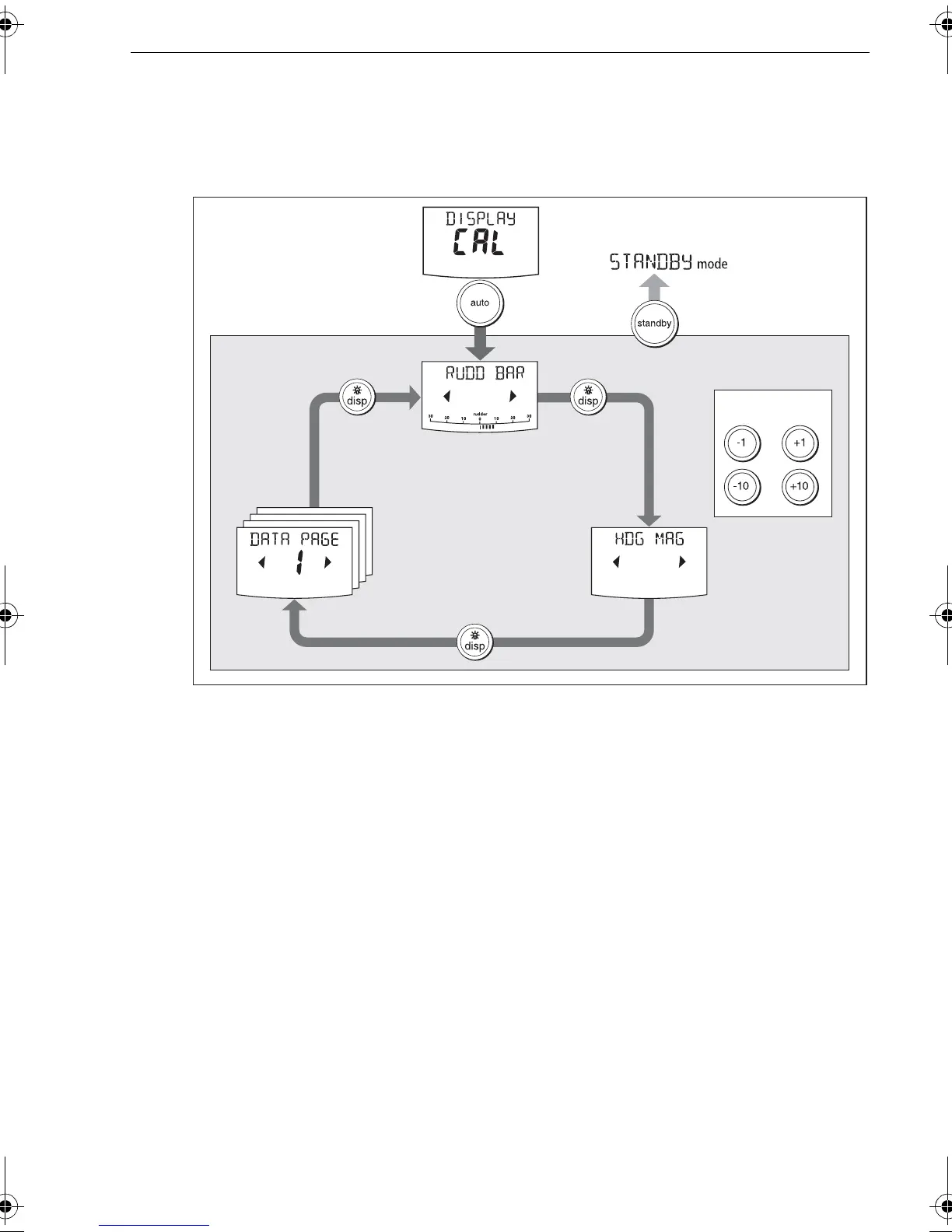

Accessing Display
Calibration
Display Calibration
The RUDD BAR parameters are
adjustable only if the rudder
reference transducer option is fitted
81307_1.book Page 23 Wednesday, December 19, 2007 11:17 AM
To Next Page
