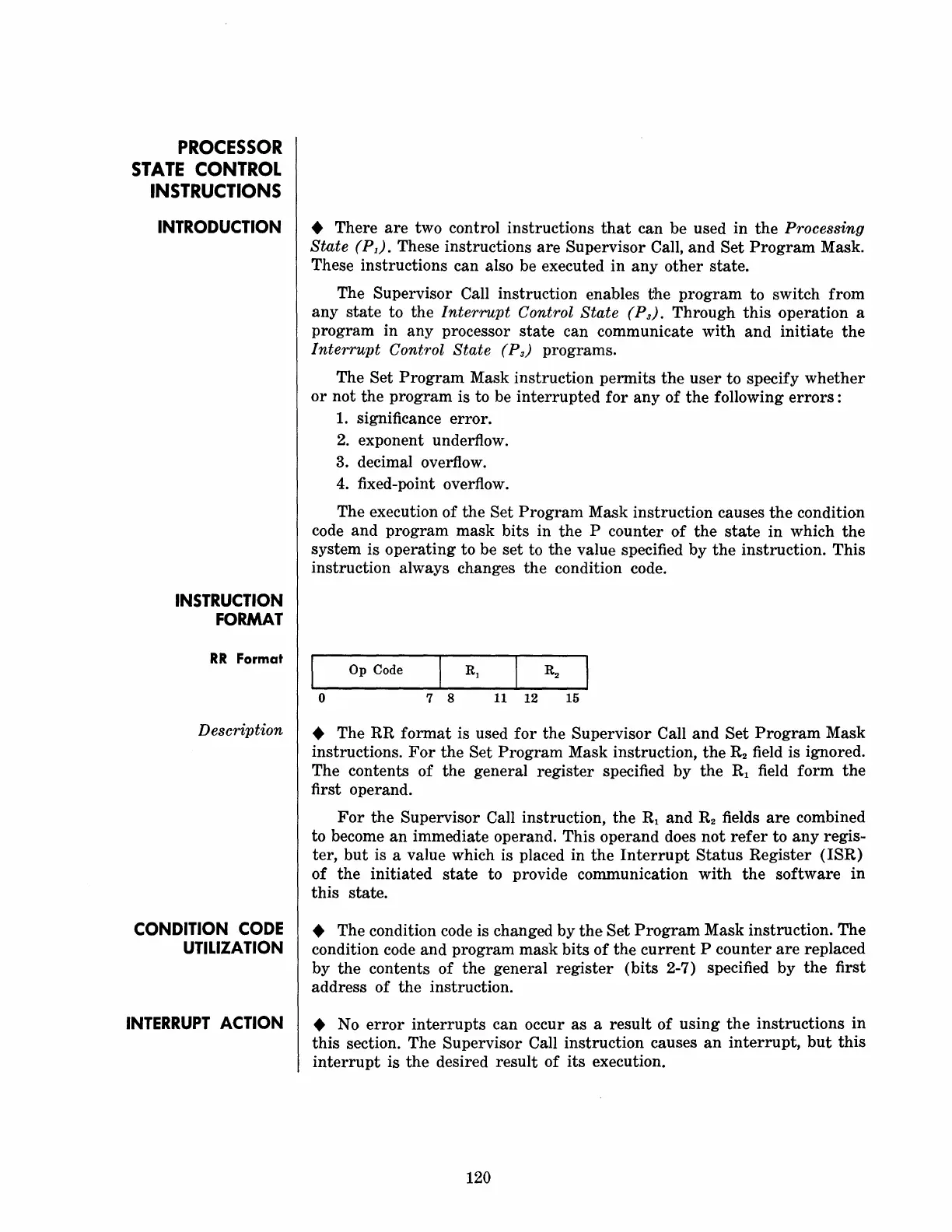

PROCESSOR
STATE
CONTROL
INSTRUCTIONS
INTRODUCTION
INSTRUCTION
FORMAT
RR
Format
Description
CONDITION
CODE
UTILIZATION
INTERRUPT
ACTION
• There
are
two control instructions
that
can be used in
the
Processing
State
(P
J
).
These instructions
are
Supervisor Call,
and
Set
Program
Mask.
These instructions can also be executed in
any
other
state.
The Supervisor Call instruction enables the
program
to switch
from
any
state
to the Interrupt Control State
(P
a
).
Through
this
operation a
program
in
any
processor
state
can communicate
with
and
initiate
the
I nterrupt Control State
(P
a)
programs.
The
Set
Program
Mask instruction permits
the
user
to specify
whether
or
not the
program
is to be
interrupted
for
any
of
the
following
errors:
1.
significance
error.
2. exponent underflow.
3. decimal overflow.
4. fixed-point overflow.
The execution
of
the Set
Program
Mask instruction causes
the
condition
code
and
program
mask bits in
the
P counter
of
the
state
in
which
the
system is
operating
to be set to the value specified
by
the
instruction.
This
instruction always changes the condition code.
OpC~e
~
~
o 7 8 11 12 15
• The RR
format
is used
for
the Supervisor Call
and
Set
Program
Mask
instructions.
For
the
Set
Program
Mask instruction,
the
R2
field is ignored.
The contents
of
the
general
register
specified
by
the
Rl field
form
the
first operand.
For
the
Supervisor Call instruction,
the
Rl
and
R2
fields
are
combined
to become
an
immediate operand. This operand does
not
refer
to
any
regis-
ter,
but
is a value which is placed in the
Interrupt
Status
Register
(ISR)
of
the
initiated
state
to provide communication
with
the
software
in
this
state.
• The condition code is changed
by
the
Set
Program
Mask instruction. The
condition code
and
program
mask
bits
of
the
current
P
counter
are
replaced
by
the
contents
of
the
general
register
(bits 2-7) specified by
the
first
address
of
the
instruction.
• No
error
interrupts
can occur
as
a
result
of
using
the
instructions
in
this
section. The Supervisor Call instruction causes
an
interrupt,
but
this
interrupt
is
the
desired result
of
its
execution.
