3.Installation of machine.
3-1. The terminal of hose connecting here, Another side of hose connect air compressor
3-2. Air hose is supplied, a terminal of hose connecting position 3-2, another side connect on 3-3
3-3. This terminal for air in. The air input from 3-1 via 3-2 to 3-3.
4.Installation finished.
4-1. After fixed all parts as per instruction, user can see two screws in this Position. Please make sure screw
fasten.
Note: Please to be sure keep air into machine before press torch trigger.
How to installation of the air compressor:

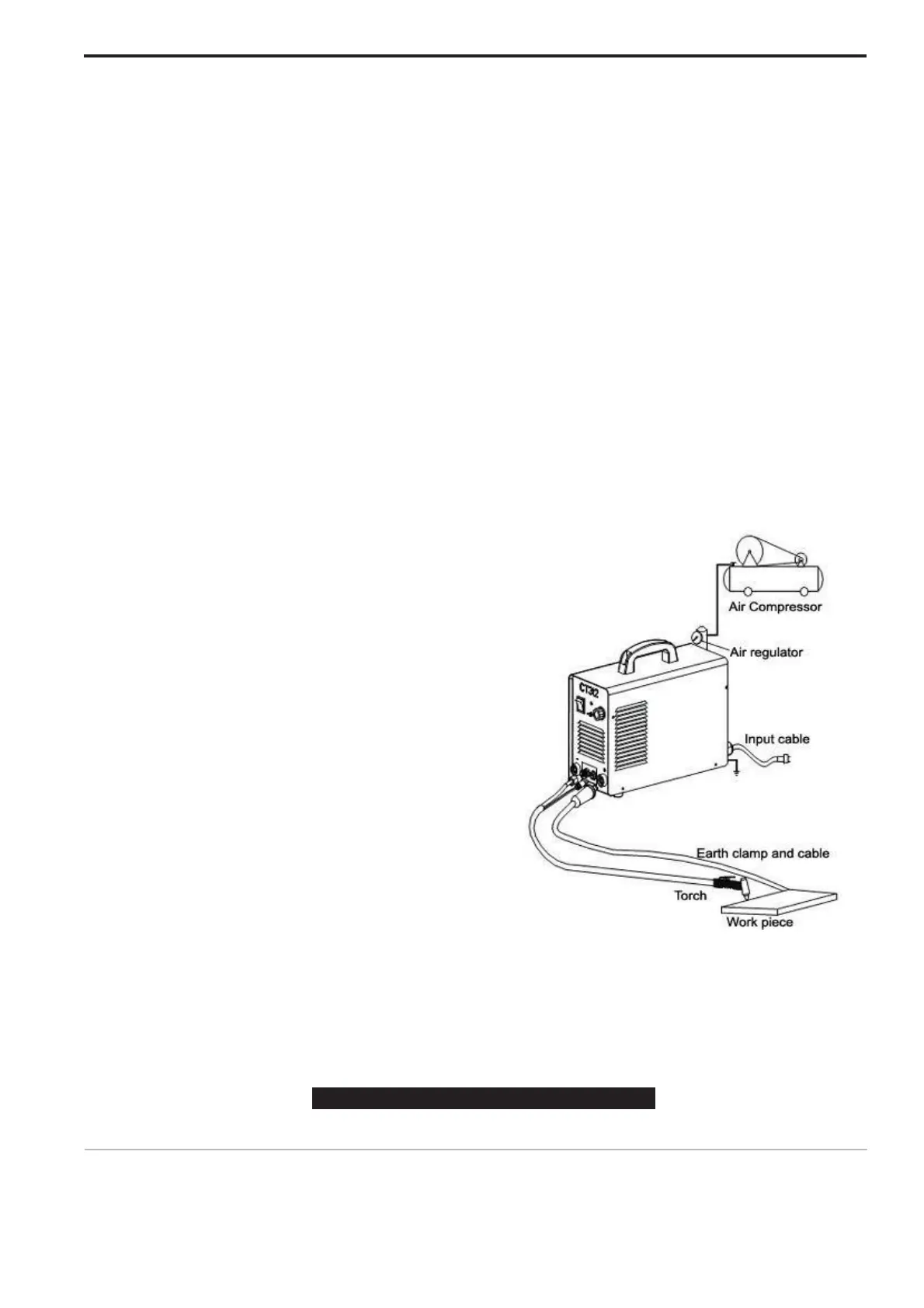

Please refer to the right drawing.
The installation and operation of the air regulator.
1) Seal the connection of the copper gas fitting and
the “IN”terminal and “OUT” terminals.
2) Connect the regulator seal to the installation place
of the regulator.
3) Install the regulator bracket to the two screws at
the top of the back of the machine.
4) Remove the mounting ring from the top of the
regulator and install the regulator to the mounting
bracket and re-attach with ring.
5) Release the gas valve, modulate the pressure of
gas to stipulated pressure and press the button
6) The gas pressure is 4 times of normal atmospheric pressure.
7) In case that the water-filtering bottle is full with water,
Remove the water.
