Operating instructions
13.2

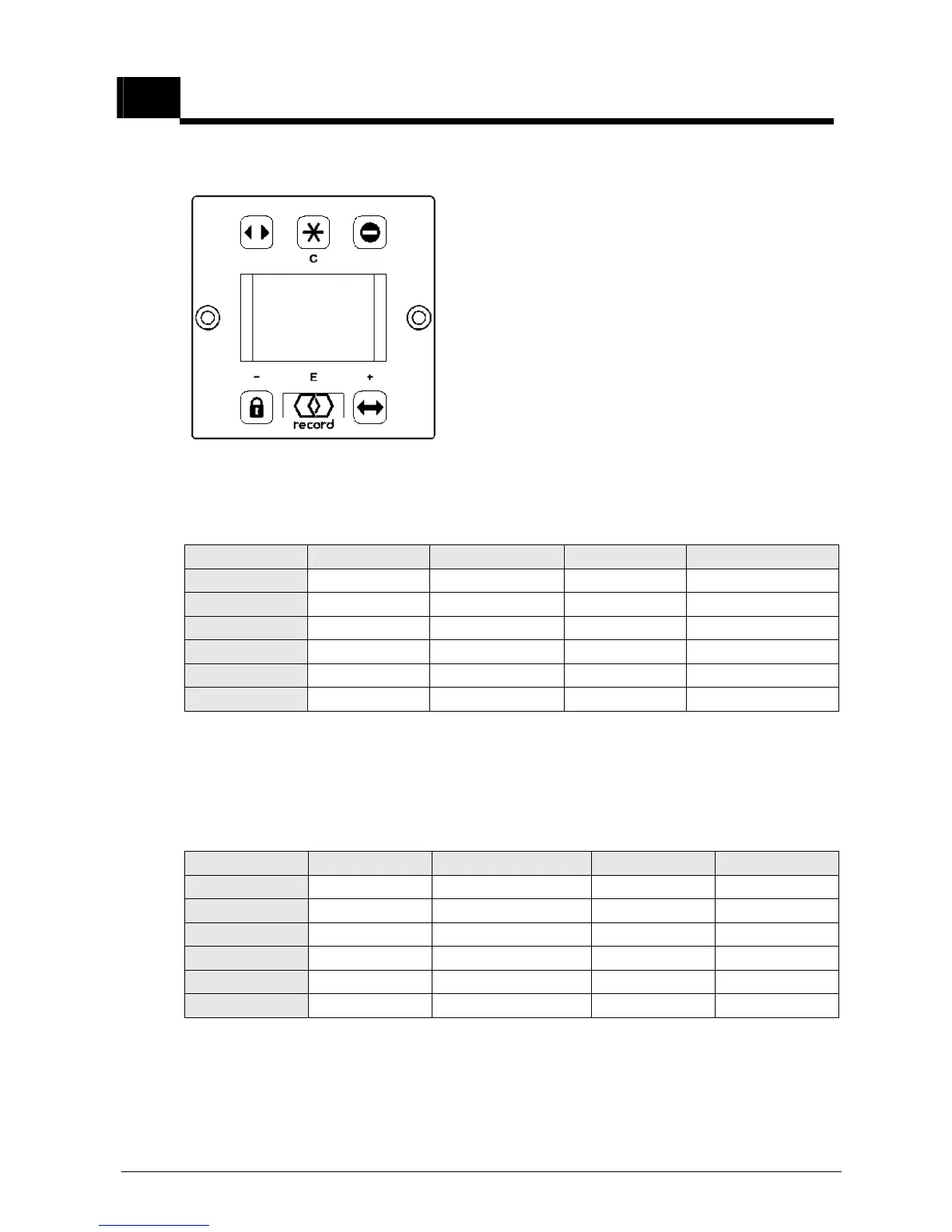

Functions of the BDE-D electronic controller (optional)
The BDE-D electronic controller is an easily op-
erated input and output device for the control
and adjustment of record door operators.
Logically arranged pushbuttons allow intuitive
operation and navigation through the operator-
specific menu. The LCD with backlight shows
data and information about the door status with
symbols and text messages.
Additional information can be found in the BDE-
D manual (No. 903 108 983).
Automatic / AUTO
Normal function
Table of signals (X marks a release reaction)
Closed Opening Open Closing
AKI x x x x
AKA x x x x
SSK x x x x
SIO x x x
SIS x x
TIPP x
One-way traffic / EXIT
In the one-way traffic mode people cannot enter the room from the outside but can
leave it from the inside.
Table of signals (X marks a release reaction)
Closed Opening Open Closing
AKI x x x x
AKA* x x x
SSK x x x x
SIO x x x
SIS x x
TIPP
* AKA is active as safety device while closing
