Page 8 of 55 12/2006 Rev. B Manual DFA 127 Full Power

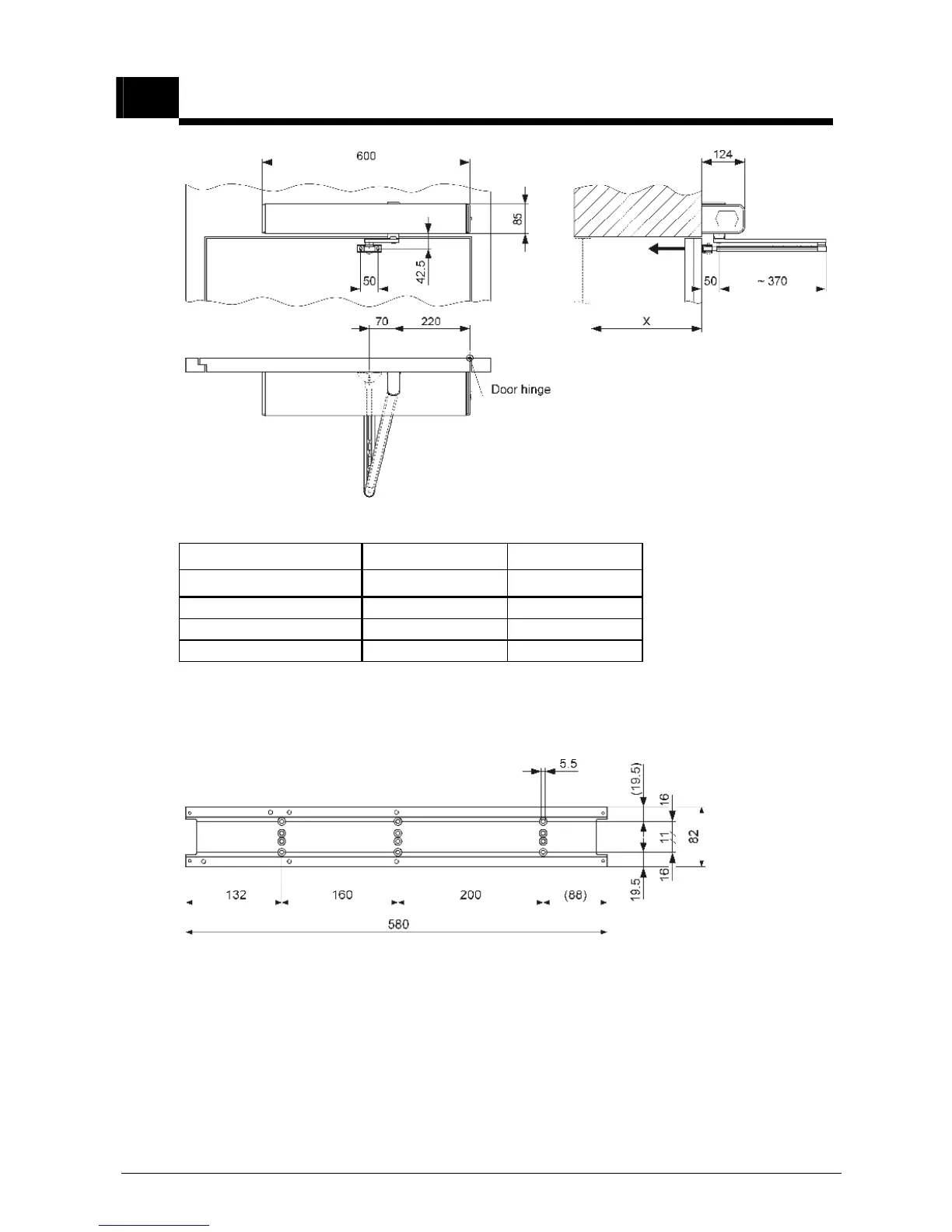

7 Installation plan for standard arms
Standard arm
Lintel dimension X Article number
(in mm)
SG 1 0…120 127.808.184
SG 2 100…220 127.808.215
SG 3 210…330 127.808.216
7.1 Chassis
