Manual DFA 127 Full Power 12/2006 Rev. B Page 9 of 55

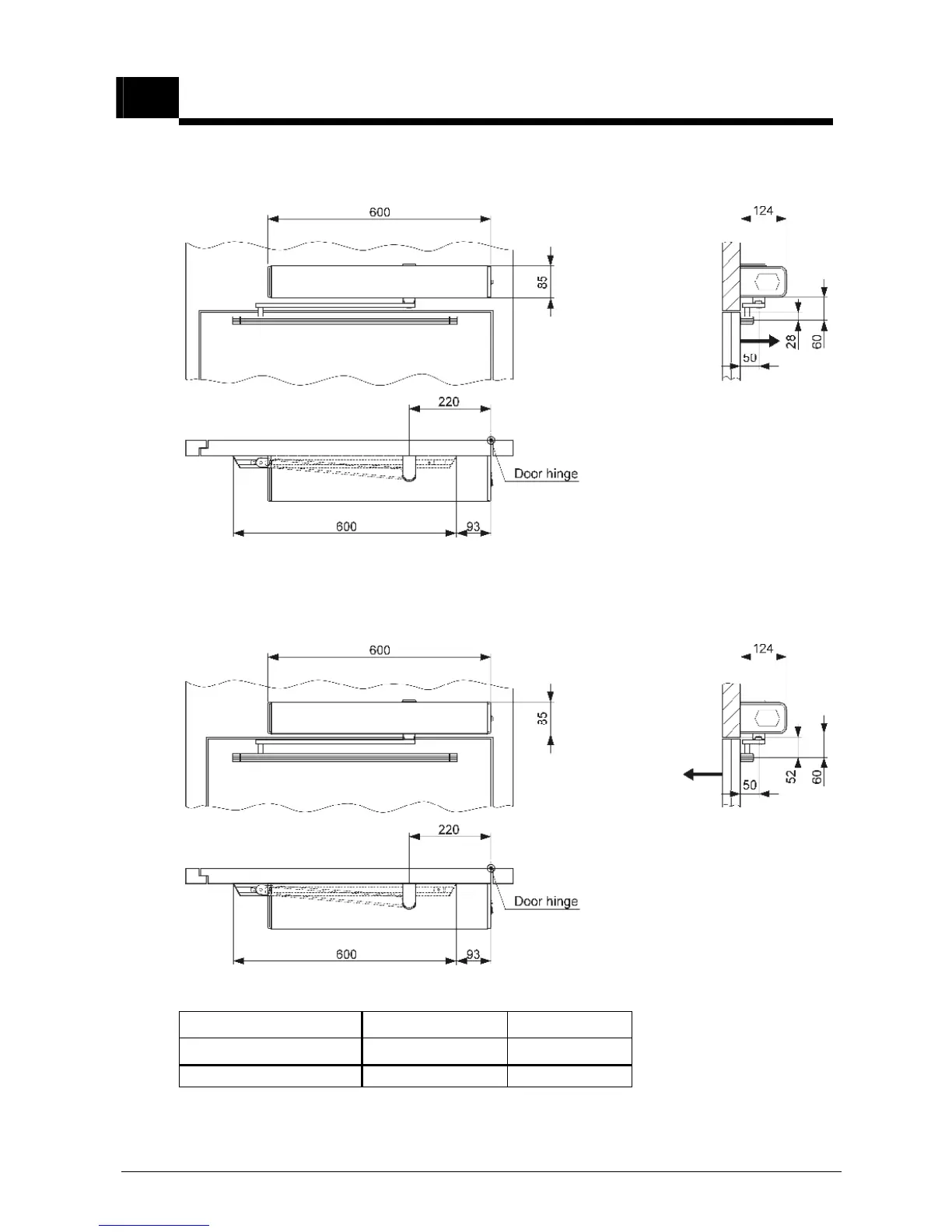

8 Installation plan for slide arms
8.1 Slide arm pulling
8.2 Slide arm pushing
Standard arm
Lintel dimension X Article number
(in mm)
GG +/- 10 127.808.183
