3 Technical Data
Dimensions: Operator 600 x 85 x 124 mm (w x h x d)
Operating voltage:
230V∼
Power consumption: Standby 13 W, rated power 67 W
Max. torque: 50 Nm
Opening angle: adjustable from 70° to 115°
Time delay: adjustable from 0 to 20 seconds
Opening speed: adjustable from 3 to 20 seconds
Closing speed: adjustable from 5 to 20 seconds
Noise emission -18 dB
Environment condi-
tions
Temperature range: -15 to + 50°C
Humidity range: up to 85% relative humidity, non condensing
3.1 Permissible door leaf weights and door widths

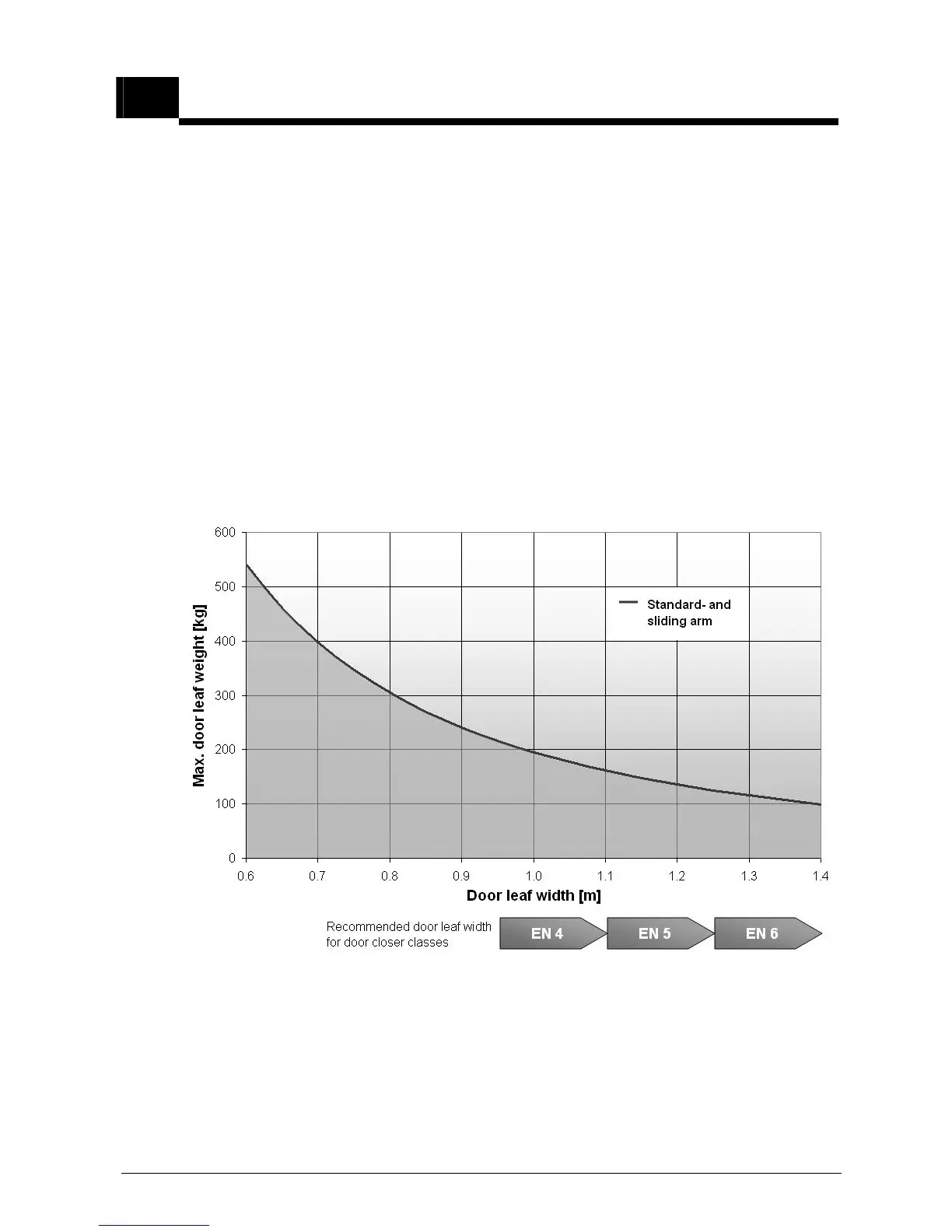

The curves are calculated using the following formula:
J = 1/3 × m × b
2
Standard arms : J max. 65 kgm
2
Key :
J = mass moment of inertia [kgm
2
]
Slide arms : J max. 65 kgm
2
m = door leaf weight [kg]
b = door leaf width [m]
