Manual DFA 127 Full Power 12/2006 Rev. B Page 7 of 55

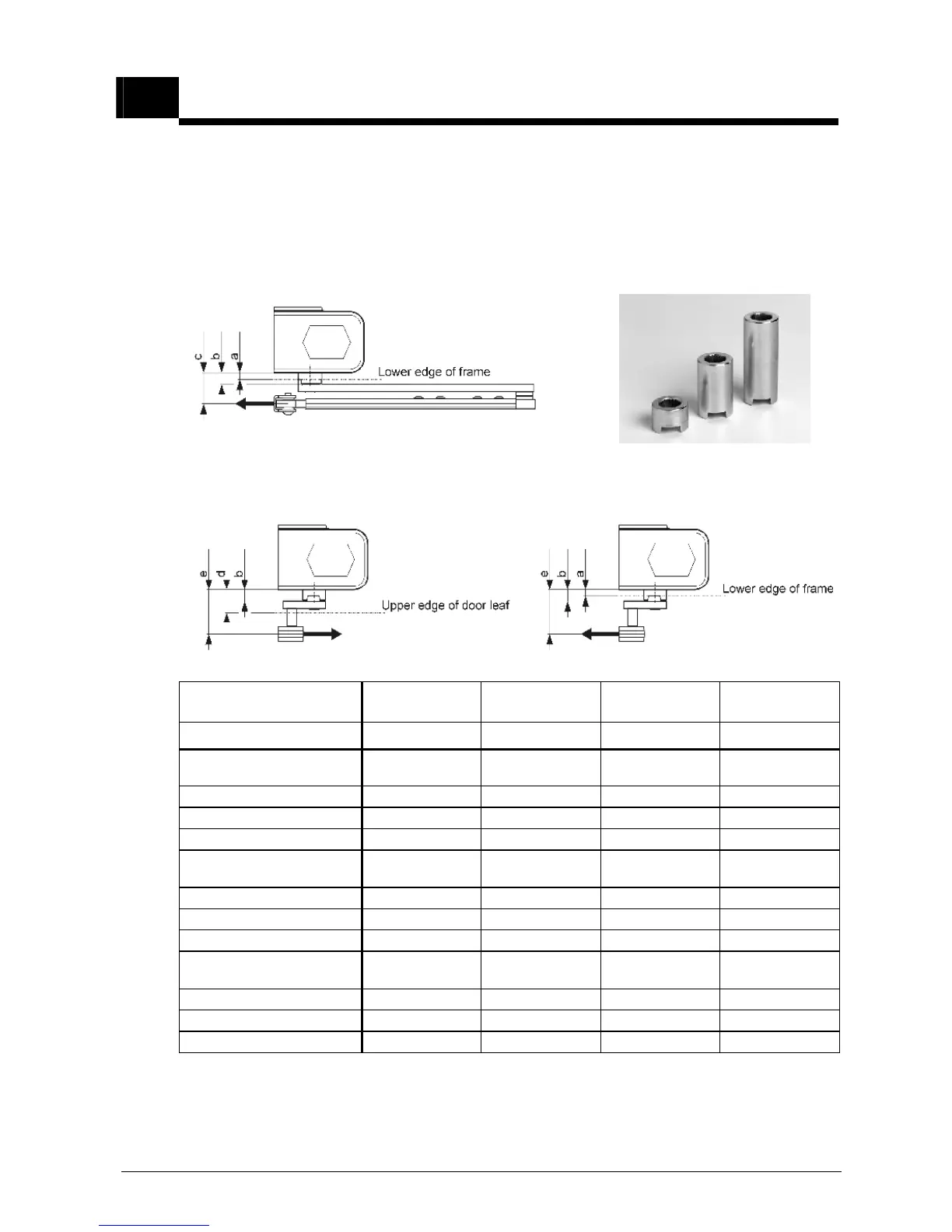

6 Lever adapters for arms
The lever adapters are the joining elements between the operator drive shaft and
the arm lever. They also serve as extension pieces to compensate height differ-
ences between the operator and the connector to the arms. A lever adapter 20 is
included in each delivery.
6.1 Standard arm
6.2 Slide arms pulling and pushing
Type of arms
Lever adapter
20
Lever adapter
50
Lever adapter
65
Lever adapter
80
(dimensions in mm*)
127.808.211 127.808.212 127.808.218 127.808.213
Standard arms
A 8 38 53 68
B 15 45 60 75
c (= ‚D’) 42.5 72.5 87.5 102.5
Slide arms pulling
B 15 45 60 75
d (= ‚D’) 32 62 77 92
E 60 90 105 120
Slide arms pushing
a 8 38 53 68
b 15 45 60 75
e (= ‚D’) 60 90 105 120
* The measurements indicated refer to the lower edge of the operator. If the
measurement is taken from the lower edge of the chassis, + 1.5 mm must be
added
