RED DSMC SIDE HANDLE User Manual

INSERT A REDVOLT XL
1. Align and insert the REDVOLT XL.
2. Apply pressure to the battery until a click is heard, signaling the battery is properly seated.

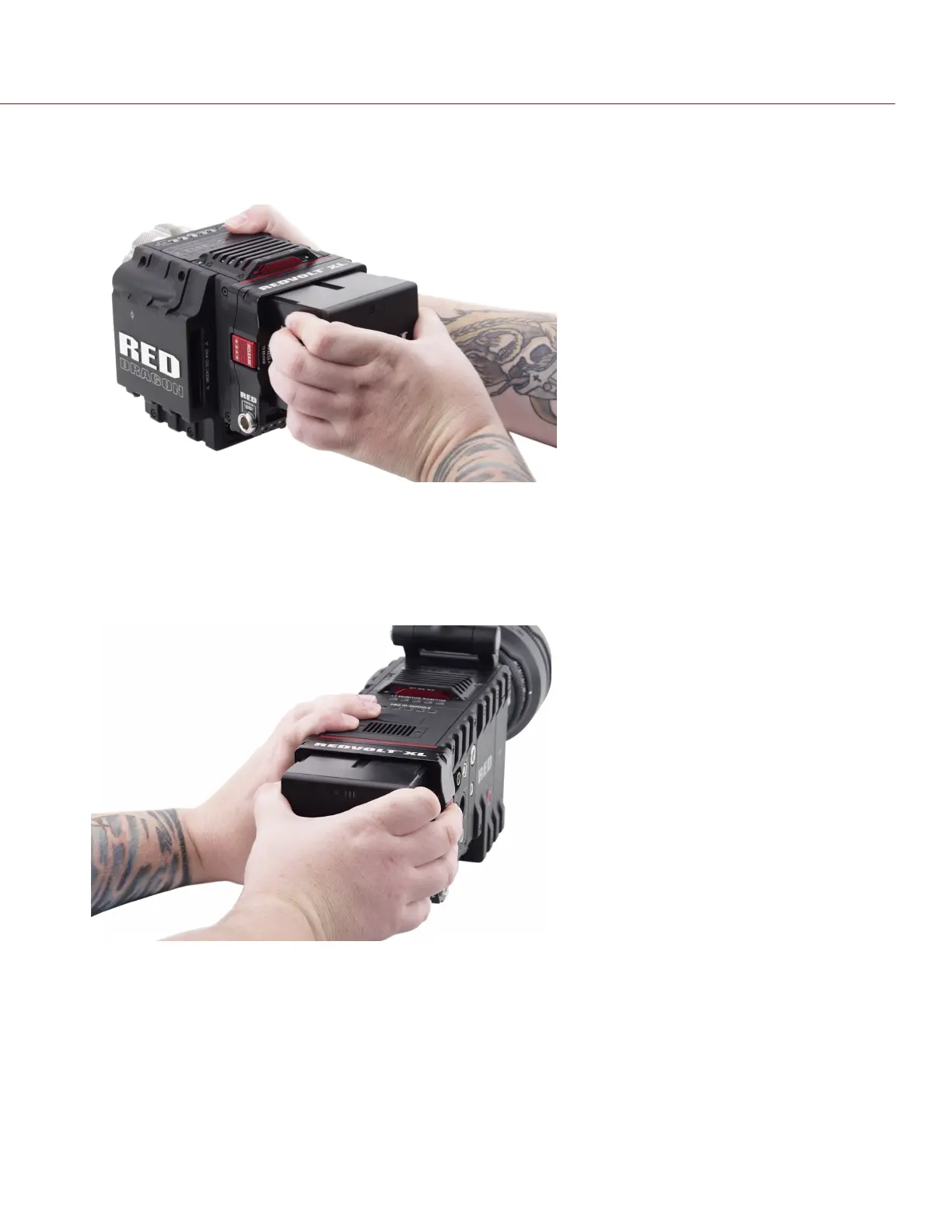

Figure: Insert a REDVOLT XL Battery
REMOVE A REDVOLT XL
1. Press the battery release buttons on both sides of the REDVOLT XL Module.
2. Remove the REDVOLT XL.
Figure: Remove a REDVOLT XL Battery
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 41
RED DSMC POWER OPERATION GUIDE

RED DSMC SIDE HANDLE Specifications

General

Brand	RED
Model	DSMC SIDE HANDLE
Category	Camera Accessories
Language	English
