CAN BACKPACK QUICKPLATE (SHORT) CONNECTORS

The Backpack Quickplate (Short) offers two (2) 0B 2-pin AUX ports that provide a maximum combined output of 3.8 A.

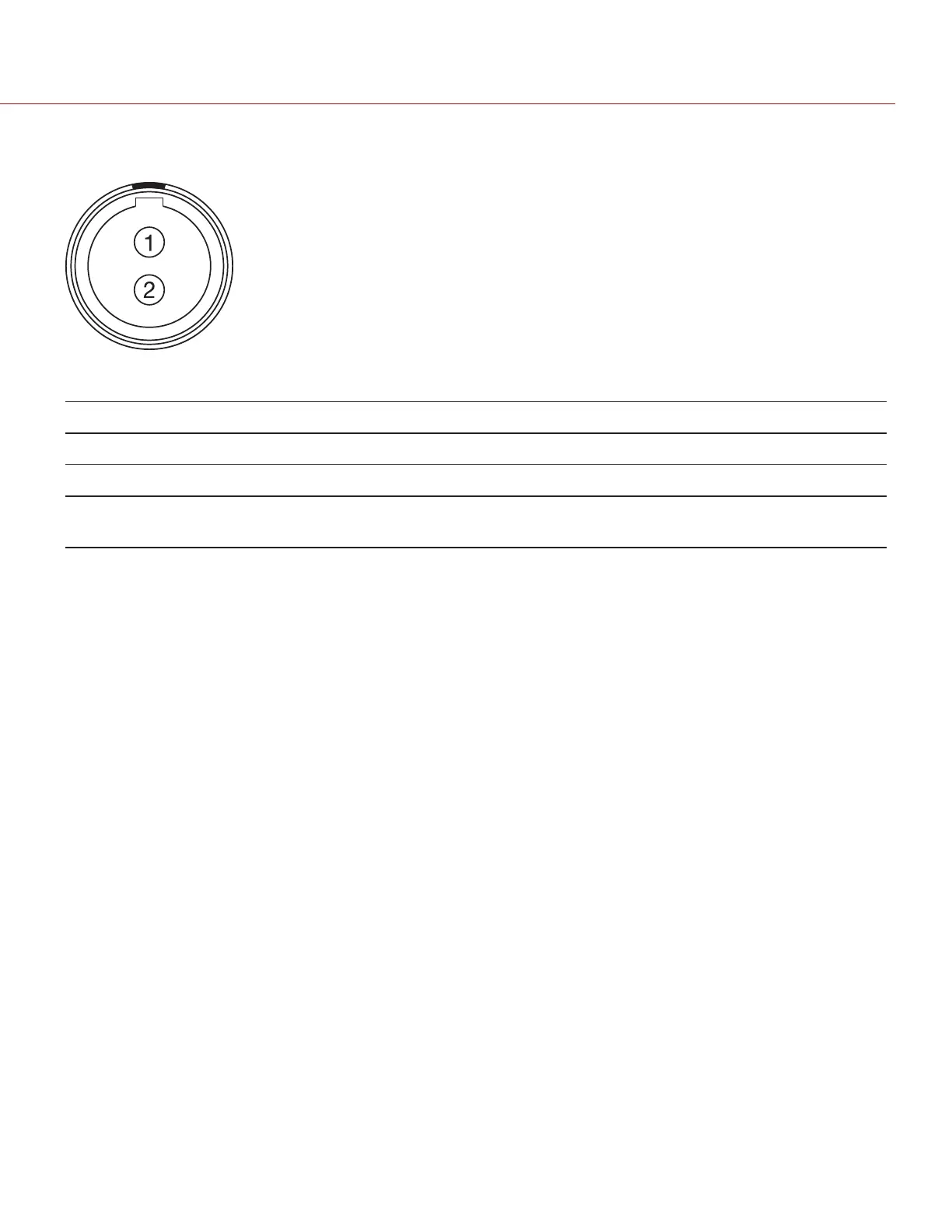

Figure: Backpack Quickplate (Short) AUX Connector

2-PIN 0B LEMO AUX CONNECTORS

PIN SIGNAL DESCRIPTION DIRECTION

1 GROUND Common ground N/A

2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery

pass-through power

Out

NOTE: Mating connector is EEG.0B.302.CLL.
