AUX POWER OUT
The 2-pin 0B LEMO AUX POWER OUT port provides a combined maximum 3.8 A of current for camera accessories.
That total current is provided through one AUX POWER OUT port, or split between the two ports.
NOTE: The AUX POWER OUT port is always active whenever a charged REDVOLT XL battery is attached to the
module, regardless of camera state or presence of a DC power source.

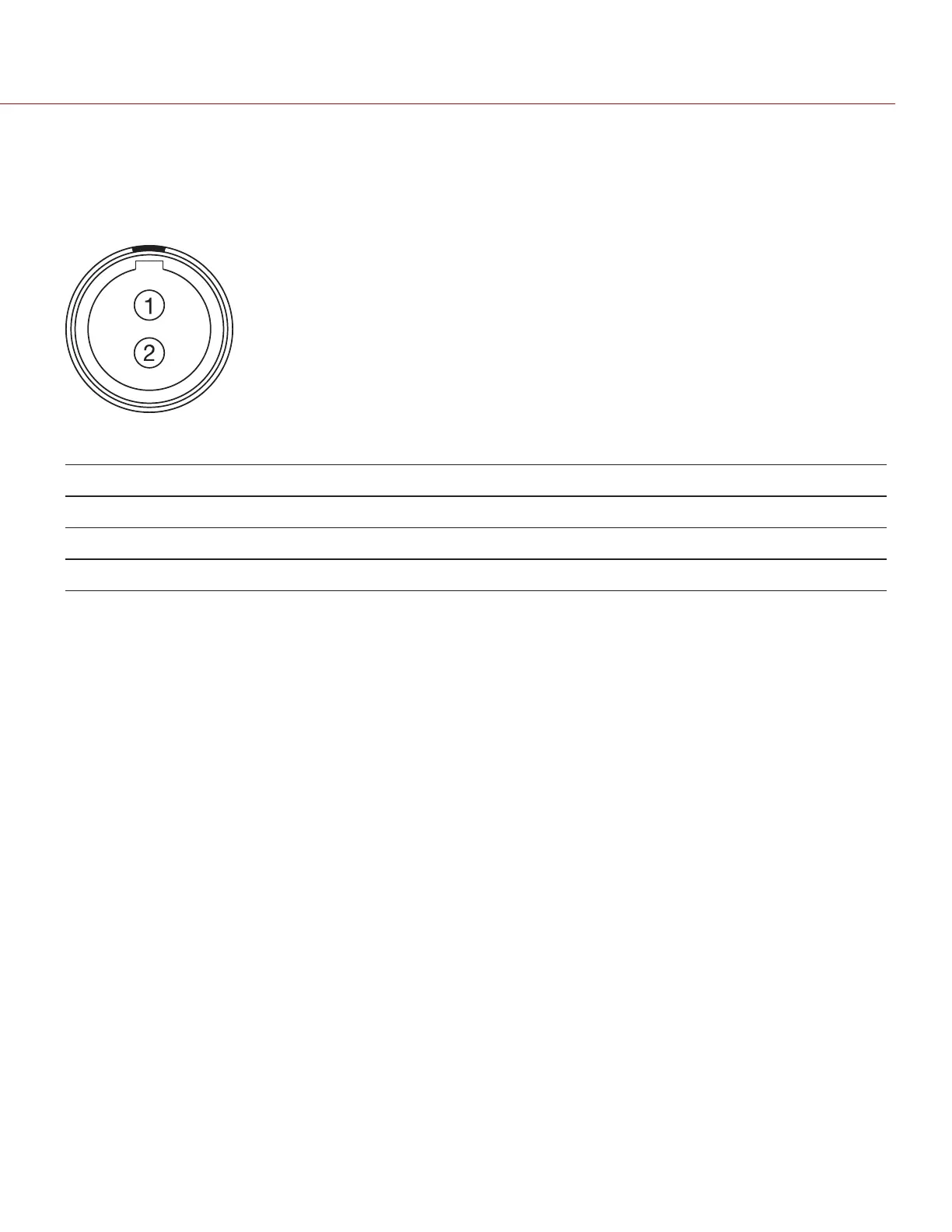

Figure: Front Face of AUX POWER OUT Connector
2-PIN 0B LEMO AUX POWER OUT CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-through power Out
NOTE: Mating connector is EEG.0B.302.CLL.
