DSMC2 V-LOCK BATTERY MODULE PRO CONNECTORS

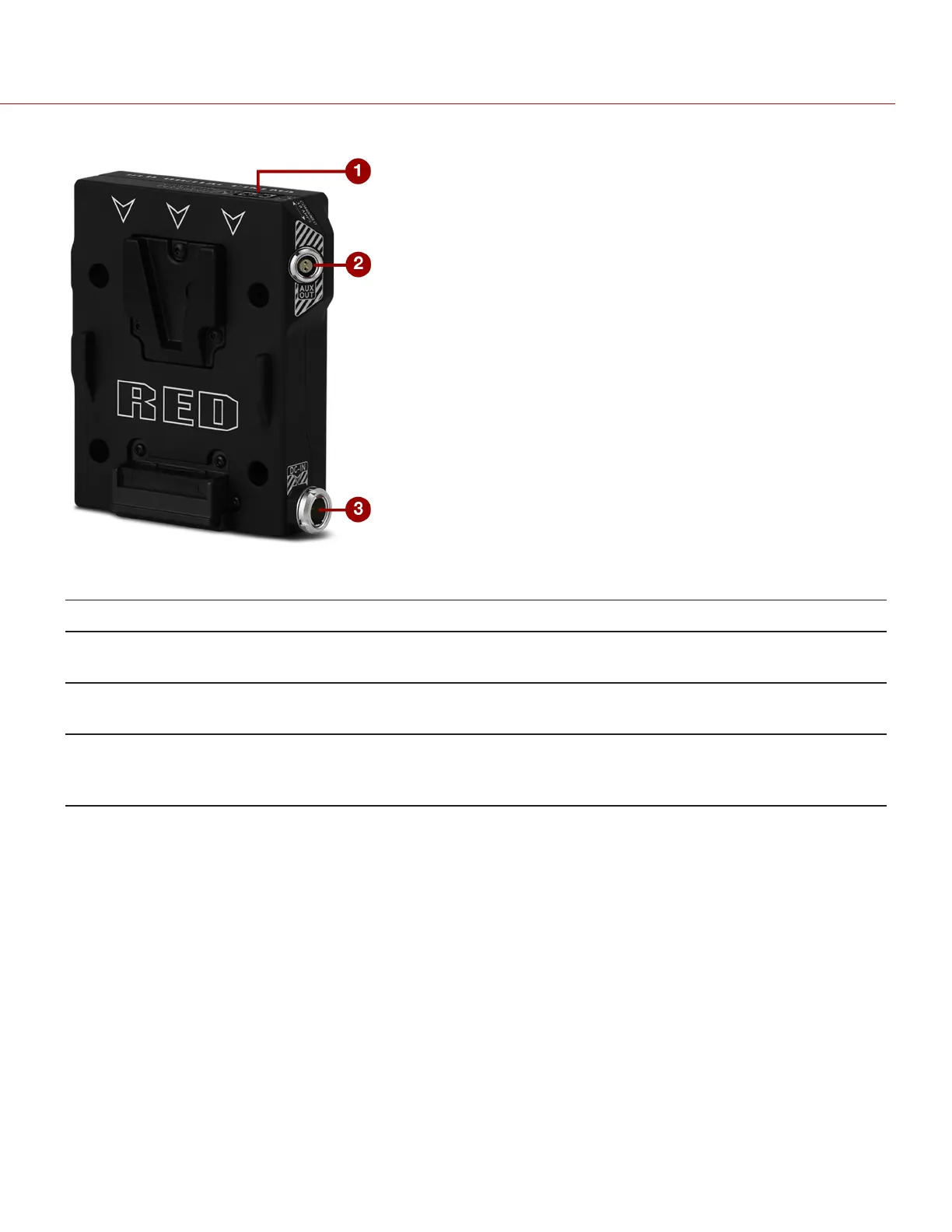

Figure: DSMC2 V-LockBattery Module Pro
# CONNECTOR CONNECTORTYPE CONNECTORFUNCTION
1 AUX Power (P-TAP) - 3.8 A
1
2-pin Female Provides a 3.8 A max current when the module is
receiving power
2 AUX POWER OUT - 3.8 A
1
2-pin 0B LEMO Provides a 3.8 A max current out for 2-pin based
accessories when the module is receiving power
3 DC IN 6-pin 1B LEMO Provides power to the camera system, the AUX
POWER OUT port, and an approximate 2 A charge
current to an attached battery
1. The AUX Power (P-TAP) and AUXPOWEROUT connectors share a 3.8 A max current. For example, if one (1) port is drawing 2A, the other
port can provide up to 1.8A.
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 56
RED DSMC POWER OPERATION GUIDE
