RED DSMC SIDE HANDLE User Manual

AUXPOWER (P-TAP)
The DSMC2 V-Lock Battery Module Pro offers one (1) P-Tap connector that provides power (3.8 A max) for camera
accessories.

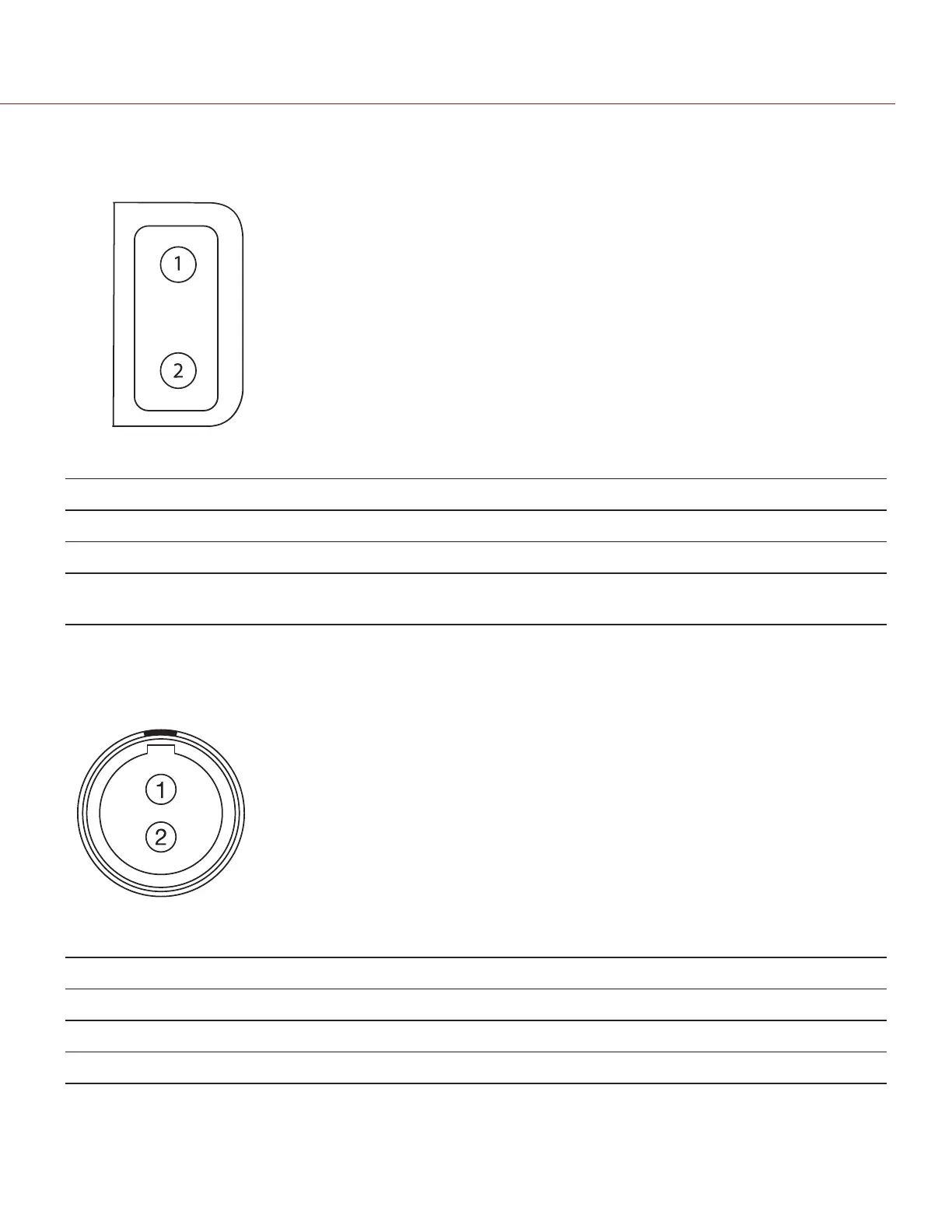

Figure: DSMC2 V-Lock Battery Module Pro P-Tap Connector
2-PIN P-TAP CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-
through power
Out
AUX POWER OUT
The DSMC2 V-Lock Battery Module Pro offers one (1) AUX POWEROUT port that provides power (3.8 A max) for
camera accessories.
Figure: Front Face of AUX POWER OUT Connector
2-PIN 0B LEMO AUX POWER OUT CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-through power Out
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 57
