COPYRIGHT © 2014 RED.COM, INC
RED DSMC OPERATION GUIDE
955-0020_V5.1, REV-H | 16
DSMC 1.8" SSD SIDE MODULE
RED offers the following DSMC 1.8" SSD SIDE MODULES:
DSMC 1.8" SSD SIDE MODULE: Mounts to any standard aluminum DSMC BRAIN.
DSMC 1.8" SSD SIDE MODULE (DRAGON): Mounts to a DSMC with a RED DRAGON sensor, and is only avail-
able with a DSMC with a RED DRAGON sensor.
DSMC 1.8" SSD SIDE MODULE (CARBON FIBER DRAGON): Mounts to a carbon fiber DSMC BRAIN, and is only
available with a carbon fiber DSMC BRAIN.
Each DSMC 1.8" SSD SIDE MODULE attaches to the DSMC so that you can mount a REDMAG 1.8" SSD to
your camera.
Each DSMC 1.8" SSD SIDE MODULE has the same EVF/LCD LEMO connector, user keys, REC button, and
LED as the RED MINI-MAG SIDE SSD MODULE.
WARNING: The DSMC 1.8" SSD SIDE MODULE is NOT HOT SWAPPABLE, meaning you cannot remove or install
the module while the camera is powered on. Before installing or removing the module you MUST power down
the camera. Failure to do so may result in damage to the module or DSMC that will not be covered under war-
ranty.
SIDE SSD MODULE CONTROLS
This section describes the controls for all of the side SSD modules.
CONTROL DESCRIPTION
User Key 1 Programmable key
User Key 1 + 2 Press: Eject Media
User Key 2 Programmable key
User Key 1 + 2 Press: Eject Media
REC button Programmable key
Full Press: Record Toggle
Half Press: AF Start

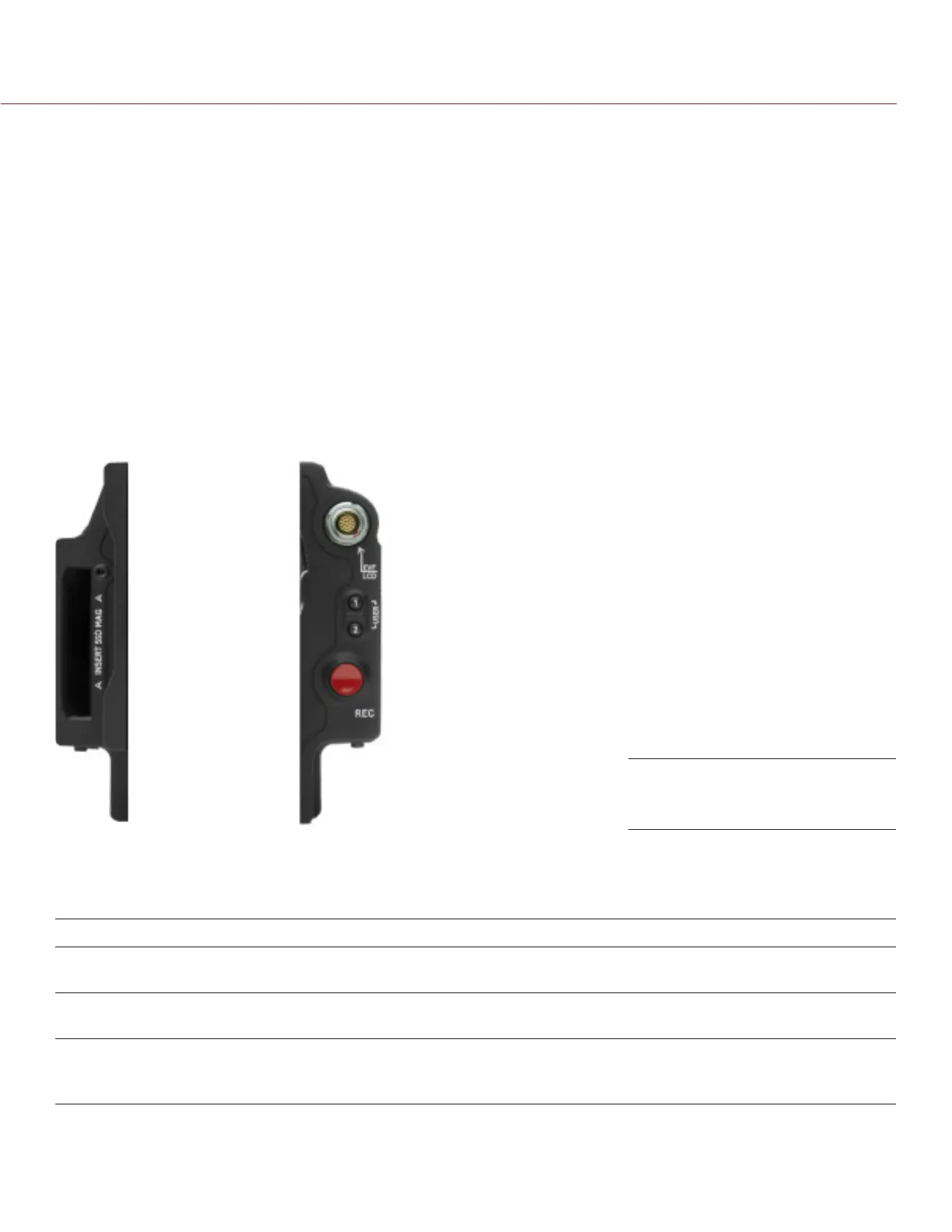

DSMC 1.8" SSD SIDE MODULE
(Rear and Front)
