COPYRIGHT © 2014 RED.COM, INC
RED DSMC OPERATION GUIDE
955-0020_V5.1, REV-H | 128
DC IN (POWER INPUT)
The 6-pin LEMO connector accepts DC input power between +11.5 V and +17 V DC. Power conditioning pro-
vides protection against reverse-polarity connection, ESD, under and over voltage, and over current.
PIN SIGNAL DESCRIPTION
1 +VBATT Power input, +11.5 to +17 V DC
2 +VBATT N/A
3 SCL-BATT Serial Battery Bus Clock
4 GROUND Power Return (Camera Ground)
5 GROUND N/A
6 SCA-BATT Serial Battery Bus Data
WARNING: It is very important that both pairs of +VBATT and GROUND pins are wired up. DO NOT fabricate
power cables with just one each of +VBATT and GROUND pins wired, as this may cause damage to the cam-
era’s power supply; this is not covered by Warranty.
NOTE: Two pre-fabricated DC Power input cables are available from RED Digital Cinema.
P/N 790-0138 – DC Power – RED BRICK
®
QUICKPLATE to Camera – 18 in. (0.5m)
P/N 790-0164 – DC Power – XLR to Camera – 10 ft. (3m)
HDMI OUT
The HDMI output supports an HDTV and PC monitor compatible 10-bit 4:2:2 progressive scan video signal
(with embedded audio) at 720p and 1080p resolution.
In addition to video data, the HDMI output also provides 4 channels of embedded audio.
NOTE: Default setting is PREVIEW.
NOTE: HDMI video output is Progressive Scan; it does not support 1080i or 1080PsF modes.

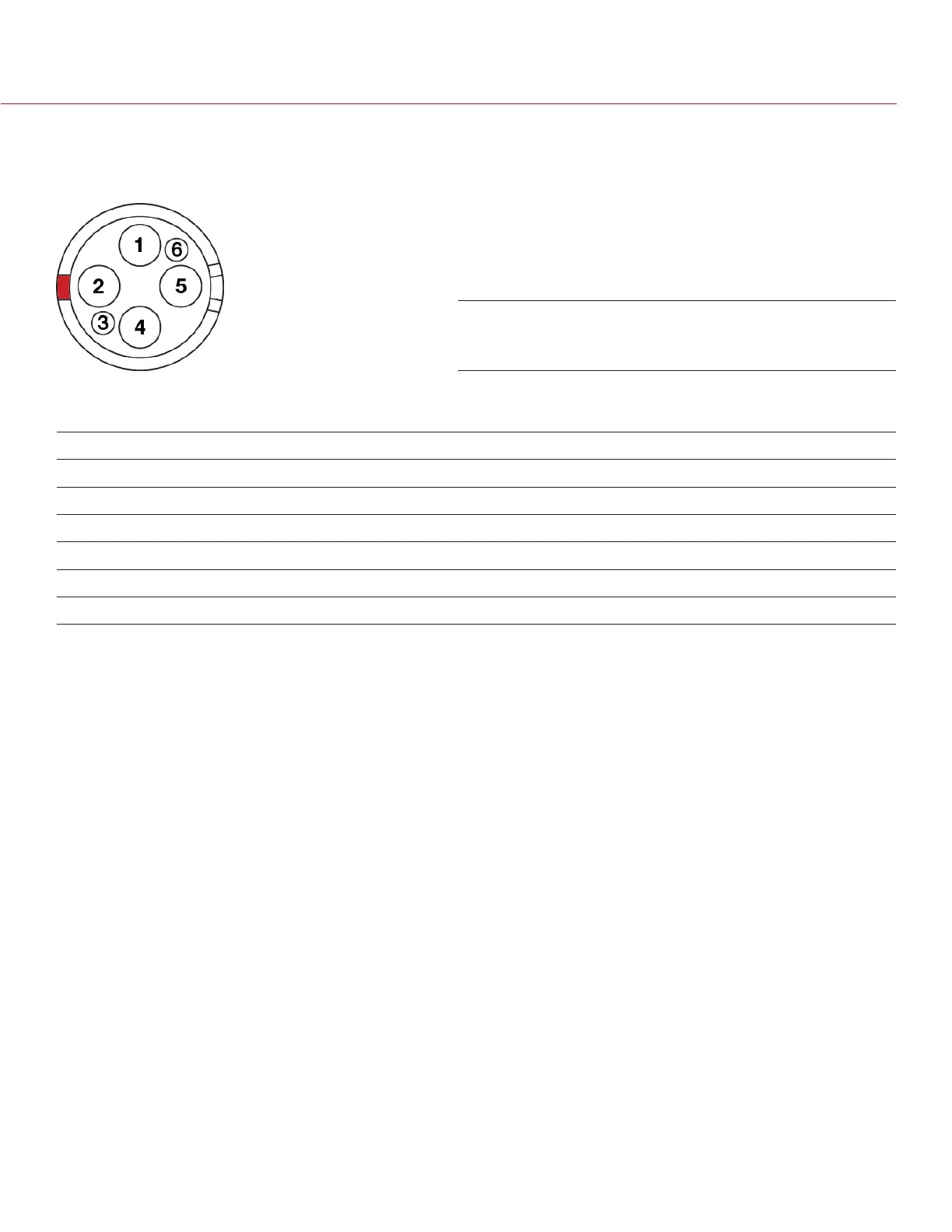

DC In Power Input Connector
Mating Connector: LEMO FGJ.1B.306.CWLD72Z
