RED DSMC OPERATION GUIDE

955-0020_V5.1, REV-H | 123

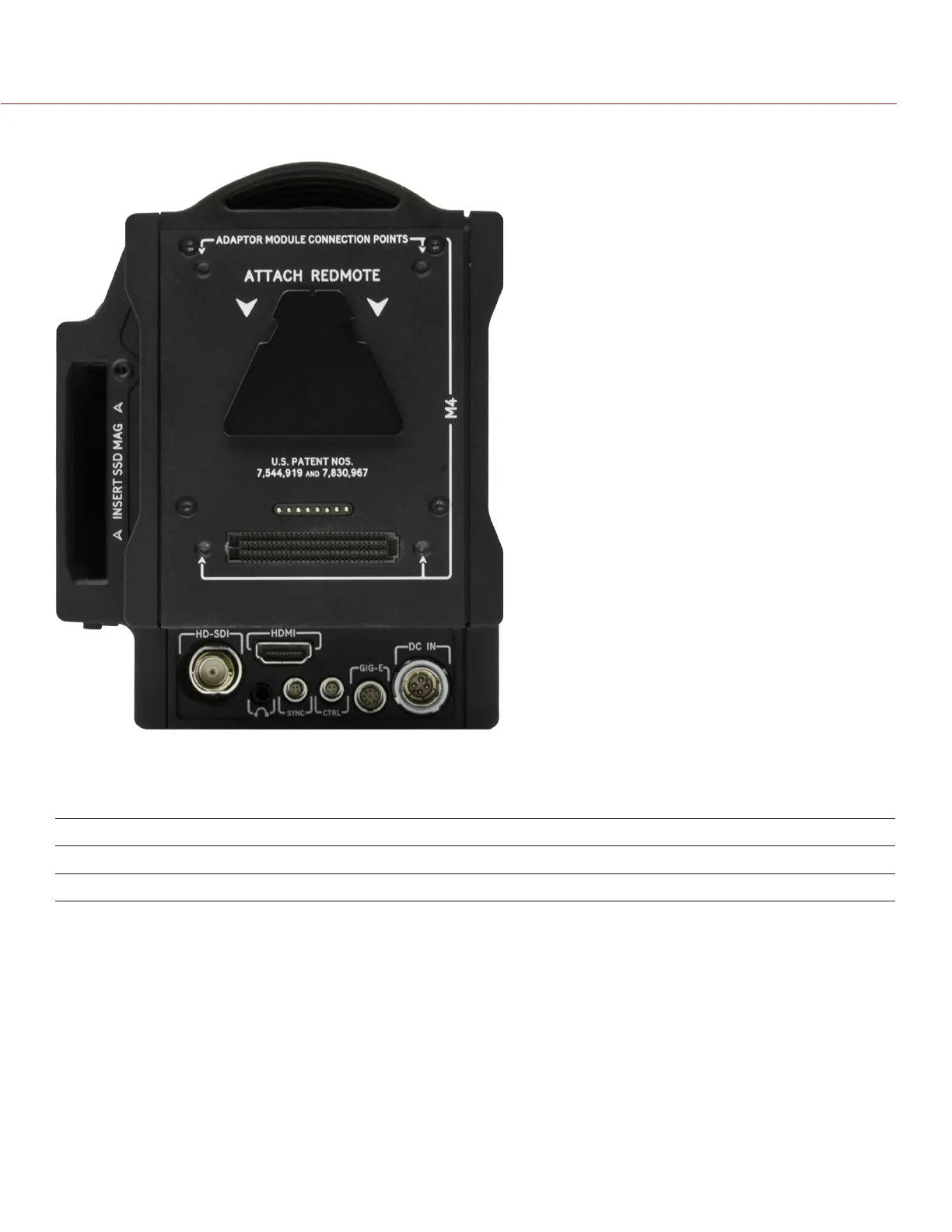

CAMERA BRAIN REAR

HD-SDI

A standard 75 Ohm BNC connector provides a broadcast specification high definition video output.

PIN SIGNAL DESCRIPTION DIRECTION

Center HD-SDI SMPTE-292M HD-SDI Out

Shield/Screen GROUND Camera ground N/A

The HD-SDI output provides a 720p progressive scan video feed operating at 50.00 or 59.94 Hz or a 1080p

10-bit 4:2:2 progressive scan video feed operating at 23.98, 24.00, 25.00 or 29.97 Hz when in 1.5GHz HD-SDI

mode, or a 1080p 10-bit 4:2:2 progressive scan video feed operating at a 50.00 or 59.94 Hz when in 3GHz

HD-SDI mode.

In addition to video, the HD-SDI output also provides two channels of embedded audio, Time of Day and Edge

timecode, record Tally flag and Clip Name information as SMPTE RP-188 VITC2 HANC metadata.

NOTE: Default setting is PROGRAM.

NOTE: HD-SDI video output is Progressive Scan; it does not support 1080i or 1080PsF modes.
