RED DSMC OPERATION GUIDE

955-0020_V5.1, REV-H | 54

GENERAL TAB

You can enable/disable and select the location (Relative To), color, and opacity of the following elements:

 Center: The center crosshair.

 Grid: Rule-of-thirds grid.

 Shading: The shaded region outside of the area of interest.

TEST SIGNALS

Permits the video monitor outputs to be replaced with one of the following video test patterns:

 Chip Chart

 SMPTE Bars

 LUMA RAMP

To enable a test signal, select the test signal box. To exit the test signal, tap the touchscreen once or press the

Enter or Menu button on the DSMC SIDE HANDLE or REDMOTE.

You can also enable an Audio Tone while a test pattern is active.

NOTE: RED DSMC test signals are not recordable; they are provided to help align external video monitors con-

nected via the HD-SDI or HDMI outputs.

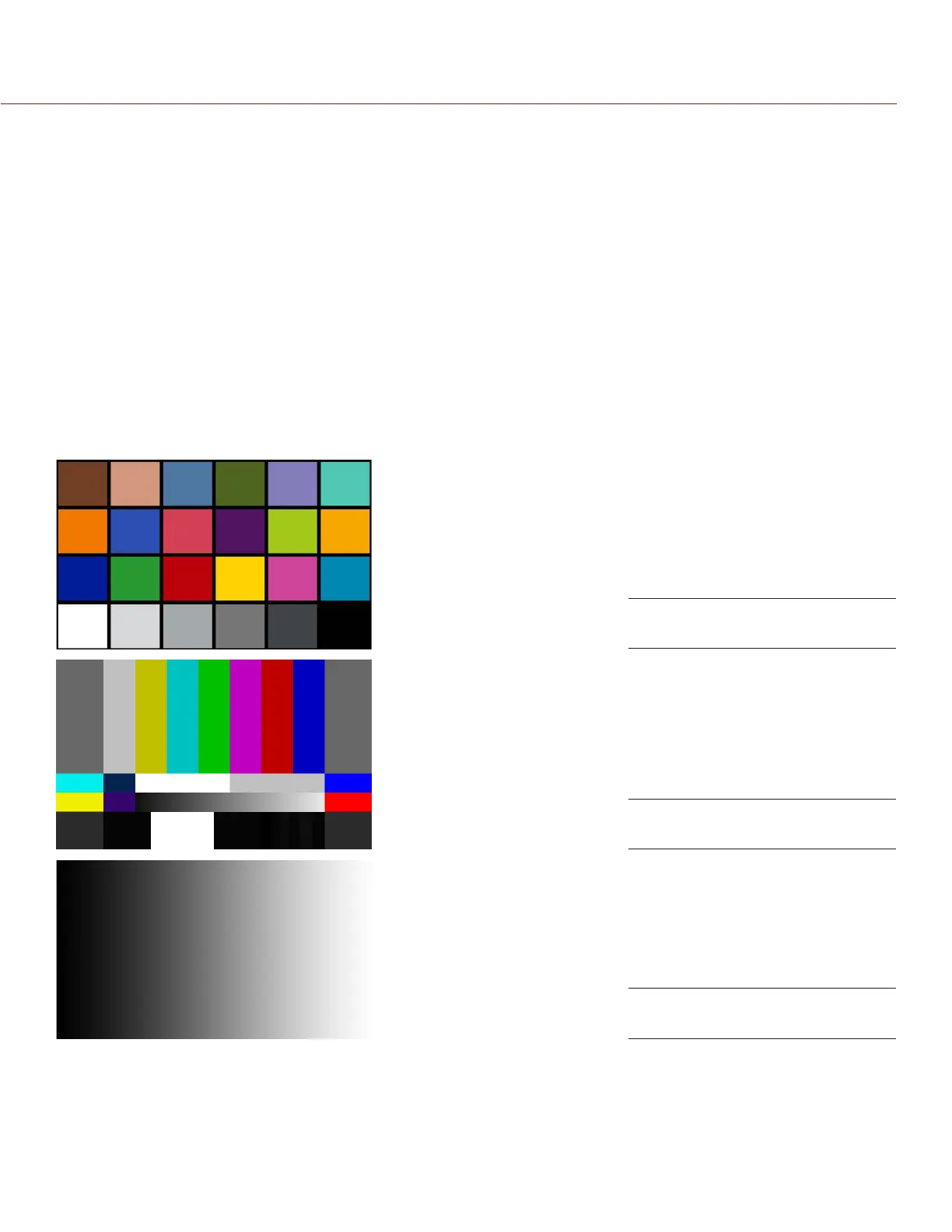

Chip Chart

SMPTE Bars with Pluge Pulse

Luma Ramp
