RED DSMC OPERA
TION GUIDE
COPYRIGHT © 2014 RED.COM, INC
955-0020_V5.
1
, REV
-
H
|
81
an SSD. Select
OK
to continue.
The system initializes and then makes two (2) passes through the following phases of the calibration:
‒
Capturing
‒
Analyzing
‒
Erasing
‒
Programming
9.

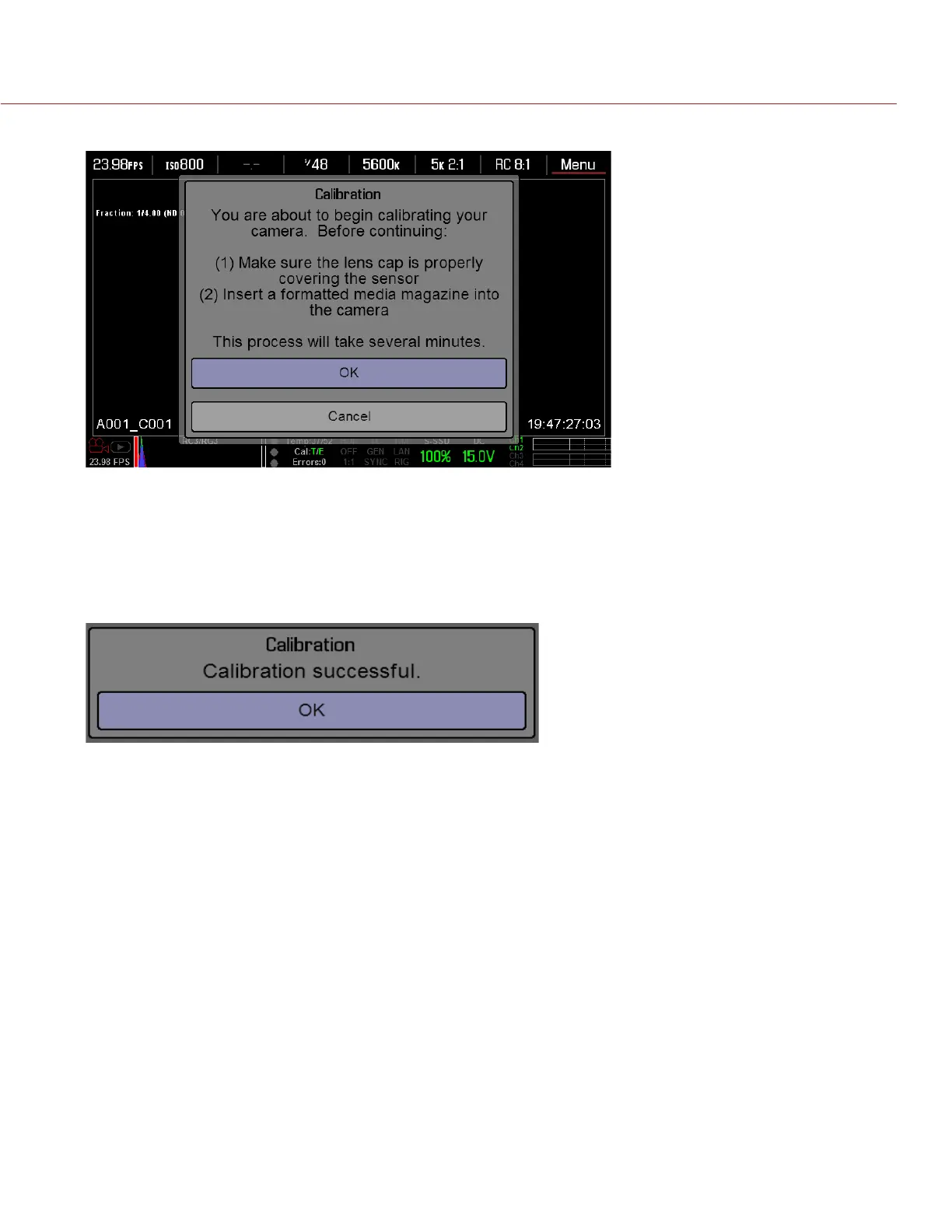

When the Calibration Successful dialog displays, select
OK
to complete black shading calibration.
The new calibration map is automatically selected.
