RED WEAPON 6K - DSMC 2 Base Expander

COPYRIGHT © 2015 RED.COM, INC
RED DSMC OPERATION GUIDE: WEAPON
955-0116_V6.1, REV-H | 162
DSMC
2
BASE EXPANDER
7
6
5
4
3
2
1

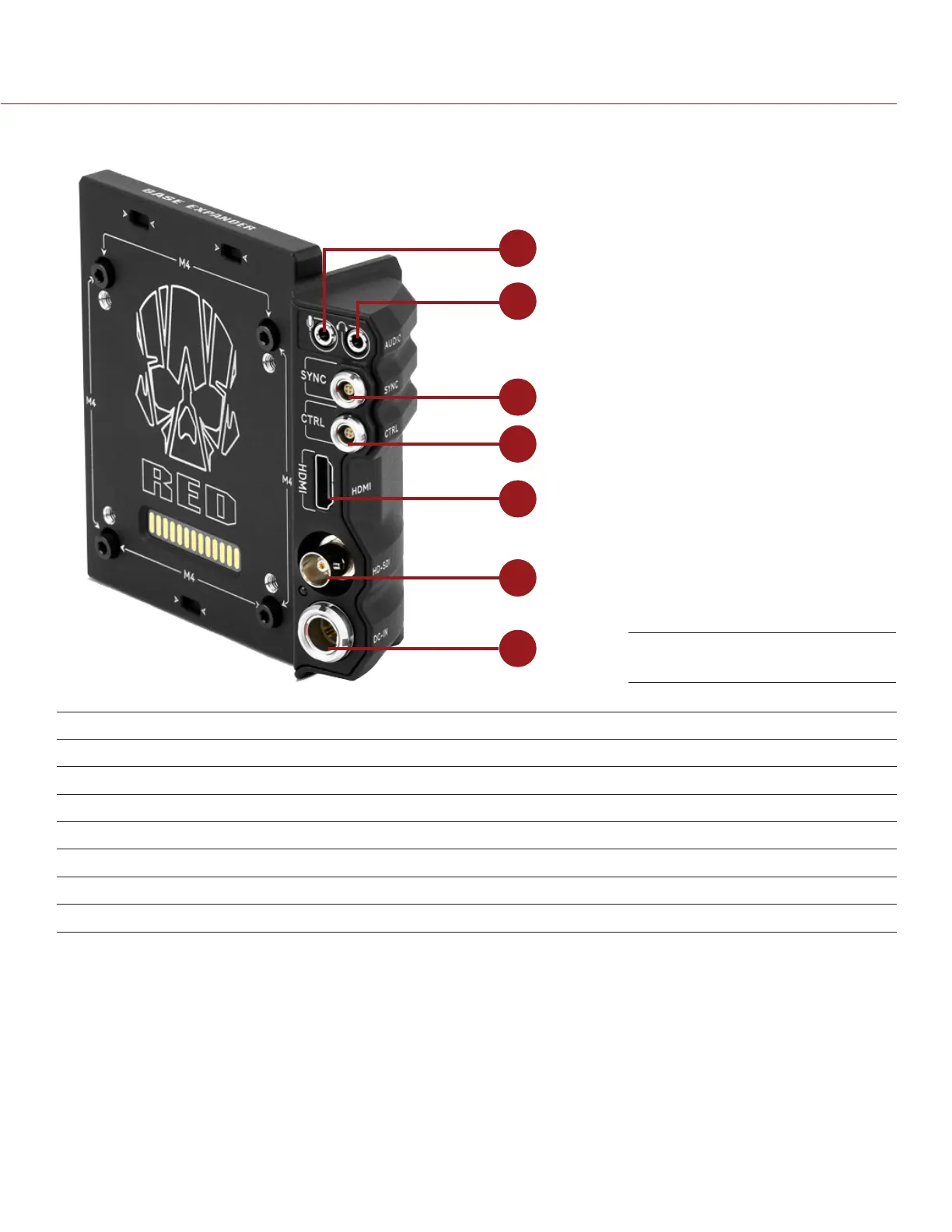

# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 Stereo Microphone 3.5mm stereo “Stereo Microphone” on page 169
2 Headphone Jack 3.5mm stereo “Headphone” on page 169
3 SYNC 4-pin 00B LEMO “SYNC (Video Sync In)” on page 166
4 CTRL 4-pin 00B LEMO “CTRL (RS232 Control)” on page 168
5 HDMI
®
HDMI “HDMI Out” on page 166
6 HD-SDI BNC “3G-SDI (HD-SDI) Out” on page 165
7 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 170
DSMC
2
Base Expander
