RED DSMC OPERATION GUIDE: WEAPON
955-0116_V6.1, REV-H | 41
This chapter describes the WEAPON
®
Basic Menu, controls, including:
“Upper Status Row (Basic Menu)” on page 42
“Live Action Area” on page 46
“Lower Status Row” on page 47
“Navigation Controls” on page 52

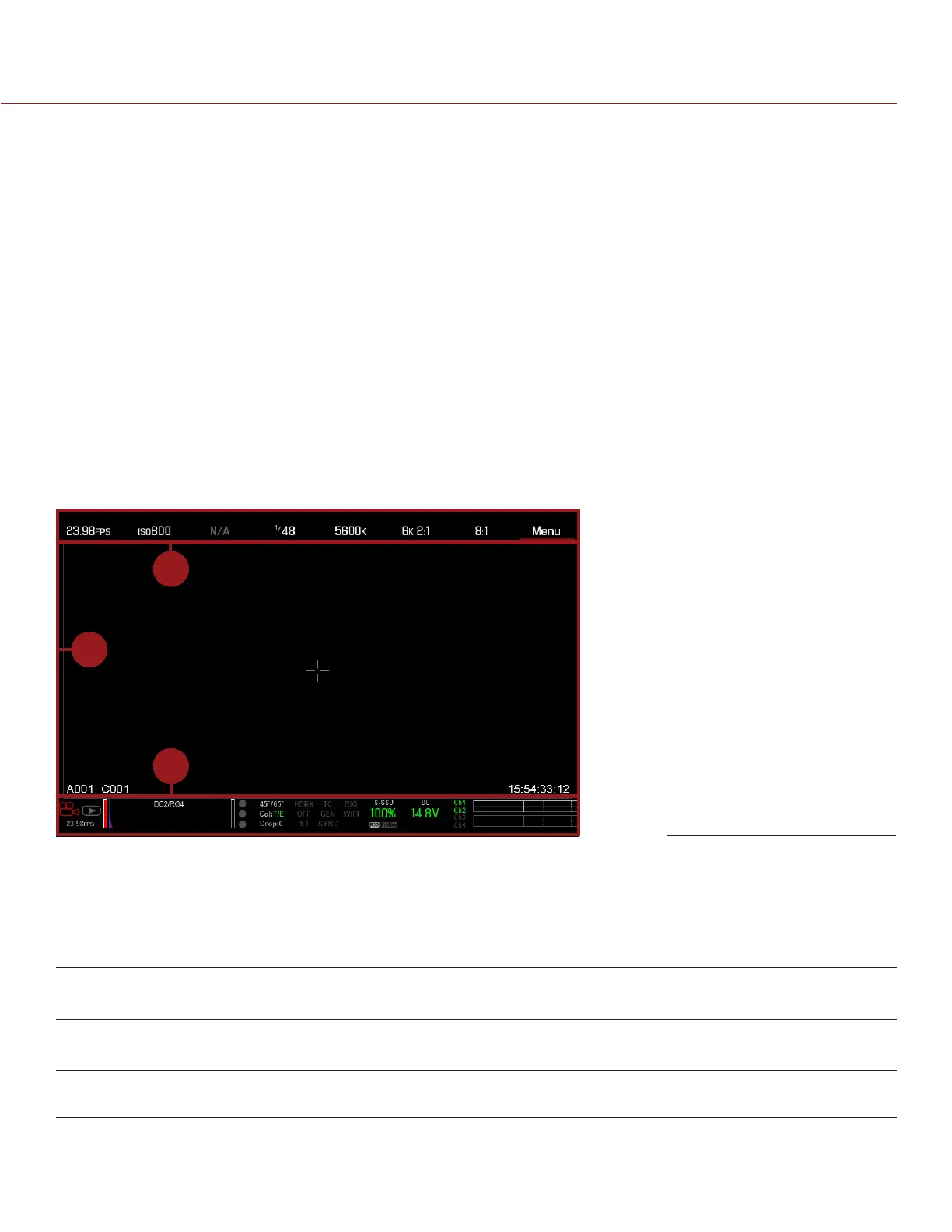

WEAPON GUI MENU INTRODUCTION
2
1
3
This section describes the structure and layout of the WEAPON graphical user interface (GUI) that overlays the
video monitor signal. Advanced GUI menu controls enable convenient access to menus, overlays, and other
critical camera information. Functionality varies based on monitor output type and firmware version.
The WEAPON GUI menu is separated into three (3) main sections:
# ITEM DESCRIPTION
1 Upper Status Row
(Basic Menu)
Easy access to primary camera capture parameters.
Go to “Upper Status Row (Basic Menu)” on page 42.
2 Live Action Area Live camera recording view, overlays, guides, and more.
Go to “Live Action Area” on page 46.
3 Lower Status Row Critical camera parameters, record/playback modes, media and power status,
and audio meter. Go to “Lower Status Row” on page 47.
GUI Control Menu
04
BASIC MENUS
AND CONTROLS
