RED WEAPON 6K - DSMC 2 REDVOLT Expander

RED DSMC OPERATION GUIDE: WEAPON
COPYRIGHT © 2015 RED.COM, INC 955-0116_V6.1, REV-H | 163
DSMC
2
REDVOLT EXPANDER
NOTE: Detailed pinout information for the DSMC
2
REDVOLT Expander is not currently published.
1
2
3
4
5
6
8
7
11
13
9
12
10

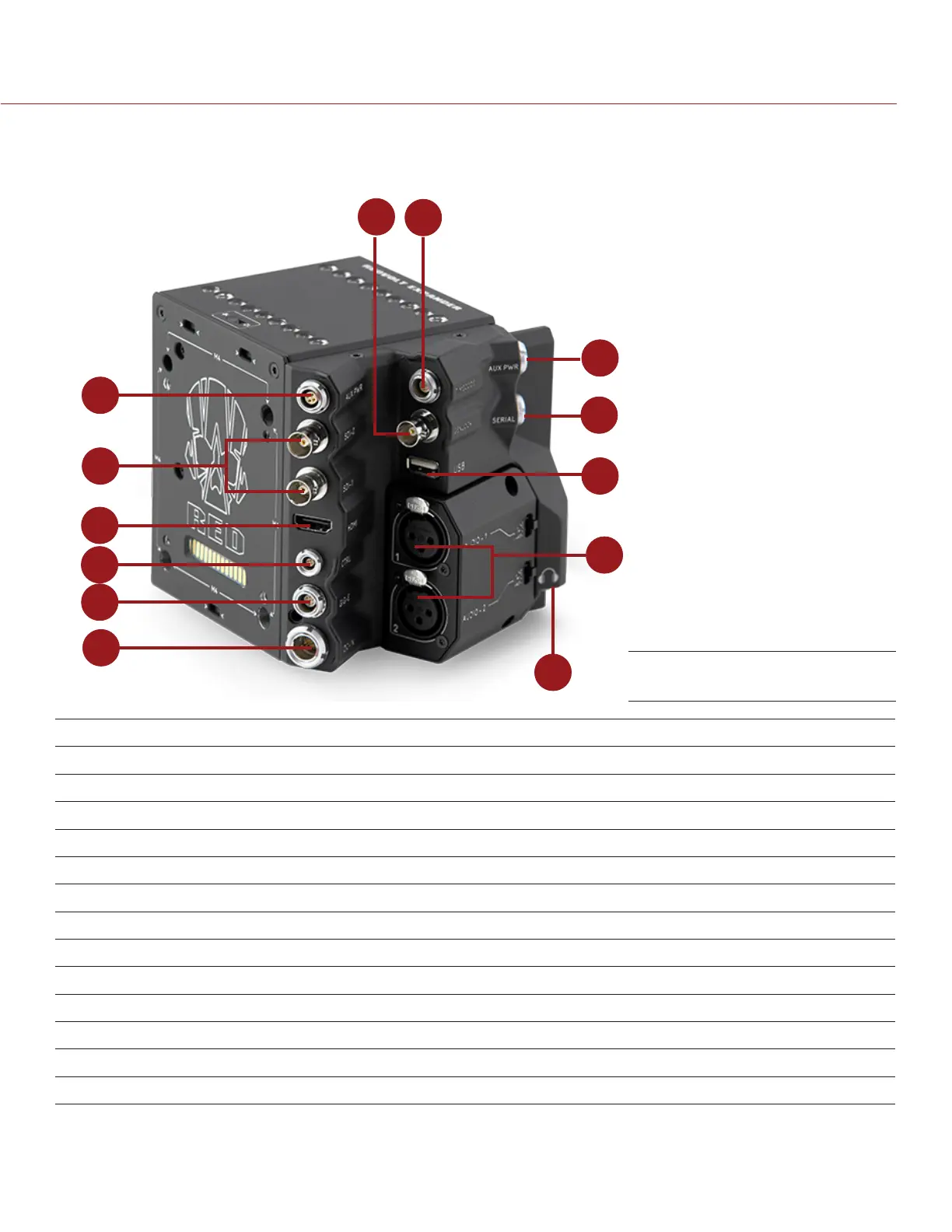

# CONNECTOR CONNECTOR TYPE
1 AUX PWR 4-pin 0B LEMO
2 SDI 1 and 2 BNC
3 HDMI HDMI
4 CTRL 4-pin 00B LEMO
5 GIG-E 9-pin 0B LEMO
6 DC IN 6-pin 1B LEMO
7 GENLOCK BNC
8 TIMECODE 5-pin 0B LEMO
9 AUX PWR 2-pin 0B LEMO
10 SERIAL 7-pin 0B LEMO
11 USB USB 2.0 Type A (power only)
12 AUDIO 1 and 2 3-pin full-size XLR
13 Headphone Jack 3.5mm stereo
