BRAIN
The DSMC BRAIN
®
is the image processing center of the DSMC system and supports power, media, and other
modules.
The only ports on the WEAPON BRAIN are the DSMC
2™
Top Handle port and EVF/LCD ports. A port expander or
power module is required to power the camera. All other input/ouput (I/O) ports are available only via expanders
and other modules. This modular approach allows you to customize your camera and make use of the ports
that are most applicable to your needs.
The RED
®
Tactical Hand Controller (T.H.C.) cannot pair directly to the WEAPON camera. To use the T.H.C. with
the WEAPON, the T.H.C. needs to be connected to the W.M.D. (either wired or wirelessly). For more information
about WEAPON, see the RED 3-Axis System Operation Guide at www.red.com/downloads.
BRAIN CONTROL: PWR/REC BUTTON
Fully press and hold the PWR/REC button for two (2) seconds to turn on/off.
When the DSMC is on, fully press and then release the PWR/REC button to toggle record start/stop.

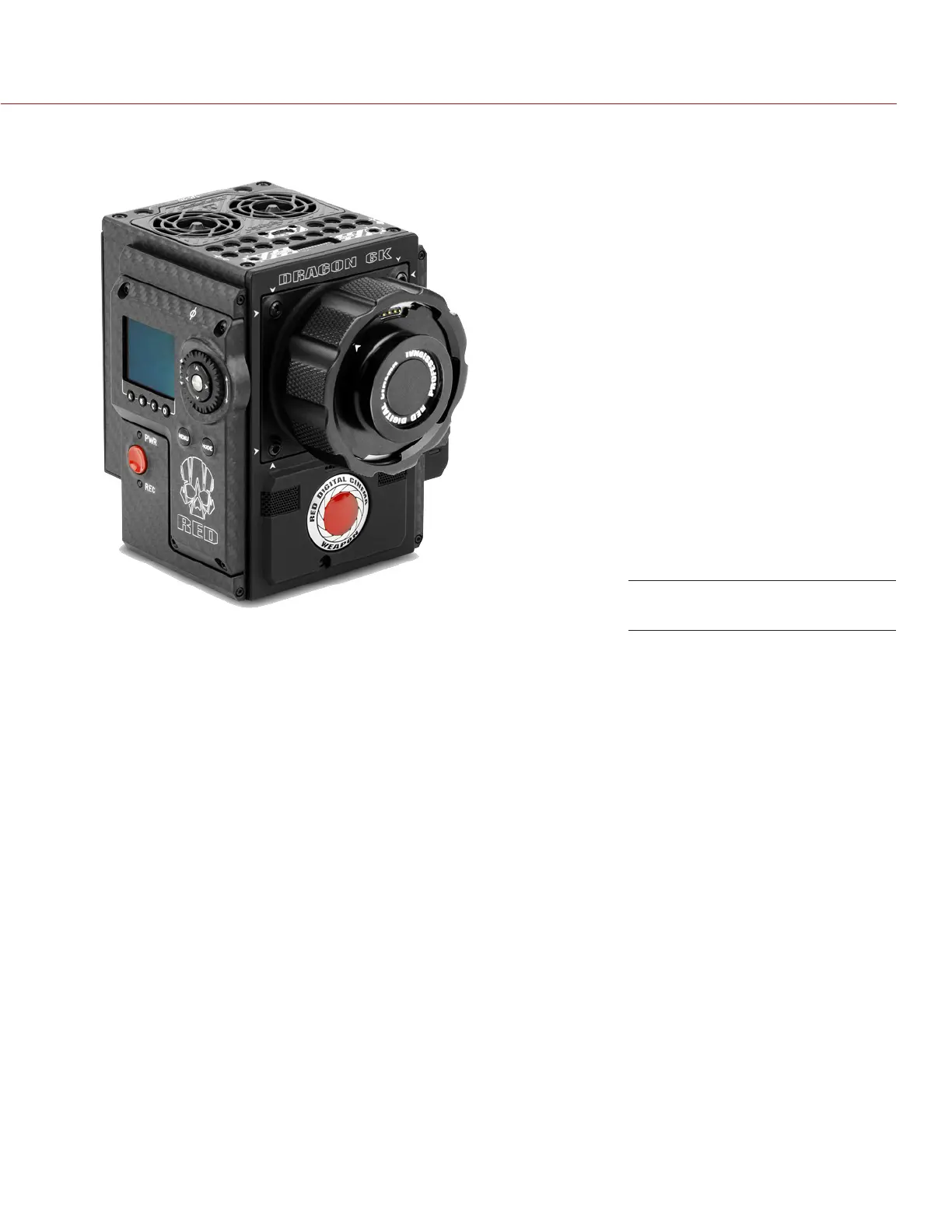

WEAPON (Carbon Fiber)
