INSTALL THE FOCUS HOOK
For more information on the focus hook storage location and mounting point, go to “BRAIN Connectors, Focus
Hook, and Back Focus” on page 18.
REQUIRED TOOLS: 1.5 mm hex key, slotted screwdriver
1. Remove the M3x0.5 x 3 mm set screw from the focus hook mounting point on the media bay using a
1.5 mm hex key.
NOTE: Store the screw in a safe location, or install it in the focus hook storage location after you remove
the focus hook in Step 2.
2. Remove the focus hook from the focus hook storage location on the media bay using a slotted screwdriver.
3. Tighten the focus hook into the focus hook mounting point on the media bay using a slotted screwdriver.
WARNING: DO NOT OVERTIGHTEN.

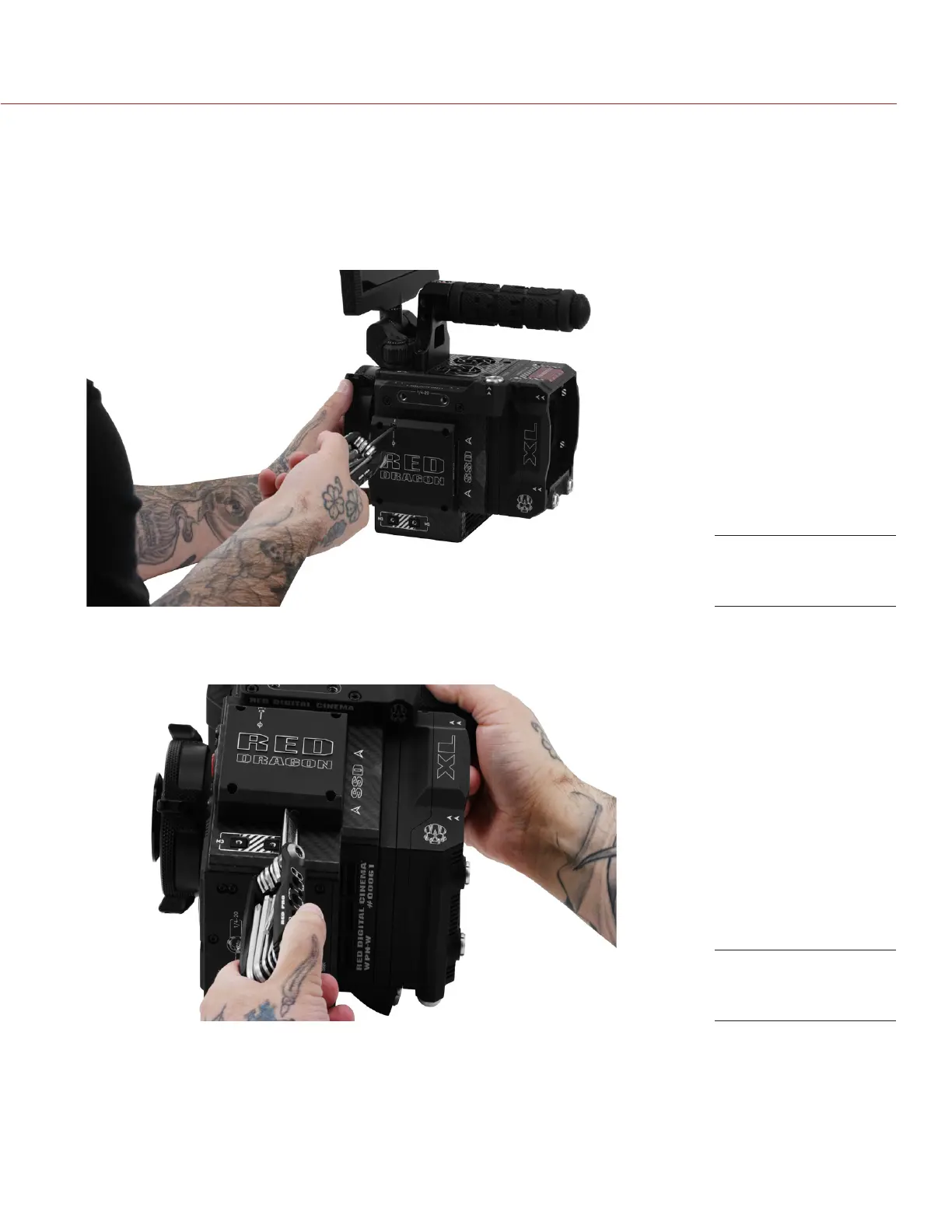

Remove the Set
Screw
Remove the Focus
Hook
