Regency E33-NG10 - Minimum Fireplace Opening

14 | E33-10 FPI Direct Vent Gas Insert
|
14
installation
A
B
C
Max Lintel Bar Depth
A
Height
B
Depth
C
Width (Rear)
D
Width (Front)
E
Width
F
Front Depth
Prior to Taper
G
Low Prole Faceplate
with Spacer
8" 24 3/16" 16 3/4" 25" N/A 32 1/4" N/A
Low Prole Faceplate
without Spacer
9 1/4" 25 1/2" 18" 25" N/A 35 1/4" N/A
Vignette faceplate
with Spacer
9 1/2"
24" 16 3/4" 25" N/A 32 1/2" N/A
Vignette Faceplate
Without Spacer
12" 25 1/2" 19 1/8" 25" 34 5/8" 35 3/4" 2"
MINIMUM FIREPLACE OPENING

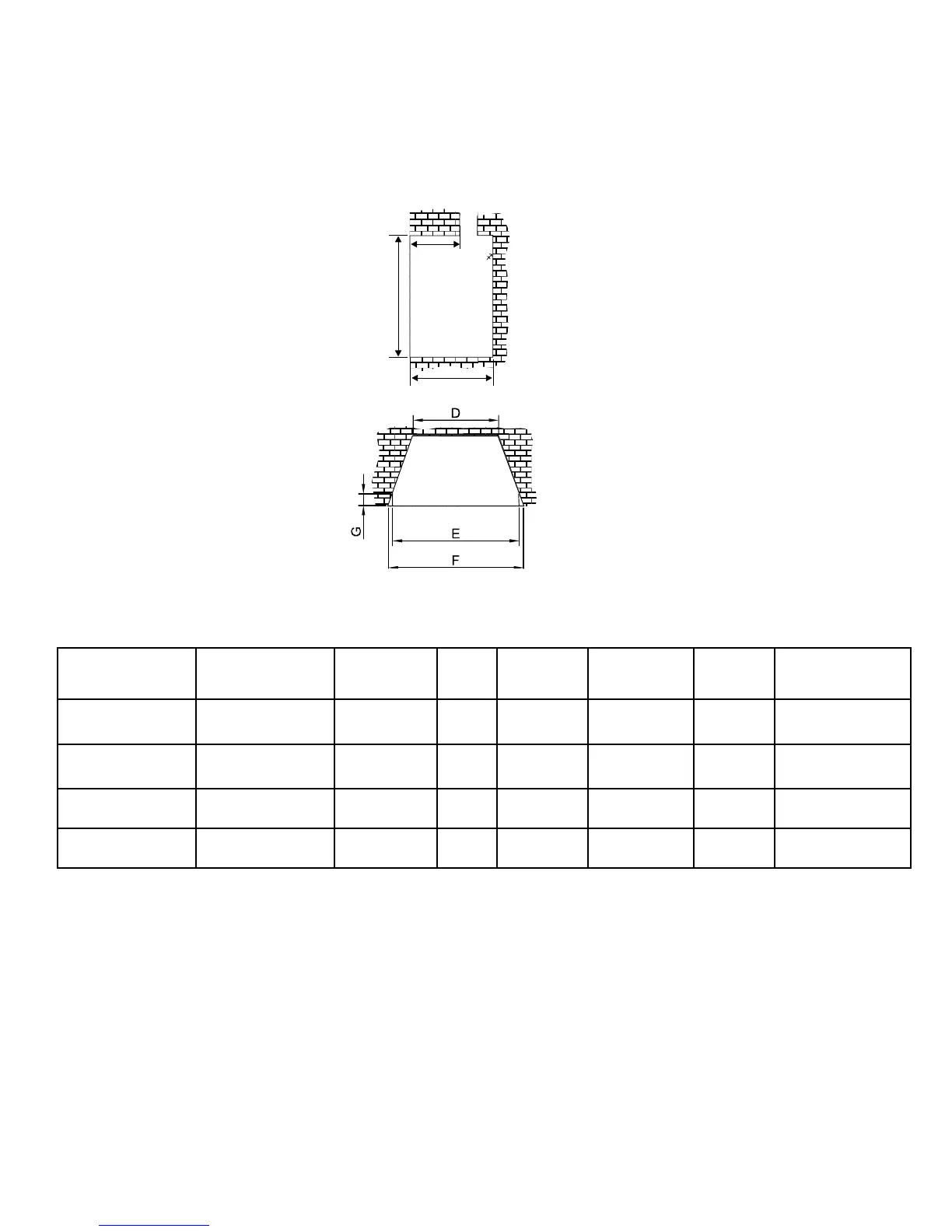

The minimum replace opening for the Regency gas replace insert is shown in the following diagram and the table:
